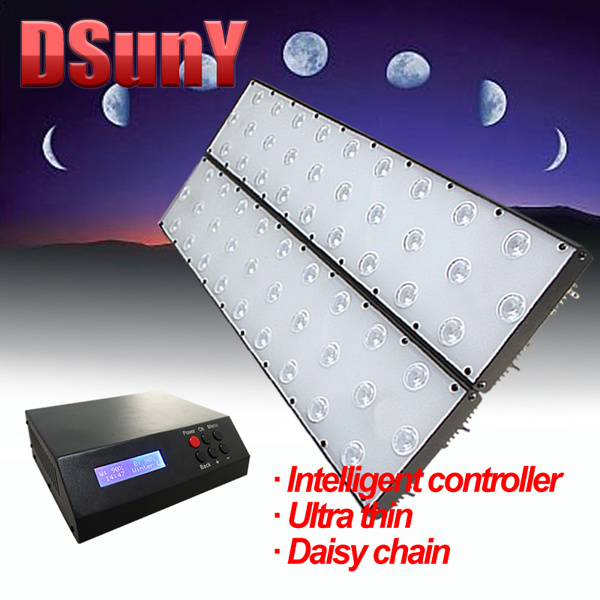

Are you tired of noise, shadow in tank corner, manual switch daily, and low energy efficiency by current aquarium lights?
UlThin™ -Series have them all solved!
L No any fan noise and save on electrical bill
L Full tank coverage with sunrise/sunset/lunar cycle simulation
L Flexible collection of 1, 2 and 4 lights chain with 1 controller to satisfy different tank sizes
APPLICATIONS TANK
* Reef SPS/LPS/ Soft Corals
* Marine Fish with living rock system
* other Marine tank
ADVANTAGES
Why "best cover any shape tank and no shadow"
Three flexible choices of 1, 2 and 4 lights chain with 1 controller and adjustable rail kit to satisfy any kinds of tanks.
Why "No any noise, No fan energy consumption"
Revolutionary heat solution with high quality Bridgelux BXCE/BXCD LED and 603# aluminum make fan unnecessary! Not only no noise but also save 12% energy consumption.
Why "friendly use"
Automatically simulate noon sunlight/ moon sunlight/ 4 seasons sunlight / lunar cycle.
Manually program 24H light intensity and on/off
Why "high efficiency and long lifetime"
Intelligent digital power technology run accurately at the best efficient and long life current point (530-550mA) of 3W Bridgelux LED.
Why "beautiful profile"
L crystal acrylic panel
L Ultra Thin
L Plug in&out
L LED display screen for User Interface
CHOICE US
L Have our own independent R&D department which best supports customization
L Pass the CE, FCC, RoHS, authentication
L High quality control and each light must do 48H test and then a final test will be done if all the product characters meet to the original input
L Raw materials are from domestic and foreign well known brand manufacturers
L Quality assurance 3 years, 3 years warranty period for non-human fault manufacturer free replacement and maintenance.
UI Menu (Premium Version)
Set System Time (Time back up)
Moon Light Mode
Noon Light Mode
Spring Day Mode
Autumn Day Mode
Summer Day Mode
Winter Day Mode
Lunar Cycle on/off
Set 24H White
Set 24H Blue
Key Lock
Factory Restore
Product No |
UT1-RC-P |
UT2-RC-P |
UT4-RC-P |
UI Function |
1,Four season mode
2,Moon,Noon mode |
3,Set 24 Time-Points for White
4,Set 24 Time-Points for Blue |
5,Lunar cycle simulation
6,Real-time clock |
Controller No |
IDP60 Premium |
IDP120 Premium |
IDP200 Premium |
Fixture(s) No |
URC40 |
URC84+URC40 |
URC88+URC84+URC44+URC40 |
Input Voltage |
100~160V or 180~240V |
100~160V or 180~240V |
100~160V or 180~240V |
Input Current |
0.1~1A |
0.1~1.5A |
0.1~3A |
Theoretical power |
28pcs×3W |
56pcs×3W |
112pcs×3W |
Power |
0.1~60W |
0.1~120W |
0.1~200W |
Power Efficiency |
>93% |
>95% |
>96% |
LED brand |
Bridgelux 3W |
Bridgelux 3W |
Bridgelux 3W |
White LED |
14pcs, 12000K CCT |
28pcs, 12000K CCT |
56pcs, 12000K CCT |
White luminous |
0~1800lm ±10% |
0~3500lm ±10% |
0~7000lm ±10% |
Blue LED |
14pcs, 450~460nm |
28pcs, 450~460nm |
56pcs, 450~460nm |
Blue lumnious |
0~500lm ±10% |
0~1000lm ±10% |
0~2000lm ±10% |
Optical uniformity |
>93% (30cm) |
>93% (30cm) |
>93% (30cm) |
Luminous decay(90%) |
30000hrs |
30000hrs |
30000hrs |
Lifespan |
50000hrs |
50000hrs |
50000hrs |
Standard lens |
60 degree |
60 degree |
60 degree |
Optional lens |
30/60/90 degree |
30/60/90 degree |
30/60/90 degree |
Fixture(s)dimension |
58×12×3.6 cm |
2x( 58×12×3.6 cm ) |
4x( 58×12×3.6 cm ) |
With Rail kit (L×W) |
(60~90)×12cm |
(60~90)×25cm
(120~150)×12cm |
(120~150)×25cm
(250~300)×12cm |
Tank size(L×W×H) |
(60~90)×(20~40)×120cm |
(60~90)×(40~60)×120cm(120~180)×(20~40)×120cm |
(120~180)×(40~60)×120cm(230~300)×(20~40)×120cm |
Hand kit |
1pcs×35cm |
2pcs×35cm |
4pcs×35cm |
Fixture(s)weight |
1.7Kg |
3.4Kg |
6.8Kg |
Controller weight |
1.1Kg |
1.3Kg |
1.5Kg |
Total packing weight |
4Kg |
6Kg |
10Kg |
DSunY Electronic Science and Technology Co., Ltd is committed to providing customers around the world with innovative LED aquarium and grow light technologies.
We have established high quality R&D team who is specialized in software, electronic hardware and heating design. So we have become a professional manufacturer. Our products are all approvaled by FC, RoHS and CE certifications.
In addition, DSunY cooperates with top-tier industry chain partners and university to build laboratories focused on developing
technological breakthroughs.
The company's broad range of expertise and flexibility allows us to satisfy the demands of global agent and assist them in their pursuit of innovation.
Looking forward, DSunY will continue to make the development of LED aquarium/grown light industry. The company is committed to
overcoming challenges and driving innovation in the ever-changing landscape.
Factory information:
Business Type: OEM/ODM factory
Workshop: 600 square meters
Products range: LED grow light and LED aquarium light
Existing Market: Western Europe, North America, Australia, Asia etc.
No. of workers: 100 people
R&D dept.: YES
QC&QA dept.: YES
Certificates: ISO 9001, FC, CE, RoHS
Monthly Capacity: 80, 000-100, 000PCS
