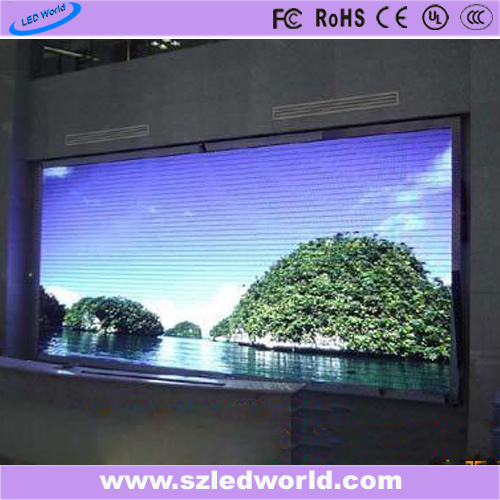

Home LED Light Products Manufacturer High Quality Indoor LED Display with UL Certificate!

Manufacturer High Quality Indoor LED Display with UL Certificate!

Manufacturer High Quality Indoor LED Display with UL Certificate!
Price: US $ 1350-1800/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Keywords:  LED  Display,Outdoor LED display screen , Outdoor led screen, Outdoor LED panel, Outdoor die-casting aluminum LED screen.

Product Description
1,Standardized size and light&thin structure: adopts strenght metal material, with pretty rigidity, light weight and high accuracy.High picture quality, average uniformity 5%, max uniformity 1%; high refresh frequency and gray level. Short lead time.
2,High load-bearing capability, fast assembly, free shaping, no deformation under high temperature and low temperature working surrounding.
3,Low heat, low noise, low radiation: through the advanced structure in-conducting designing, keep very silent working status. EMC passed
4,Adopts strong electricity hot-plugs, no Spark discharge during hot-plug in and hot-plug out. Absolutely waterproof, tamper-proof and anti-corrosion
5,Module easy maitenance, no light reflection from mask, anti-UVR and ensure no fading for 5 years. Contrast ratio: 1000:1; Flatness of cabinets: <0.5mm. Power effective ratio more than 88%.
6,Double backup data can ensures that the screen can work in high efficiency, stability, security situation.

Technical Specifications

ItemIndoor Fixed LED display Series
Pixel Pitch(mm)6mm
Pixel density(pix/m2)27777
LED Type3528
Viewing AngleH:140°,V:140°
Color Depth(nits)1500
Drive Method1/16
Color Depth16384
Refresh Rate(Hz)1200
Module Size(mm)192×192×13
Cabinet Size(mm)768×768×133
Cabinet MaterialIron Sheet Metal
Cabinet weight(kg)32
Voltage110/240V
Average.power(W/m2)120
Max.power(W/m2)350
IP GradeIP31
Operating temperature/humiditytemperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/humiditytemperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)≥50000
Compliant StandardCE,FCC,RoHS,ETL,CCC









Prod Model: LW-FI 6
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof LED Panel: Permanent Installation
RGB: SMD3535
Good Color: Save-Energy
Drive Method: 1/16
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Certification: CCC
Pixel Pitch: 6mm
Average Power Consumption: 260
Pixel Density: 27777
Application: Information
Shenzhen LED World Co., Ltd has focused on export business since 2009, who specialized in supplying the solutions of LED display screens, LED signs for worldwide market. The products series include small pixel pitch LED display, rental LED display screen, advertising LED display, stadium LED sign, LED ball screen, LED floor screen, creative LED display screens and so on. The above products are widely used in advertising media, public facilities, sports, entertainment, military, traffic and other industries, exported to USA, Mexico, Greece, Spain, Italy, UK, Thailand, Uganda, Nigeria, Russia, India, Turkey, Thailand, Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.

LED WORLD depends on the excellent outstanding R&D technicians, skilled & experienced oversea sales team, who adhere to" customer first, quality first, reputation first" as operating principle, making our future is better and better day by day.

Warmly welcome you visit our company to innovate and win glory together.
