Features:
1. The cabinet thickness is only 90mm, the cabinet weight is only11.6kgds/tile.
2. Cost-effective, high contrast, wonderful color clearer and exquisite.
3. Adopt Die-casting aluminum housing, ensure the flatness of the screen and seamless among panels.
4. Neutrik connectors are adopted, fast assembly, durable.
5. Back cover built with PSU and receiver card can be removed and replaced.
6. Different pitches P4.8, P5.14, P5.76, P6 for options; The cabinets can be reusable.
7. Support hanging and stacking, suitable for both fixed install and rental activities.
8. Wide viewing angles, the images visible in more than 140 degree viewing angles

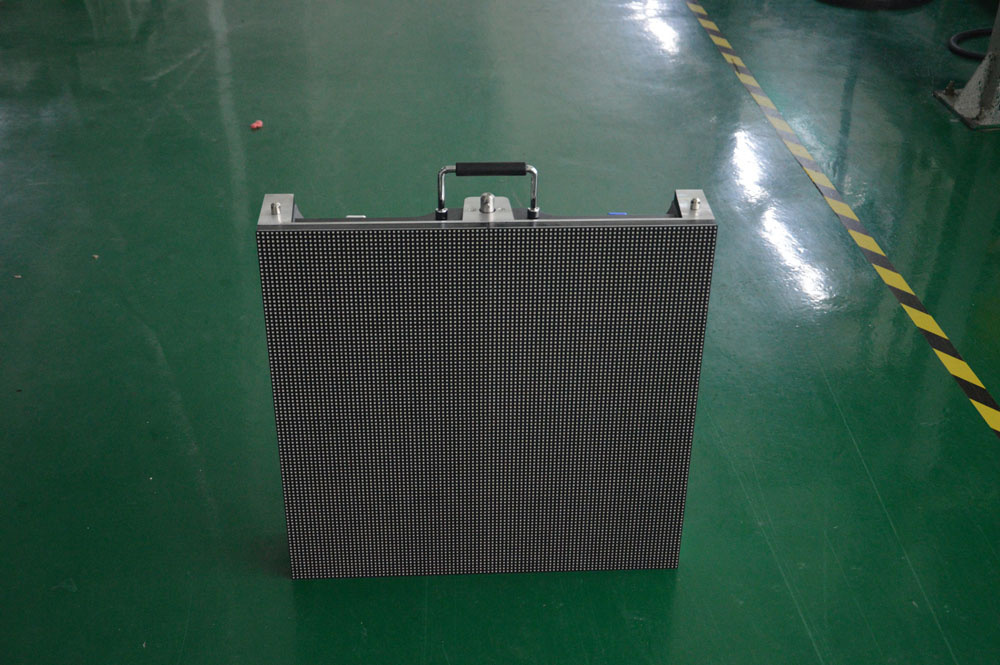

Photos
LED System Diagram
| NO. | Item | Parameter |
| 1 | Model | P5.76 |
| 2 | Pixel pitch | 5.76mm |
| 3 | Pixel configuration | 1R1G1B |
| 4 | LED type | SMD3528 |
| 5 | LED Module size | 288*288mm |
| 6 | Module resolution | 50*50 |
| 7 | Panel resolution | 100*100 |
| 8 | Panel size | 576*576mm |
| 9 | Panel depth | 90mm |
| 10 | Density | 30141dots/m2 |
| 11 | Brightness | ≥1600 NIT |
| 12 | Scan method | 1/10 |
| 13 | Best view distance | ≥5.5m |
| 14 | Max. power consumption | 300W |
| 15 | Ave. power consumption | 150W |
| 16 | Weight per panel | 11.6kg |
| 17 | Refresh rate | ≥960 Hz |
| 18 | View angle | Vertical: 120°, Horizontal: 140° |
| 19 | Grey scale | 65536 |
| 20 | Colors | 281 trillion |
| 21 | Color temperature | 7500K |
| 22 | Frame frequency | ≥60Hz |
| 23 | Out of control pixel rate | <1/10000 |
| 24 | MTBF | >5000 hours |
| 25 | Lifespan | 50000 hours |
| 26 | Control mode | Synchronous display with control PC by DVI |
| 27 | Working voltage | AC 100/200v 50-60Hz |
| 28 | Control distance | Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
| 29 | Operation temperature | -20 to +50 |
| 30 | Operation Humdity | 10% to 80% |
| 31 | Protection level | IP40 front, IP21 rear |
