Home LED Light Products Light Guide Panel for Large LED Super Slim Light Box

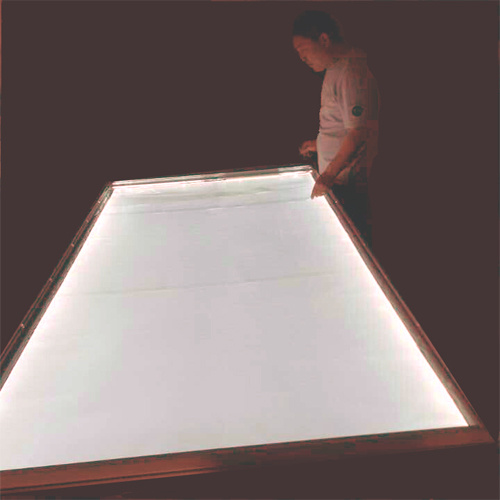

Light Guide Panel for Large LED Super Slim Light Box

Light Guide Panel for Large LED Super Slim Light Box
Price: US $ 3850-3950/Ton
Trade Terms: FOB,CIF,EXW
Min Order: 1/Ton
Pay Type: T/T
LGAC2 is scattering light guide panel (LGP), made of high quality acrylic. It is direct applicable and free will processable light guide without demanding any surfacial treatment such as engraving or screen printing. As a convenient and low cost solution, LGPS1 is widely applied in LED light box and signage. The maxim lighting width of 1800mm is especially advantageous for large size LED edge lit light box.

Technical and performance information
Raw material: Nanometer particle scattering light guiding acrylic sheet based on high quality raw material.
Maxim lighting width:1800mm, good uniformity and stability
Advantages: No need of laser engraving and ink printing, freewill to cut, convenient solution for LED edge light panel and signage
Original size: 1250X1850mm, 1250X2450mm, 1550X3050mm, 2050X3050mm.
Applicable temperature: -40~100 degree
Thickness and recommended lighting width
  Thickness (mm)Lighting width (mm)
          2~30~600
            4600~1200
            61000~1500
            81000~1800
Application: LED edge light panel, slim light box, and large size LED edge lit light panel.







Prod Model: LGAC2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Appearance: Translucent
Maxim Lighting Width: 1800mm
Uniformity Of Luminance: 80%
CRI: >75%
Life Span: 10 Years
Material: Acrylic
Nanjing Jayan Materials Technology Co., Ltd., established on April 2011, is a technology company located in Nanjing City, Jiangsu Province, China.

With our professional background and knowledge on polymer chemistry and processing, polymer optics, as well as LED electronics, we have been engaged on business fields including acrylic sheets and polystyrene sheets, light guide and light diffuser, LED light and luminaries, and plastic processing machinery.

Up to now, we have annual production capabilities of 3500 tons cast acrylic sheets, 3000 tons extruded acrylic sheets and 3000 tons extruded polystyrene sheets. Based on the production capability, we provide light guide panel and light diffusion panel both of acrylic and polystyrene for various application. With leading technology in polymer chemistry and polymer optics, we design and offer various polymer products for LED light according to customized requirements.

From May 2014, we have started business of LED light and luminaries based on the innovative technology named "Digital independent current constant driving". A Single Chip Microcomputer (SCM) is applied to manage each LED working independently, which makes LEDs much more stable and energy saving than conventional LED lighting. A series of special LED lights have been developed successfully upon this novel technology, including LED backlights, LED panel light, and LED ceiling lamp.

Having accumulated abundant experience of polymer processing, we also provide plastic processing machinery in laboratory size by OEM.

We are keeping endeavor on research and development, and aspiring to be a leading technology company in fields of performance polymers and LED lights.
