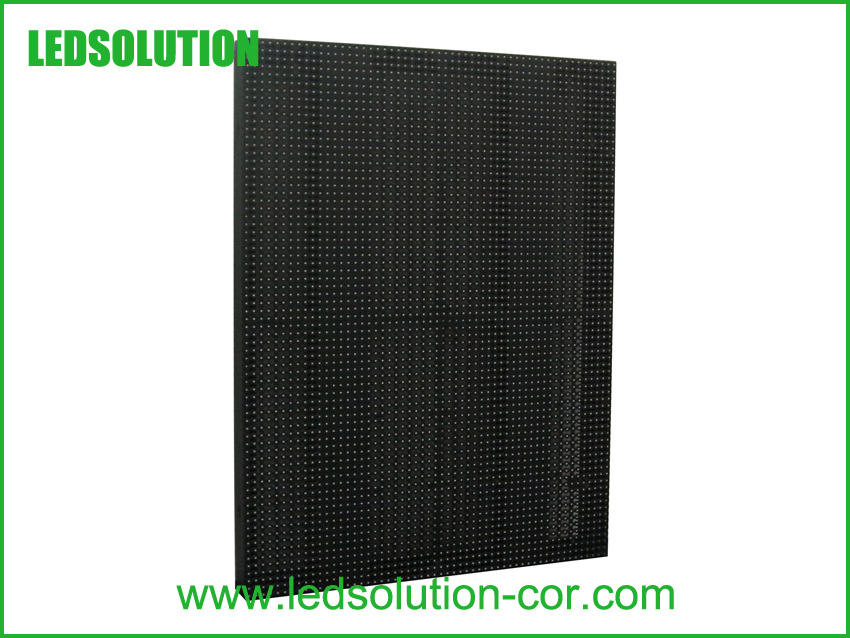

Ledsolution Indoor Mesh LED Display

Ledsolution Indoor Mesh LED Display
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Square Meter
Pay Type: T/T
LED curtains, LED curtain display, curtain LED display, Stage Curtain LED Display, Stage LED Display, indoor LED display screen, outdoor LED display, LED display for stage background, stage background LED display screen:

Vorhang LED-Bildschirm, Cortina de pantalla LED

Features of the Curtain LED Display:
*Weatherproof to IP65 standards
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA
Main Application: Stage and outdoor fixed installation

LEDSolution LED Display
ParameterUnitValue
Pitchmm10.5625
Brightnessnits800
Color temperaturedeg. K6,500
Viewing angle – Horizontal (50% brightness)deg.120(-60~ +60)
Viewing angle – Vertical (50% brightness)deg.120(-60~ +60)
Panel weightkg14
Panel widthmm591.5
Panel heightmm760.5
Panel depthmm60
Panel areasq. m.0.45
Panel material
Epoxy paint coated steel mesh
Operating temperature rangedeg. C-30 to +60
Humidity operatingRH10% ~ 90%
Pixel type and configurationR/G/B3528 3in1 SMD
Resolution per panel
56x72
Dot per panel
4,032
Dot per sq. meter
8,963
LED per sq. meter
8,963
Recommended minimum viewing distancem8
Drive Mode
Constant current drive
Colors
281 Trillion
Grey scale (linear)Levels65,536 levels per color
Brightness controlLevels100
Contrast ratio
1,000:1
Processing depthbit12
Video frame rateHertz60
Display refresh rateHertz180~3,000
Input voltage (nominal)VAC110 to 240
Input power frequencyHertz50 to 60
Input power (max)Watts/ cabinet200
Input power (typical)Watts/ cabinet80
Lifetime (50% brightness)Hours≥100,000
Red wavelength (dominant)nm620~625
Green wavelength (dominant)nm525~530
Blue wavelength (dominant)nm470~475
Panel input format
DVI,MPG,AVI,WMV,RM etc.
Mounting System
Hanging/Fix Installation

Prod Model: LS-IM-P10.5265-0.5915mx0.7605m
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: 800nits
Color Temperature: 6,500deg. K
Viewing Angle: 120/120
Panel Size: 591.5X760.5mm
Resolution Per Panel: 56X72
Panel Material: Epoxy Paint Coated Steel Mesh
Mounting System: Hanging/Fix Installation
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Configuration: 1R,1G,1B
Scanning Mode: 1/4 Scan
Application: Stage Performance
IP Rating: IP43
Certification: CE
Pixel Pitch: 10.5265mm
Pixel Density: 8963DOT/M2
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
