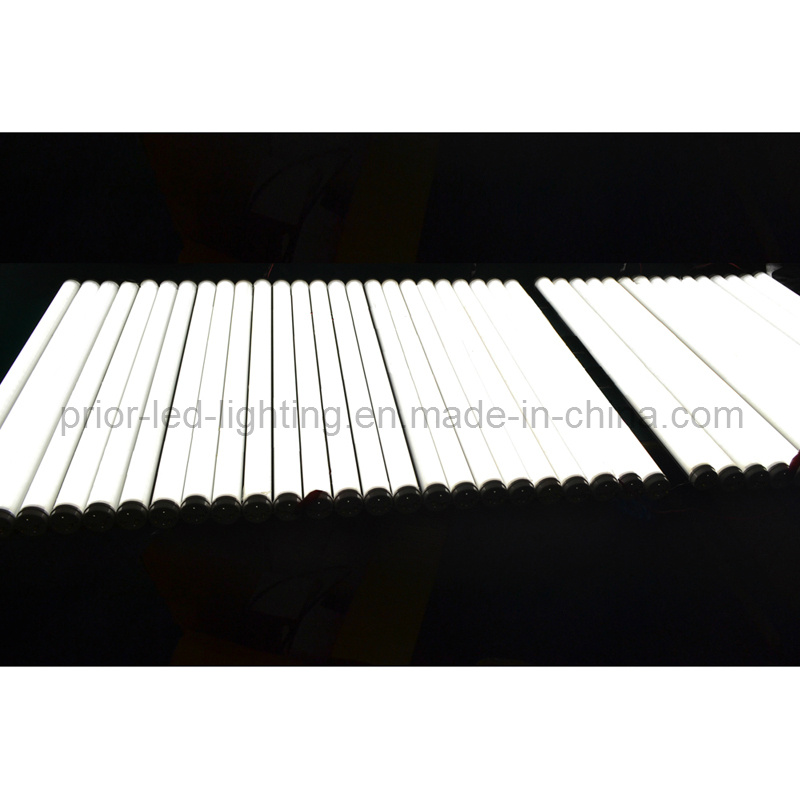

LED Fluorescent Tubes T8 60cm/90cm/120cm/150cm R/G/B/w/ww/*
Features:
Much longer life than CFL
-tube: Min. 10 years (suppose that light is on 8 hours per day)
-70%~80% Energy-saving over Fluorescent tubes
-Solid State, high shock/vibration resistant
-Work without ballast
-No RF interference
-No fickering or buzzing
-Quick and easy installation to minimize retrofit costs
-Instant soft-start
-Minimum maintenance costs
-Produce little Heat
-No Mercury and other hazardous materials, fully RoHS-compliant
-Continuous operation for white LEDs (10 years for other colors)
-Rated to operate from -40° F to 122° F [-40° C to 50° C], perfect for environmentswith extreme climates
-Epistar+Intermatix LED packaging solution, no patent trouble
Technical specifications:
Standard length: 60cm, 120cm and 150cm
Wide voltage input: 85-265V
AC277V AC/DC24V
PF(power factor)0.86-0.92 Power efficiency > 86%
CT(color temperature) range
Commercial white: 4500-5500K
Cold white: 5500-6500K
Usage notes:
1. Standard warranty period 3 years.
2. Only accredited electrical staff can disassemble and assemble X-tube.
Protective measures should be taken while installation.
3. Electronic ballast and starter MUST be taken away from the existing fixture of
4. Idoor design. Never install tubes in humid environments.
WARNING: Not for use in fully enclosed fixtures. Non submergible. Not water tight.
Operate in fixtures that provide the free flow of air around the lamp heat sink.
Please contact us for information regarding how to best ventilate enclosed fixtures.
Each tube is packed seperately in a plastic pipe. Anti-static sponge end caps are used to protected the metal pins. Clear LED components can be seen from the front(brightest light output)
Disclaimer to above matrix: The data of the light output is only from Prior LED Tech Ltd test reports. It may differentiate another result or source if tubes are tested through other equipments or test methods.
Length |
L=0.6M |
L=1.2M |
L=1.5M |
Distance |
1M |
2M |
3M |
1M |
2M |
3M |
1M |
2M |
3M |
Transparent |
D 321Lux |
D 104Lux |
D 48Lux |
D 570Lux |
D 185Lux |
D 97 Lux |
D 765Lux |
D 247Lux |
D 135Lux |
W 302Lux |
W 104Lux |
W 52Lux |
W 675Lux |
W 195Lux |
W 101Lux |
W 745Lux |
W 260Lux |
W 138Lux |
Wave |
D 342Lux |
D 82Lux |
D 43LUX |
D 586Lux |
D 189Lux |
D 100Lux |
D 734Lux |
D 238Lux |
D 117Lux |
W 304Lux |
W 101Lux |
W 51Lux |
W 598Lux |
W 184Lux |
W 95Lux |
W 736Lux |
W 245Lux |
W 124Lux |
Frosted |
D 265Lux |
D 75Lux |
W 35Lux |
D 459Lux |
D 149Lux |
D 76Lux |
D 552Lux |
D 184Lux |
D 92 Lux |
W 264Lux |
W 69Lux |
W 34Lux |
W 459Lux |
W 359Lux |
W 70Lux |
W 506Lux |
W 176Lux |
W 95Lux |
Electronical Specification:
Mode |
PR-FT8-3528PW-144-10W |
PR-FT8-3528PW-216-15W |
PR-FT8-3528PW-288-18W |
PR-FT8-3528PW-360-22W |
Color |
Pure White 980LM |
Pure White 1350LM |
Pure White 1900LM |
Pure White 2350LM |
Light source |
smd3528 |
LED Quantity |
144pcs |
216pcs |
288pcs |
360pcs |
Input Voltage |
AC85-265V |
AC85-265V |
AC85-265V |
AC85-265V |
Power |
9Watts 14Watts 18Watts 25Watts |
Beam Angle |
5000-6500k |
IP Class |
IP50 |
Dimension |
Φ 30*600cm |
Φ 30*900cm |
Φ 30*120cm |
Φ 30*150cm |
