| Price: | US $ 5-10/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
Basic Parameter | |

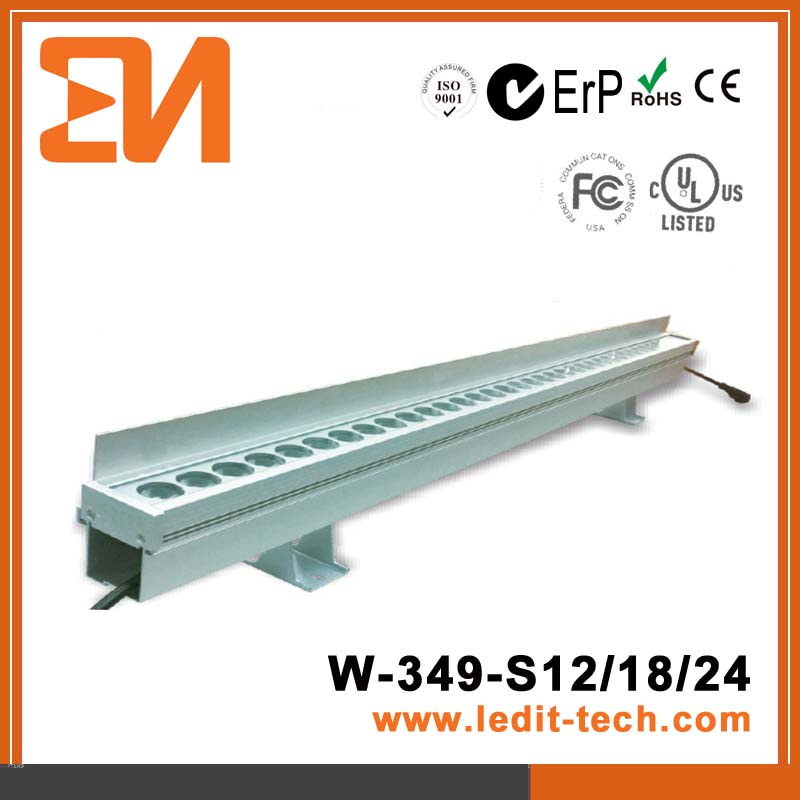

| Model | H349-S12/18/24-RGB |
| Color Grey | RGB 256 grey scale each, 16777216 kinds of color in total |
| Light Source | 12/18/24 pcs High Power LED |
| LED Chip | Epistar/ Cree |
| Wave Length | 625nm±5nm, 525nm±5nm, 470nm±5nm |
| Lifetime | 50,000Hours |
| Material | Tempered glass cover / Aluminum Alloy |
| Drive Mode | DC/ DMX512 |
| Weight | 2.2kg/pc |
| Environment Parameter | |
| working Temperature | -20°C~50°C |
| Storage Temperature | -40°C~70°C |
| Ingress Protection | IP66 |
| Controller | |
| controller | SS main controller |
| Sub-controller | SS Sub controller ( 8 port output, each output can support 512pixels) |
| Electricity | |
| Working Input Voltage | DC 24V / AC 220V |
| Max Power Consumption | 12W / 18W / 24W /pc |
| Average Power Consumption | 7.2W / 10.6W / 14.4W /pc |
| Performance | |
| Brightness | 65 lm/w |
| Beam Angle | 12°x 48°/10°x 60° |
| Modle No. | Voltage | Power | Color | Source | Control | Lux |
| 349-S12-W | AC220V | 12W | White | 12pcs XP-E LED | Always on | 1200(lm) |
| 349-S18-W | AC220V | 18W | White | 18pcs XP-E LED | Always on | 1800(lm) |
| 349-S24-W | AC220V | 24W | White | 24pcs XP-E LED | Always on | 2400(lm) |
| Prod Model: | H-349-S12-RGB |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Size: | 29.4X51.7X1000mm |
| Ingress Protection: | IP66 |
| Lift Time: | 50000 Hours |
| LED Chip: | Epistar / CREE |
| Emitting Color: | RGB |
| IP Rating: | IP66 |
| Diffuser: | Tempered Glass |
| Lifespan: | 50000 hours |
| Warranty: | 2 Years |
| Certification: | VDE |
| Electric Current Type: | DC |
| Input Voltage: | 24V |
| Power: | 12W |
| Beam Angle: | 12°X 48°/10°X 60° |
