High quality super brightness LED as light source,high illuminous efficacy, good CRI flexible PCB as substrate, easy for bending, good toughness Constant current IC to protect circuit, cuttable for every 50 mm Designed with two solder pan, convenient for connecting no pollution, green light source, energy-saving low light attenuation, longer lifespan to reach 30,000 hrs

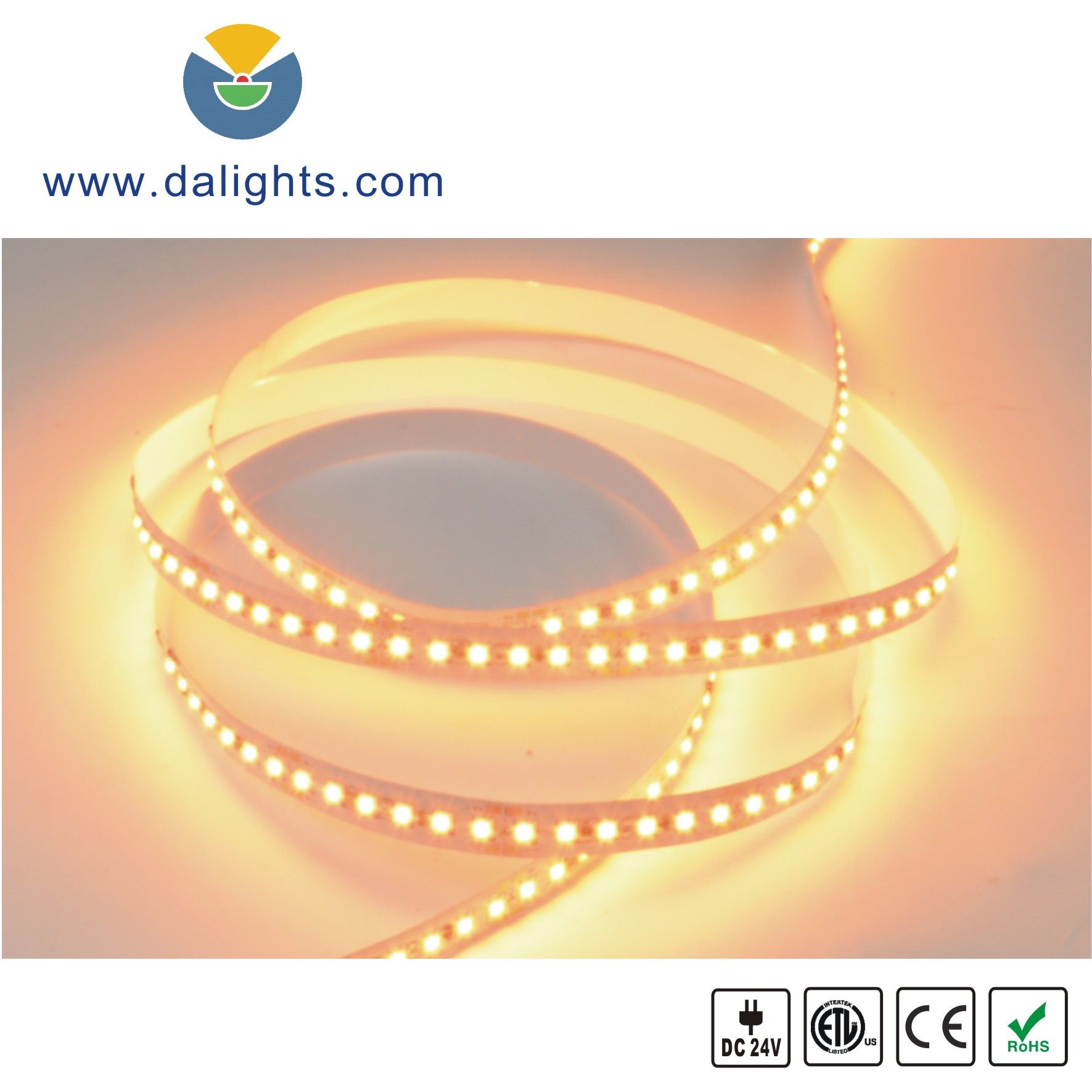

Flex LED is a thin and flexible LED circuit strip, mounted inside a waterproof silicone sleeve. It can be cut every two inches to create the exact length needed. It's low profile allows for a wide variety of cove, millwork, signage, and many other applications.
Specifications:
| Model No. | S33030-120WW-24A |
| LED Light Source | SMD3030 |
| LED Brand | NICHIA/RF |
| Number of LEDs | 120LED/m |
| Light Color | Warm white,cool white,white ,blue, |
| Color Temperature | 2200K-6500K |
| Color Rendering Index | Ra>80 |
| Luminous Flux | 700-3500Lumens/meter |
| Efficacy | 150-240 lumens/watt |
| Beam Angle | 120° |
| Power (Watts) | 8-15w/m |
| Input Voltage | DC24V |
| Input Current | 330mA-625mA |
| LED Spacing | 8.3mm |
| Cut Unit. | 6LED/Group(50mm) |
| Min. Cutting Increment | 50mm |
| Max Loading Length. | 5meters |
| Circuit Type | CurrentControl |
| Dimming | 0-10V,TRIAC, DMX512 |
| Housing | Silicon Tube |
| Standard. | Round with 5 meters |

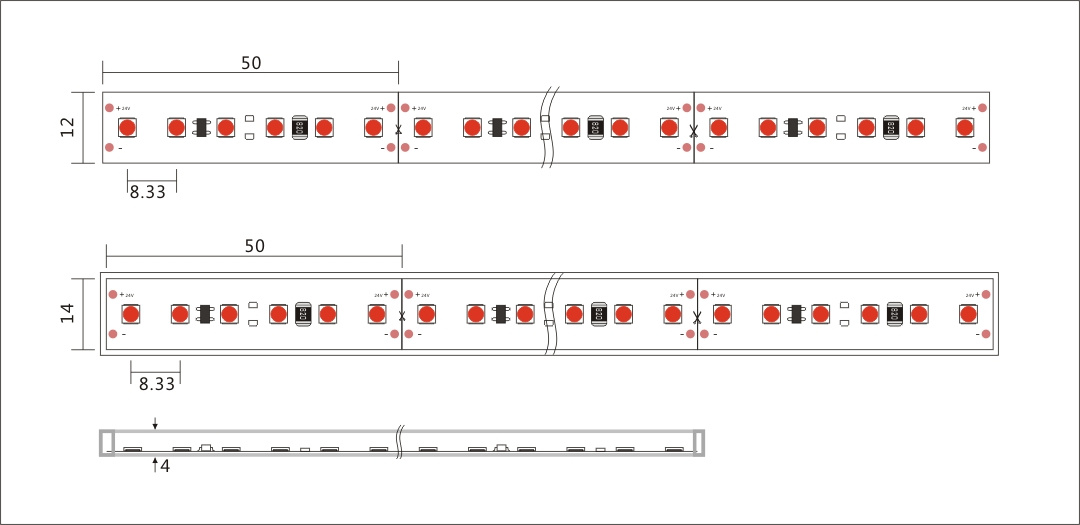

| Dimensions | W12mm*H2mm*L5000mm/W14mm*H4mm*L5000mm |
| Average Lifetime | 50000 hours |
| Warranty | 3 Years limited |
| Rating | IP20orIP65orIP68, depending on your requirement |
| Certification. | CE, GS, RoHS, VDE |
| Weight | 0.18KG/Roll |
| Packing. | 53*24*24CM |
| Production Capacity. | 2000meters/Day |
| HS Code | 9405409000 |
| Origin. | China |
| Export Markets. | Global |
Features: 1. Unique structure, more energy saving, environmental protection, long life.2. Can be cut to size at marked intervals and rejoined by electricians.3. good flexibility for any shape.4. Operating temperature: -20°C~+60°C5. Color temperature: Cool white 6000-6500K and warm white 2700-3200K 6. Available color: red, yellow, blue, green, white, orange, pink, purple, multicolor and RGB.7. Working Voltage:12V/24V DCApplications:Restaurants, lounges, casinos, homes and retail stores;, Decorative and accent lighting;, Downlighting and uplighting features;, Edge lighting glass or acrylic plates;, Lighting art or accent pieces (no UV emissions)., Egress lighting;, Entertainment centers and home theaters;, Trade show exhibits;, Wine cellars;, Under cabinet lighting;, Architectural models and doll houses;, Coin-operated machines for vending and amusement;, Vehicular accent lighting for limousines, RV's and cars;, Yachts and cruise ships;, Arts and crafts;, Lots of other things-use your imagination!
Many of our LED strip products are offered in a waterproof version that has a silicone rubber tube surrounding the strip. , This is one of our best selling product lines for three reasons: 1) it looks great and has superior quality, 2) it is very easy to work with, including excellent dimming and controls, and 3) it is a great value. , LED linear lighting is one of our specialties. We have a lot of experience with LED strip projects, and that will inure to your benefit. This is LED linear lighting, the easy way, and we can make it work with your DMX wall washers and other devices. No need to look further. Give us a call for technical advice or easy-to-understand documentation!, Packing:, 5 meters each lap, each one meter with two card buckle, each circle with two plug, 30 laps per boxCarton size: 53 * 24 * 24 cmDalights abstract:, 1) we are a large LED manufacturing enterprises2) was founded in 2010, we have a strong team3) we specialize in design and production engineering LED4) we focus on quality in accordance with the CE, GS, RoHS certification5) we can meet and exceed the global quality standards6) our current products are exported to the United States, Singapore, We have experience for projects over years, our professional engineer team will formulate a comprehensive solution based on your project details. Our engineering team originally design this s
