Home LED Light Products LED Strip Light 220V

LED Strip Light 220V

LED Strip Light 220V
Price: US $ 0.7-1/Meter
Trade Terms: FOB,EXW,CIF
Min Order: 100/Meter
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram

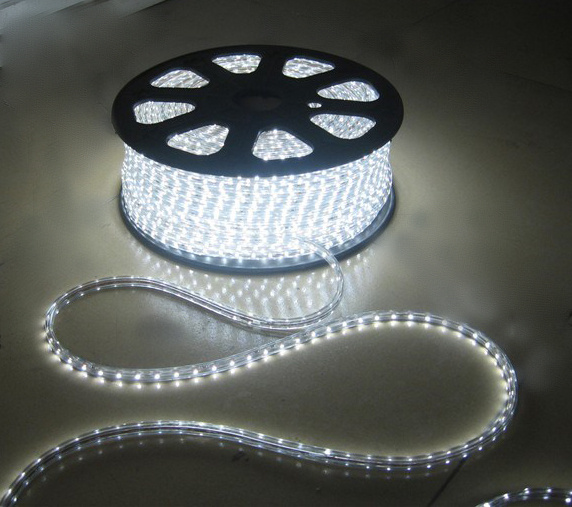

LED flexible strip 220V, 3528 LED flex 220V, High voltage LED flex 5050, SMD flex rope light:

SMD STRIP LIGHT is the newly-developed products, it is different with the 12V/24V flexible SMD strip. This rope light has the same craft process as the LED rope light, but with flexible PCB and SMD LED sources(5050/3528), then wrapped with enviromental PVC by compression molding machine. Automatic machine were adopt to finish the main production process, the quality control would be mcuh easy& conveniently, also the productivity are mostly increased. This PVC wrapped rope light are well received for its compact size, high brightness, flexibility and waterproof.

Features:
1. High brightness with SMD light sources, THREE CHIPS;
2. High flexblity with the FPC, it is much convenient for designing or decoration;
3. Small and portable size for transportation, also the delicate demension was most welcomed in decoration;
3. IP level for indoor and outdoor decpration choice, such as;
With PVC jacket it is widely used for outdoor and indoors outline work an decoration.
4. Easy-installing with clips to fix;
5. Each one meter could be cut;
6. Dimmer contoller and RGB controller could be used for this light to have various effect;
7. Long life span 50, 000hr, low photodegradation;
8. One power cord could drive 100meters, it is much convenient to connect to power...

Application:

1. Residential decoration, furring ceiling, mirror, stairs, windows cabinet and so on.
2. Outline for architectures.
3. Shops, supermarket, hotel, restaurant, KTV and so on.
4. Jewerelly and show counter decoration, DIY item using.




How to choose LED strip light?

1. LED brand, we usually use the Epistar or Cheimei Chips, it is directly decided the brightness and stableness of LED strips.
2. Brightness, there is different sectional LM for LED chips, 3CHIPS FOR 5050 but not one, 3528 ONE CHIP.
3. FPC, double side or not? Copper or Alunimum PCB? Width of FPC?
4. Solder paste, it should be burnish and glare with light for good solder paste, the dark paste it is easy to break off.
5. PVC jacket should be clear and transparent without any dust and spots, it should be the new PVC material but not recycling plastic,
6. Packing&Label.
7, Accessories should be match the light tube.


Trade terms:
1. Price: EXW/FOB SHENZHEN;
2. Payment: 30% T/T should be paid since the order confirmed, the balance would be paid before goods shipped out.; West Union and Paypal are also welcomed for small or trial orders;
3. Quality: Quality are under manufaturer's inspection and control, we privde 2years warranty for our products.
4. Lead time: For the routine order, goods would be shipped out in 7workdays, it is up the definite quantity;
5. Packing: We provide neatral packing, if any speical packing or customerized packing are also availble.

Our main products:

1. LED flex strip light 12/24V, such as 3528/5050/3014/2835/5630 strips;
2. LED flex rope light 220V and LED neon flex rope light;
3. LED T8 tube light;
4. LED panel light;
5. LED flood lamp, LED wall washer, LED tunnel lamp LED street lamp and other outdoor lights;
6. LED ceiling lamp;
7. LED Bulb lamp an LED candle bulb light;
8. LED down lamp, such as PAR light.


Remark:
1. While connecting the power cord please fix the end cap first for safty reason.
2. Make sure the connecting power cord to rope light in the right wires, if not it will not work...
3. Each roll with 50meters one power cord could drive, never connect the length more then 50meter for one cord.
4. This the 220V daily volt, so be careful while installation.
5. If there any Defeat while install, please contact the supplier to solve.

We sincerely welcome your contact and consulting for further business, any question pls just contact me, thanks. And the price would be negotiable.
Item No. Color Demension LED Qty Volt Cutting length PCB size Power Luminous Flux
 XXW-3528-60-R   Red   10*8MM   60LEDs/m   110V/220V   1M/unit   5mm   4.8W   240LM
 XXW-3528-60-Y   Yellow
 XXW-3528-60-B   Blue
 XXW-3528-60-G   Green
 XXW-3528-60-W   White
 XXW-3528-60-WW   Warm White
 XXW-5050-60-R   Red   14*8MM  60LED/m 3chips  110V/220V   1M/unit   6mm   14.4W   828LM
 XXW-5050-60-Y   Yellow
 XXW-5050-60-B   Blue
 XXW-5050-60-G   Green
 XXW-5050-60-W   White
 XXW-5050-60-WW   Warm White
 XXW-5050-60-R   Red   14*8MM  60LED/m 3chips  110V/220V   1M/unit   8mm   14.4W   828LM
 XXW-5050-60-Y   Yellow
 XXW-5050-60-B   Blue
 XXW-5050-60-G   Green
 XXW-5050-60-W   White
 XXW-5050-60-WW   Warm White
 XXW-5050-60-RGB   R   G   B   14*8MM   60LED/m   110V/220V   1M/unit   8mm   14.4W   /

Prod Model: XXW-HS-SMD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 6mm*8.5mm
LED Color: R/G/B/Y/W/Ww/O/RGB
LED: Epistar LED/Cheimei LED Chips
Luminous Flux: 4lm
Current: 16mA
FPC: White or Butter Yellow
Pakage: 100m/Roll for Single Color RGB 50m/Roll
Waterproof: IP44
Work Temperature: -20-50degree
Power: 9.6/M
Jiangmen Xinxingwang Lighting Factory is a professional manufacturer of LED Flexible Strip Light, ( 12V/24V/220V), LED Rigid Linear Light, LED Tube Light(T8/T5), and LED high power series lights, including LED Ceiling Light, LED Down light, LED Track Light, LED Bulbs and LED Candle Bulbs, LED Flood Light, LED Wall Washer, LED Underground Light, LED Underwater light, etc...

We are engaged in the research& development, manufacturing and sales of LED lighting series since 2009, now we have our own SMT machines and Plastic Extruding machines, we have 2 automatic production lines and 3 assembling lines.Our engineer is the expert of LED field for 7years;They could always give us the practical solution for LED application.Our well-equipped facilities and excellent quality control throughout all stages of production enable us to meet and guarantee customer's satisfaction.

We stress on the quality products, sincere service, and win-win business, which is our management principle.Since our establishment, the sales net are extended day by day, our products are well received in domestic and oversea market, and we have been establishing long-term and close business relationships with customers from Europe, North America, South America, South Africa and Asian countries.We firmly believe we can produce high-quality products and provide efficient service to our customer with our heart and soul.

Let our hearts light your life, let our credulity and integrity light your space, we sincerely hope we can join together and head to a bright future!

Jiangmen Xinxingwang Lighting warmly welcomes your visiting.
