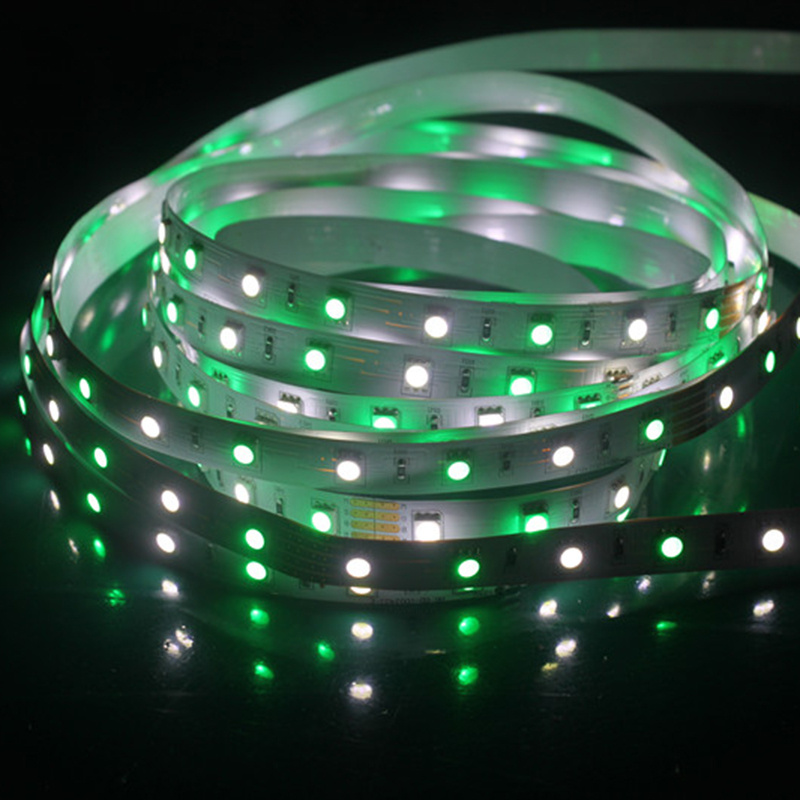

LED Strip Light is accepted by the market, it is easy to install and can cut in any length for suitable different project. It was widely use for public place decoration, but during this two years, it was widely accepted by family decoration. The LED flexible strip in blister package is popular sell in supermarket. LED Strip with adapter, controller, it look like a lighting fixture.
Features:
1. LED type: SMD2835, SMD3528, SMD5050, SMD3014, SMD5630, SMD3535
2. Wattage: DC12V
3. PCB Width: 8mm, 12mm
4. Length/reel: 5meters
5. Pakcage: 5meters/roll
6. IP Grade: IP44, IP65, IP68
7. Glue type: Expoy:Non-anti-UV,Stay clean for short time,smell
Silicone:Anti-UV,Stay clean,soft,smell-less
PU: Anti-UV,Stay clean,soft,smell-less
8. PCB Color: Yellow, White
9. Certification: CE & RoHS
10. Intallation: Bar, hotel, airport, public place
11: Certification: CE&RoHS
12: 30LEDs per meter, 60leds per meter, 120leds per meter
13: SMD5630
Item No. | LED Type | LEDs/M | Power/M | Lumen/LED | Color | PCB |
JM-3528W60-12 | SMD3528 | 60 | 4.8W | 4-5lm | W/WW/R/G/B/Y | Double layer PCB, 0.5m/section |
JM-3528W120-12 | 120 | 9.6W | 4-5lm |
JM-5050W30-12 | SMD5050 | 30 | 7.2W | 10-13lm |
JM-5050W60-12 | 60 | 14.4W | 10-13lm |
JM-5050RGB30-12 | 30 | 7.2W | 10-13lm | RGB |
JM-5050RGB60-12 | 60 | 14.4W | 10-13lm | RGB |
A: SMD3528 Series, Normal Beads |
|
|
|
|
|
|
Item No. | LED Type | LEDs/M | Power/M | Lumen/LED | Color | Color Option | PCB Size |
JM-F3528XXM120W10-24 | SMD3528 | 120 | 9.6W | 5-6lm | 2 colors mix | R.G.B.W.Y.O.P | 5000*8mm |
JM-F3528XXXXM120W12-24 | 120 | 11.5W | 4 colors mix | 5000*8mm |
JM-F3528WM240W10-24 (single row) | 240 | 19.2W | 2800-6500K | 5000*10mm |
4000-4500K |
JM-F3528WM240W10-24 (double row) | 240 | | 2800-6500K | 5000*15mm |
4000-4500K |
|
|
|
|
|
|
|
|
B: SMD3528 Series, New LED Beads, 2 chips Packed in 1 LED Bead |
|
|
|
|
Item No. | LED Type | LEDs/M | Power/M | Lumen/LED | Color | Color Option | PCB Size |
JM-F3527WWWM60W10-24 | SMD3527 | 60 | 9.6W/M | 14-16lm | 2 in 1 | White Warm white | 5000*10mm |
JM-F3527WWWM120W10-24 | SMD3527 | 120 | 19.2W/M | 14-16lm | 2 in 1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C: SMD5050 Series, Normal LED Beads |
|
|
|
|
|
|
Item No. | LED Type | LEDs/M | Power/M | Lumen/LED | Color | Color Option | PCB Size |
JM-F5050WM120W20-24 | SMD5050 | 120 | 28.8W | 18-20lm | 1 color | R.G.B.W.Y.O.P | 5000*20mm |
JM-F5050RGBM120W20-24 | 120 | 28.8W | 7-8lm | RGB | RGB | 5000*20mm |
JM-F5050XXM60W12-24 | 60 | 14.4W | 18-20lm | 2 color mix | R.G.B.W.Y.O.P | 5000*12mm |
JM-F5050XXM120W12-24 | 120 | 28.8W | 18-20lm | 2 color mix |
JM-F5050XXXXM60W12-24 | 60 | | 18-20lm | 4 color mix |
|
|
|
|
|
|
|
|
D: SMD5050 Series, New LED Beads, 4 chips packed in 1 LED |
|
|
|
|
|
|
JM-F5050RGBWM60W10-24 | SMD5050 (4chips in 1 LED) | 60 | 19.2W | 11-12lm | 4 in 1 | RGB/W/WW | 5000*10mm |
JM-F5050WWWM60W10-24 | SMD5050 (2chips in 1 LED) | 60 | 14.4W | 18-20lm | 2 in 1 | W/WW | 5000*10mm |
Jumilux was established 2009, focus on liner lighting profiles, aluminum LED profile for LED flexible strips, LED rigid bar.
Jumilux have bave 5000 square meters workship, 10 professional machines, and complete production line, 30-40 skilled workers.
Jumilux also have design group who are in charge of develop new designs, OEM design from customers. We are professional in developing mould for end caps, PC diffuser, mount clips. Through 5 days, we can finish whole sets of 1 design.
We use thick carton for package, all package will add high intensity corner protection which protect long length LED profile not bent after long transportation.
We use 6063-T5 Aluminum with 6063-T5 with Surface Anode Oxidation treatment, we accept cut 1 meter, 2 meters, 2.5 meters, 3 meters or any custom length within 3 meters.
Through 6 years development, our products range is reach to above 100 styles, suitable for different project request. Ideal for commercial, residential applications. Our main market is Europe, USA, Canada. Main customer group is wholesaler of LED strips, distributor, project engineer and so on. We also supply for domestic market for shopping mall, supermarket, furniture factory, chain stores decoration, government projects and so on.
We have own warehouse to stock above 100 styles LED profiles, we welcome customized design according to different projects.
