Led light manufacturers and factory

Home LED Light Products LED Street Light Price List High Power 120W LED Street Light

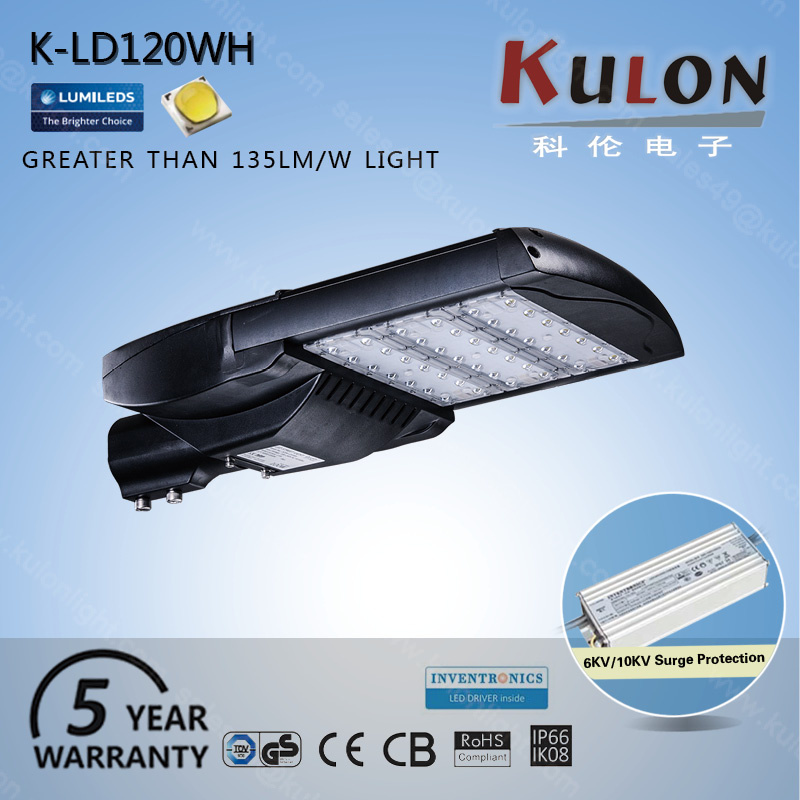

LED Street Light Price List High Power 120W LED Street Light

LED Street Light Price List High Power 120W LED Street Light
Price: US $ 175.23-190.10/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Led street light price list high power 120W led street light

INVENTRONICS LED driver
High-end programmable EBD Series LED Driver, integrate dimming function and 6KV / 10KV surge protection. Provide excellent performance and lifespan.

PHILIPS LUXEON T luminous source
The KULON H-Series LED High Bay Lights are utilizing PHILIPS LUXEON T luminous source, providing excellent lumen output - up to 100 LPW, long-lasting stability and splendid sight.

LED module
Exquisite design with powerful thermal dissipation and IP67 waterproof performance.

KULON 3rd GENERATION LED MODULE and Materials:
1. Exquisite design with powerful thermal performance, as well as high reliable waterproof rating.
2. Professional lens design, suitable for various applications.(1S/2S/3S/5M for choose)
3. Luminaire body is fixed by two M8x16 fortified stainless steel screws.
4. Rational clamshell design for wiring compartment, sturdy and durable.
5. Use stainless steel screws for whole luminaire, no corrosion worries.
6. Use Germany WAGO connectors. Internal wiring, safe, convenient & fast.
7. Innovative pluggable connector, clean & efficient.
8. CE/TUV standard connector.
9. Full 6063 Anodize aluminum made, sufficient heat dissipation area.
10. 100-240V/277V AC, 50/60Hz, Suitable for Wet Locations (IP66), Class I

Features & Advantages:
1.Whole lamp lumens up to 110LM/W.
2.Optical Sensor or Motion Sensor Available
3.Over than 100,000 hours operation lifespan with 5 Years Warranty.(L80 > 60,000Hrs)
4.IK08&IP66 (testing reports available)
5.Innovative pole fitter design not only achieve the horizontal and vertical installation features, also has 0-15°
6.IES file or Dialux simulation for lighting solution is available.

 Application:
KULON-H series street light were designed specifically to replace conventional lighting in a wide variety of outdoor industrial applications; Their low profile light weight design and versatile mounting options make it ideal for many applications such as main roads, parking lots, outdoor warehouses, square, wall mountings and general LED lighting.

Specifications:
Model NameK-LD120WH
Nominal Wattage120w
Drive Current900 mA
Number of Modules3
Input Voltage200-240V /277V AC 50/60Hz
Dimming0-5V, 0-10V PWM, Timer
Max. Current @ 208V0.71 A
Max. Current @ 240V0.62 A
Max. Current @ 277V0.53 A
Operating Temperature-40 ºC to +50 ºC
Power Factor (PF)> 0.95
Total Harmonic Distortion (THD)< 20%
Lumen Output (+/- 5%)13200 lm
Optic1M, 2M, 3M, 5S
CRIMinimum 70 CRI
CCT3000k 4000k 5000k 5700k
RatingsIP66, IK08
Heat RadiatorAnodized Aluminum
LensPC (UV resistance)
Packaging Type1 unit /ctn.
Fixture Info.577 x316 x136 mm, 7.3 kg
Packing Info630 x370 x200 mm, 8.6 kg

Our services:
Prompt lead time, professional Dialux lighting simulation, perfect after-sales service are our priority,
hope to be your reliable led lighting solution partner.
1. What we do is making you satisfied. Our goal is providing you with right products and come up with correct solutions.
2. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.
Decision for the shipping terms will be made according to your requirements.
3. Delivery time is guaranteed. 2-3 working days for sample order,5-7 working days for regular order(quantity< 100pcs),10-15 working days for mass order(101-500pcs), order >500pcs pls contact us to confirm.
4. Price is negotiable if you have large quantity demand.
5. Package is customized.Usually we use films,foam boxes,cartons and wooden pallet.
Warranty details:
Hangzhou Kulon Electronics Co., Ltd. ("Kulon") warrants this kulon branded hardware product against defects in materials and workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase.
Kulon provides free repair or replacement within warranty period. KULON shall charge against defeats by abnormal storage, useage, connection or change the structure or any commponents of the product.
(Professional Warranty file with stamp and signature will be sent to you if necessary).

FAQ:
How to choose a right light for project?
1. According to Average or minum lux demands on floor to choose the right watt product
2. Depends on project drawing to make a Dialux simulation to confirm the beam angle and light installation layout
3. Choose the right CCT(3000/4000/5000 or 5700K) for different application place.
4. Confirm the most suitable install method. (pendant mounting, direct mounting or suspended mounting available)

How to achieve intelligent dimming function ?
Our led driver use Mean Well HLG type or Inventronics smart could support all kinds of dimmer:
0-10VDC, Resistance, PWM, Time dimming or DALI
You just need to connect a dimmer to achieve this function.

How to achieve motion sense function?
We could build in a smart motion sensor to ahieve this function such as:
When used in combination with 1-10V dimmable LED drivers and ballasts, the sensors can achieve 3-step
dimming function, 100%---> low light--->off. And the sensors build in adjustable daylight sensors, very easy to
install and cost-effective.
Prod Model: K-LD120WH
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: LED Street Light 120W
Lens: PC (UV Resistance)
Heat Radiator: Anodized Aluminum
Optic: 1m, 2m, 3m, 5s
Fixture Info.: 577 X316 X136 mm, 7.3 Kg
Packing Info.: 630 X370 X200 mm, 8.6 Kg
Types: LED Street Light
Lumen Output (+/- 5%): 13200lm
Power Factor: > 0.95
Rating: IP66, Ik08
Lamp Body Material: Aluminum Alloy
Application: Road/Street
IP Rating: IP66
Certification: VDE
With Light Source: With Light Source
LED Chips Brand: Philips Lumileds
Power Supply: Inventronics LED Driver
Color Temperature: 3000k 4000k 5000k 5700k
Power: 120W
Input Voltage: 100-240V /277V AC 50/60Hz
