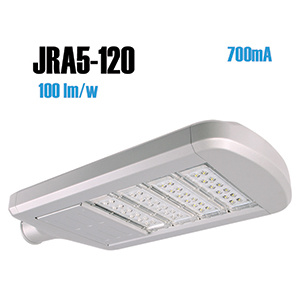

JRA5 street lamp series, simple fashion design, module type illuminant combination can realize the full power of 60w to 240w, segmented removable, independent cooling module protective performance of IP66; Is a high cost performance LED street light products;
Low profile design principle of fluid dynamics, simple, and easy; Natural dust, maintain a clean and tidy lamps and lanterns;
Module design, power can be selected according to customer requirements, meet the needs of various occasions;
Low profile design without dust, is more advantageous to the LED heat dissipation, the life of lamps and lanterns;
Low convection type design, be helpful for the LED heat dissipation, and improve the life of lamps and lanterns;
Low dust cover plate in the shape of unique design, can according to customer requirements;
Low power supply box adopts convenient type design, convenient construction and maintenance of lamps and lanterns;
Low IP67 modularization design, ASTM6063 heat block, surface treated by anodic oxidation of black,
Increase the cooling capacity, cooling steel using micro heat processing, improve the ability of heat dissipation
Jingri lighting professional making landscape of all kinds of LED lights, buried lights, courtyard lamp, lamp, project-light lamp, floodlight, wash wall lamp, mining lamp, street light, tunnel lamp, lamp pole, lawn lamp, point lights, underwater lights, LEDT courtyard lamp, LED buried lights, LED project-light lamp, LED lawn lamp, LED street light, LED floodlight
|
|
Product Code |
JRA5-120 |
|
LED |
LED Quantity |
48pcs |
|
|
Rated Power |
114W |
|
|
Color Temperature |
6500/4000/3000 K |
|
|
Efficiency |
100 lm/W |
|
|
Luminous Flux |
10827/9960/8167 lm |
|
|
Installation Pipe Diameter |
Φ60mm |
|
|
Installation Height |
9-11m |
|
|
Net Weight |
8.5Kg |
|
|
Gross weigh |
9.5Kg |
|
|
Packing Size |
705×390×155mm |
