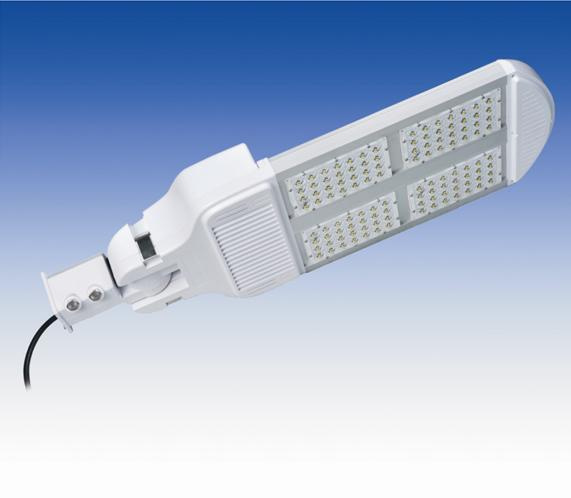

LED street light
1, Futuramic thermal dissipation design, got patent.
2, Integrated with special lens, higher light illumination
3, intelligent temperature controller power, longer life-span
4, Meet CE and RoHS
Can be used for lighting in super high way, express way, main road, submain road, residence road, sidewalk and plaze, stadium etc.
Specification:
|
Model NO. |
CH-L8W112 |
|
Input voltage |
AC 85~265V |
|
Frequency |
47~63Hz |
|
Power Factor(PF) |
> 0.9 |
|
Total harmonic Distortion(THD) |
< 20% |
|
Power efficiency |
85% |
|
Working voltage |
DC 46V |
|
LED power dissipation |
112W |
|
Electric dissipation |
30W |
|
LED luminescence efficiency |
≥ 85Lm/W |
|
luminous lux |
10600Lm(Tj=25) |
|
Lights efficiency |
≥ 90% |
|
Illuminance On the ground(E) |
H=6m |
≥ 54Lux |
|
H=8m |
≥ 31Lux |
|
H=10m |
≥ 19Lux |
|
H=12m |
≥ 14Lux |
|
Effective Irradiation area |
H =6m |
20*8m |
|
H =8m |
26*10m |
|
H=10m |
33*13m |
|
H=12m |
40*16m |
|
CCT |
Pure white: 5000-6500K;
Warm white: 3500-4500K |
|
Color radiation index(CRI) |
Ra> 75 |
|
The strongest lighting angle |
Horizontal axis: 120° ~140° ;
Vertical: 45° ~60° |
|
LED Temperature |
70º C± 10%(Ta=25) |
|
Working temperature |
-30~50º C |
|
Working humidity |
10%~90%RH |
|
Stock temperature |
10~85 |
|
Match ray curve/Facula |
Unsymmetry(bat wing shape)/rectangle facula |
|
Life span |
> 50.000Hrs |
|
Lamp chimney |
Aluminum alloy and PC |
