BL-SL108 LED Street LightSpecification
Type: BL-SL108
Light source: Bridgelux LED
Input voltage: AC(85V~265V) DC(12V 24V)
Frequency range: 50-60Hz
Total Harmonic Distortion: < 9%
Power: 50W/60W/70W/80W/90W/100W/120W/180W
Working voltage: DC (30 36V)
Color temperature(CCT): 2700-7000K
Light efficiency: 80-100lm/W
LED Qty: 90PCS
LED Comsumption: 94W
View angle: 120°
Work temperature: -40~55Celsius
Work Humidity: 10%-95%RH
IP grade: IP65
Life time: >50000Hrs
Case body and lampshade: Aluminium alloy and toughened glass
Dimension of the external box(L * W * H): 85*34*32 cm
Quantity (PCS): 1PCS in a carton
Net weight: 13.5 Kg
Usage and Installation:
This product is applicable for wide voltage AC power supply network, environmental temperature is around -40ºC~55ºC.
During installation please first to fix the street lights on poles through installation brackets.lf power supply is DC drived, red cable of street light for anode, white cable for cathode.
If power supply is AC/DC drived, colored cable of street lights should be connected with ground (having nameplate with ground)
Connecting power supply after checking, lights can work.
Installation
Installation Instruction
1. When open the package, please check whether the inside is including product,accessory,
label, certificate quality. And please assure that the light is perfect without any damage.
2. This led street light product is applicable for wide voltage AC power supply network, environmental temperature is around -40°C~55°C.
3. The wires of LED Street Light is three-core, the standard size of the wire is 3*0.75mm²or 3*1mm², brown wire is live line, blue wire is null line,
4. Open the crust of the street light and open underprop. Connect cables of street light. Pay attention to the notes of connection. Cable connection should be distinguished zero wire N, ground wire, live wire. Set sealed circle onto bracket tube of light pole. Please note to set it on an even keel and fix with bolt. The largest buckle stainless clasper. Don't press light wires.
5. During installation please first to fix the street lights on poles through installation brackets. lf power supply is DC drived, red cable of street light for anode, White cable for cathode.
6. If power supply is AC/DC drived, colored cable of street lights should be connected with ground (having nameplate with ground). Connecting power supply after checking, led street light can work.
Type LED power pole height distance between two poles illuminance(lux) uniformity
Center average 0.4
BL-SL760 100W 7m 21m~28m 56 22.5
8m 24m~32m 43 20
9m 27m~36m 35 18
10m 30m~40m 26 15
120W 7m 21m~28m 64 24
8m 24m~32m 46 22
9m 27m~36m 40 20
10m 30m~40m 32 18
140W 8m 24m~32m 54 28
9m 27m~36m 46 25
10m 30m~40m 38 22
11m 35m~45m 30 20
Applications
City roads, Habitation areas, Industrial areas ,Squares, Park, Schools, Village, yards, etc.
Packing information:
Qty:2pcs/ctn
Carton Weight: 7.8KGS/ctn
Carton size:85*34*32 cm
Why Choose Brightled Lighting1. Competitive price and relatively high quality.
2. On time delivery
3. Great after service
4. Fast response to the inquiries.
5. Samples is available.
6. More than 10 years LED manufacturing experience.
Our advangages:
1. Low power consumption, high lumens

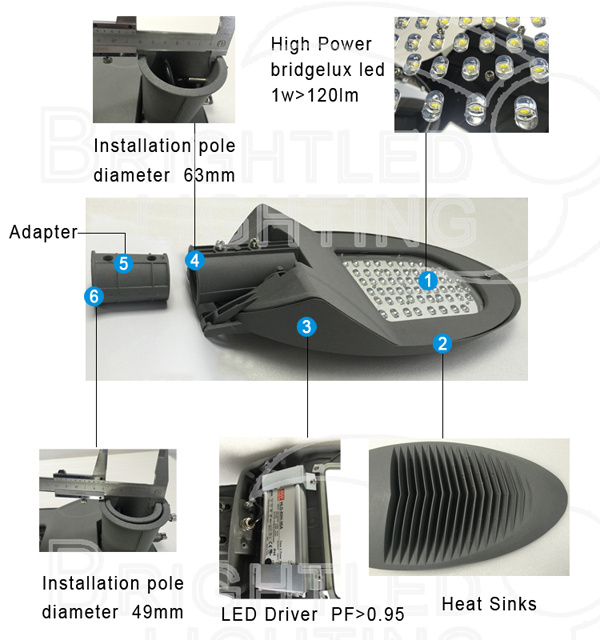

2. Original Bridgelux 45mil led chips, high quality, high brightness
3. Longer life around 50, 000hours
4. High quality pure aluminum, Efficient heat dissipation design, fast heat dissipation
5. Efficient LED driver, Reliable Performance, ROHS, CE compliant
6. Product process exquisite, unique design
7. Light's surface diameter and material thickness are greater than other products on the market
8. Excellent service, comprehensive after-sales service
Our promise for clients:
1. Just provide good quality products.
2. Make sure to give you the most favorable prices.
3. Provide 3 years warranty.
4. Have long term cooperation with our forwarder, so we can provide you the lowest f reight and the fastest service.
5. Have professional engineers to design and develop new led
lights according to your requirements.
6. Design the colored boxes for you when you have larger quantity.
7. Can use your logo and label on our products.
8. Your inquiry will be replied in 10 hours
Our serveice:
1) Your inquiry will be replied in 24 hours
2) Well-trained and experienced staffs to answer all your inquires in fluent English
3) Protect your sales area, ideas of design and all your private information
