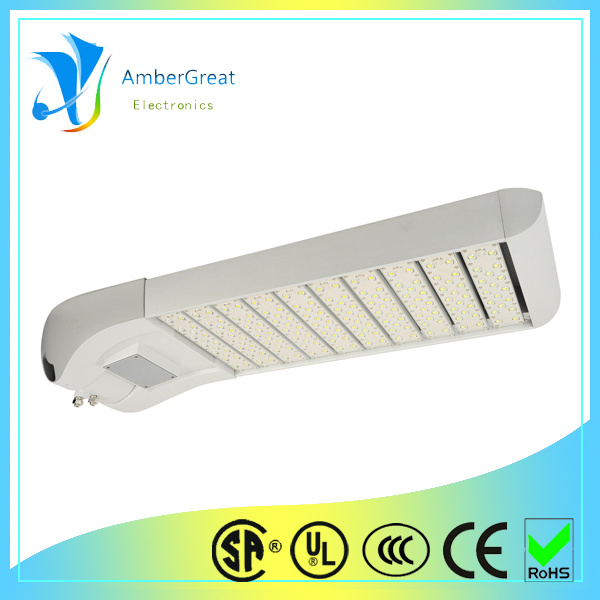

LED Street Light 304W AG-L180A-L5

LED Street Light 304W AG-L180A-L5
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Product Name: Aries Series LED Street Lights / light / lamp 304W with CREE Chip/Wago Connector/Philips Driver, IP66, RoHS/CE Mark AG-L180A-L5

Technical parameters:
Wattage: 304W
Input voltages: 120 to 277V AC (277 to 480V)
LED quantity: 180 pieces
Fixture light effect: 122lm/W
CRI: >75Ra
SPD: 10kV
IP rate: IP66
CCT: 5, 028 ± 283K
Delivered flux: 32, 000lm
LED drive current: 0.53A
Control systems: DALI/0 to 10V/motion sensor/photocell
Installation way: Pole, arm branch
Connector: WAGO
Casing material: Die-cast aluminum casing
Size: 1, 005 X 340 X 142mm
Weight: 12kg
Lifetime: >50, 000 hours
Warranty: 5 years

Technology features:
Top of the line, American made, CREE LED chips
UL rated Philips drivers in IP66 separate compartment to isolate heat (no ballasts required)
Die cast waterproof IP66 aluminum alloy casing
Passive heat dissipation system
No fans to malfunction
Quick-installed hook with G1/2ft spiral
4-in-1 lens module with more than 3 kinds of light distribution
Flexible lens combination to create different distribution
Easy clean from the new shape design without fin
High-tempered glass cover better for the protection on the production areas
Fiver year warranty standard
60, 000 hour life equals over 13 years at 12 hours per day without dimming
German WAGO wire connectors
Great dust and waterproof
Good application in warehouse, workshop and specially in professional spot such as huge cooling-house and huge slaughterhouse
Color rendering index: >75Ra (older, traditional style lot lights are <60)
Environmentally friendly dark sky compliant
Control system DALI/0 to 10V dimmer to reduce brightness when dimming is active
Replacement available for existing 1000W bulbs
Prod Model: AG-L180A-L5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wattage: 304W
Life: 50, 000h
Power Source: AC
Electric Current Type: AC
Emitting Color: White
Usage: Street
Base Material: Aluminium Alloy
Input Voltage: 120-277V
Diffuser: Don't Need
Certification: CE
IP Rating: IP66
Ambergreat Electronics Pte Ltd is a major LED street lamp, LED tunnel lamp, LED Flood Light and LED gas station lamps manufacturer. We have a highly professional R&D team and professional sales and services in Singapore and our manufacturing factories in Xiamen, Fujian, China. During the past ten years, Ambergreat has been keeping providing high quality and effective services for all valued customers. We keep pace with the up-to-date technology in the illumination industry, and in recent years, Ambergreat has been specializing in the LED project market especially in LED street lamp, LED tunnel light, LED gas station light and LED Flood Light.
