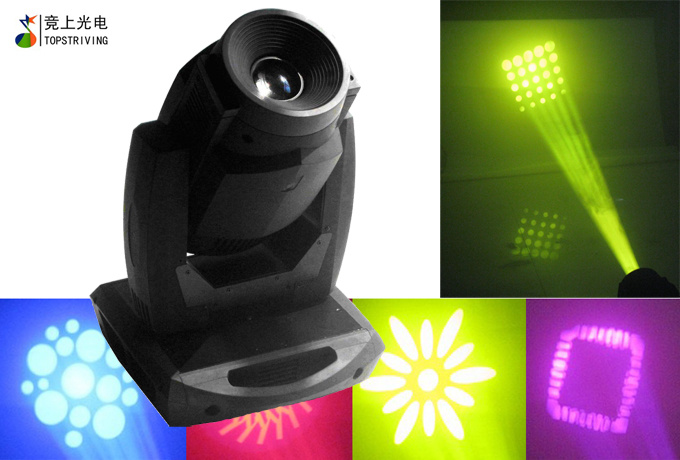

LED Stage Moving Head Light / Moving Spot Light (PRO SPOT 22)
Technical Specification:
(1) Brightness similar to HMI 575W/GS lamp, LED Moving Head that produces a spot effect;
(2) 4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active;
(3) Blue LCD display, compact & light weight and offers plenty of pro features such as:
7 Dichroic Colors + white, 6 Rotating Gobos (Interchangeable), 6 static gobos,
A Prism Wheel with 3-facet, Dimming (0-100%), Strobe effect, 16 DMX channels and a Gobo Scroll mode;
(4) Colour-system: Colour-wheel with 7 different, dichroic colour-filtres and white, Rainbow-effect in both directions;
(5) Gobo-wheel 1 with 6 static metal-gobos and open, Gobo-wheel 2 with 6 rotating gobos plus spot(3 glass gobos);
(6) The rotating gobos can be turned by 360° , the adjusted position is memorized
High-speed rotating 3-facet prism;
(7) shutter/dimmer unit allowing very smooth dimming and strobe effect 1-10 flash per sec;
(8) Blue LCD display, receiving DMX values, Remote reset function, Silent fans cooling;
(9) 16 DMX-channels each DMX channel function can be achieved by LCD display setting;
(10) Pan-movement range 530° , Tilt-movement range 280° , auto Pan/Tilt repositioning, High luminous-efficiency parabolic mirror and double condenser system;
(11) Motorized focus controllable via DMX, Steplessly adjustable iris, all lenses are anti-reflection coated;
(12) Dimension: 380*365*555mm;
(13) Weight (net): 15.0kgs.
Procedure:
Step 1: Open the fuse holder on the rear panel with a fitting screwdriver;
Step 2: Remove the old fuse from the fuse holder;
Step 3: Install the new fuse in the fuse holder;
Step 4: Replace the fuse holder in the housing.
DMX FUNCTIONS: 19-CHANNEL MODE
|
|
Channel 1 |
Horizontal movement (Pan) |
|
Channel 2 |
pan fine 16 bit |
|
Channel 3 |
Vertical movement (Tilt) |
|
Channel 4 |
tilt fine 16 bit |
|
Channel 5 |
pan/tilt movement speed adjustments |
|
Channel 6 |
dimmer from 0-100% |
|
Channel 7 |
strobe from slow to fast |
|
Channel 8 |
focus |
|
Channel 9 |
Color-wheel |
|
Channel 10 |
semi color combining |
|
Channel 11 |
rotating gobo-wheel |
|
Channel 12 |
rotating gobo moving forward and backward |
|
Channel 13 |
Gobo rotation |
|
Channel 14 |
static gobo-wheel |
|
Channel 15 |
prism |
|
Channel 16 |
prism rotations |
|
Channel 17 |
frost |
|
Channel 18 |
iris |
|
Channel 19 |
reset |
