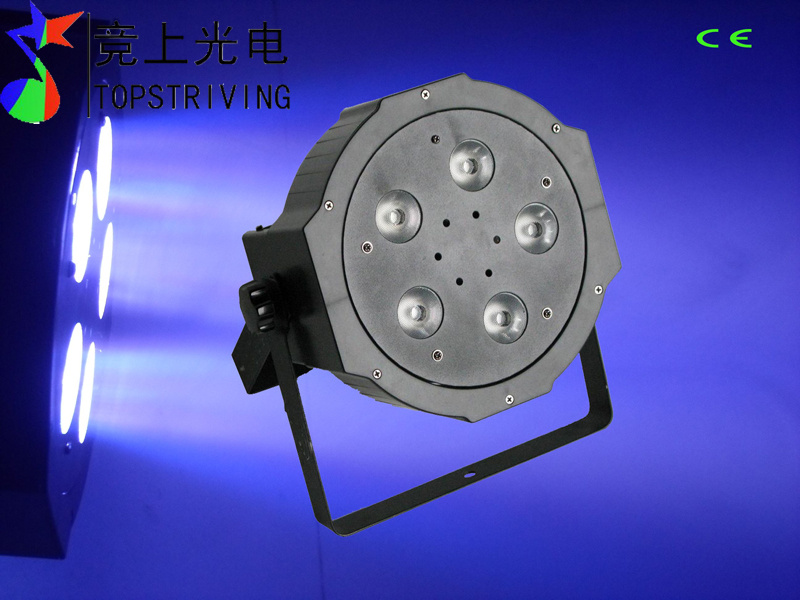

Stage lighting/ led Part Light: MEGA TRI PAR
Technical Specifications:
1) Light Source: 5* 3w High MCD 3 in 1 RGB LEDs
2) Voltage: AC 90-240V 50/60HZ
3) Power Consumption: 30w max
4) Fuse: 250V 1.0A
5) DMX Channel: 8ch
6) Beam Angle: 15/25/30/45 degrees
7) Electronic Dimming: 0-100%
8) Housing: Black Housing
9) Emitting Color: RGB
10) Color Temperature(CCT): Cool White
11) Working Temperature: 0 - 45 degree
12) Working Lifetime(Hour): 100, 000(h)
13) Operational Modes: DMX, Master/Slave, Stand Alone & Sound Active
14) DMX-512-connection: 3-pin XLR
15) Dimensions: 270*230*100mm
16) Net Weight: 2.5kg
Function of the control channels: |
8 channels |
|
Channel 1 |
Red from small to big brightness(dimming) |
Channel 2 |
Green from small to big brightness(dimming) |
Channel 3 |
Blue from small to big brightness(dimming) |
Channel 4 |
Master dimmer from small to full brightness |
Channel 5 |
Strobe from slow to fast |
Channel 6 |
Dimmer, color macro |
Channel 7 |
Dimmer, increasing brightness, then decreasing brightness, colors following one by one |
Channel 8 |
Running speed adjustments |
DELIEVER TERMS |
|
Packing |
Flight case/ carton package optional |
Trade |
FOB EXW |
Port |
GuangZhou China |
Certification |
CE ROHS |
Payment Terms |
T/T, Westerm Union, Paypal |
Shipping method |
DHL,UPS, FedEx, TNT door to door service, by sea, by air, etc |
Delivery time |
40 HQ container within 4 weeks |
Brand Name |
Topstriving |
Origin |
GuangZhou China |
Producting Time |
15-20 days |
OEM OR ODM Service |
Accept |
MOQ: |
30 PCS |
Warranty Time |
Fully 3 year |
GUANGZHOU TOPSTRIVING PHOTOELECTRICITY TECHNOLOGY Co., Limited, founded in 2010, is a supplier and manufacturer of professional entertainment effect lightings with a roster of products including, but not limited to, DMX lighting controller, LED applications, effect lightings, yoke lights, lasers, stage lights, foggers, a variety of other accessories.The dedication and commitment to the customers is the foundation of TOPSTRIVING.Our experienced and devoted workers allow us to make finished products that share both the competitive pricing of mass production as well as the quality and individuality of the items.We have a big showroom which offers you the general idea of the products;A well-equipped R&D lab, covering the structuring, electronics, program-writing and optics to instruct and control the whole procedure of developing, testing and mass production of organization.In addition to our standard products we welcome the opportunity to make products to our customers' specifications and demands.We can assist you from design and engineering through production and final packaging and conclude business based on ODM.We are also pleased to offer private labeling and silk-screening prints of our standard product designs for your individual market needs and conduct business based on OEM/ODM/OBM.
