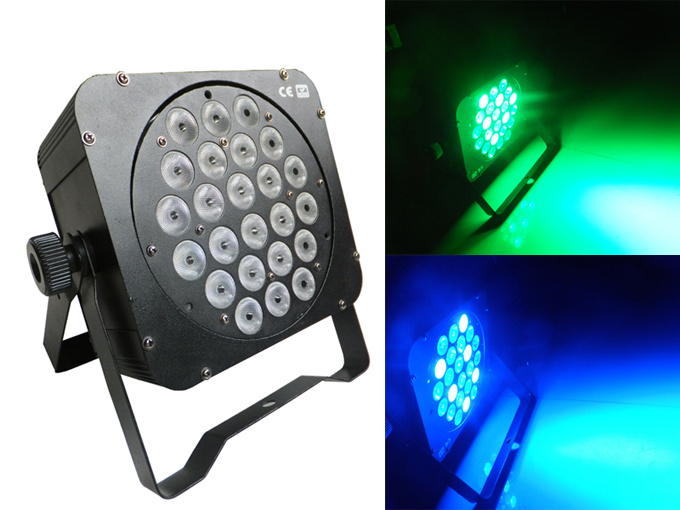

LED Stage Flat PAR Light with 24 high MCD 3W LEDs(FLAT PAR 24 RGBW)
TECHNICAL SPECIFICATIONS
1)Power supply: 90-240V AC 50/60Hz
2)Power consumption: 80W
3)DMX-control-channels: 9
4)DMX-512-connection: 3-pin XLR
5)Number of LED: 24 high MCD 3W LEDs, red/green/blue/white each 6/6/6/6 pcs
6)Dimensions: 330*280*110mm
7)Weight: 3.9 kgs
AUTO: Run the preset shows;
CF00: Increasing brightness, then decreasing brightness, the speed of increasing brightness,
Then decreasing brightness can be adjusted by the buttons of UP and DOWN from 00
Slowest to 99 fastest.
CCO8: Color changes, the speed of color changes can be adjusted by the buttons of UP and
DOWN from 00 slowest to 99 fastest.
CS99: Color selections, the color selections can be done by the buttons of UP and DOWN
From 00 to 99.
R000: Press the button FUN five seconds, till R000 shows in the led display, the red color
Brightness can be adjusted by the buttons UP or DOWN;
G000: Press the button FUN five seconds, till G000 shows in the led display, the green color
Brightness can be adjusted by the buttons UP or DOWN;
B000: Press the button FUN five seconds, till B000 shows in the led display, the blue
Color brightness can be adjusted by the buttons UP or DOWN;
Y000: Press the button FUN five seconds, till Y000 shows in the led display, the white color
Brightness can be adjusted by the buttons UP or DOWN;
|
Channel 1 |
red from small to big brightness (dimmig) |
|
Channel 2 |
green from small to big brightness(dimmig) |
|
Channel 3 |
blue from small to big brightness(dimmig) |
|
Channel 4 |
white from small to big brightness(dimmig) |
|
Channel 5 |
master dimmer from small to full brightness |
|
Channel 6 |
strobe from slow to fast |
|
Channel 7 |
dimmer,color macro |
|
|
|
|
Channel 8 |
dimmer, increasing brightness, then decreasing brightness, colors following one by one |
|
Channel 9 |
running speed adjustments |
