Product Data:

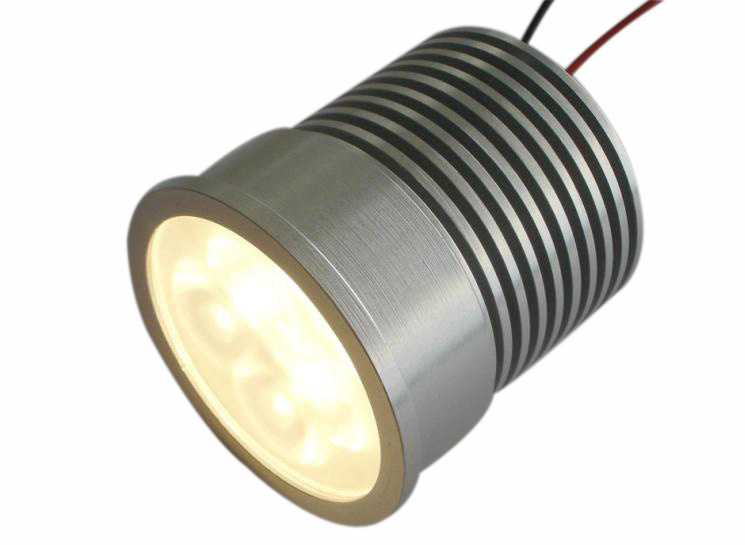

Full product name: LED spot light
Product type: D5004-MR1(WW)
Diameter: 50mm
Average Lifetime: 40000hr
Wattage: 4.7W
Voltage: 24VDC
Colour Code: WW
Colour Designation: Warm White
Luminous Flux: 280Lm
Colour rendering index: 90Ra
Colour Temperature: 2800K
Product features:
1. MR16 base type
2. Light source: 50-MR16 series, can widely used on MR16 Ceiling light.
3. Beam angle: 30degree
4. Light output equivalent to 40W GLS.
5. LED: Nichia's 083A series LED, light efficiency is 70-80LM.
6. Warm white light color
7. Aluminum housing, 20cm electrical wire with MR16 joint.
8. Working temperature: -20+35
9. Instant start, switching by sensor possible
10. Ultra-long lifetime of 40, 000 hours at 30% failure
11. Even better sustainability than halogen lamps: Even lower energy consumption, no mercury or other hazardous.
Product benefits:
1. Direct retrofit: Instant energy savings with no extra investment for new luminaires
2. Up to 80% energy savings compared with equivalent halogen or GLS lamps
3. With perfect color rendering index(CRI>90)
4. Ultra-low power consumption is ideal for 24/7 lighting applications
5. Payback time typically only around 1 year at 24/7 lighting applications
6. No compromise in light quality
7. Reflector types have high-efficacy beam with clearly defined beam spread
8. Low maintenance through long lifetime and low failure rate
9. Cool beam, no UV or IR radiation
Product advantages:
1. Adpoting original Japanese Nichia's 083A LED series with the excellent performance, LED light output efficiency can up to 280LM/W
2. Selecting 24VDC supply, 300mA constant current drive, the power output is 4.7W.
3. LEDs are rugged, solid state devices and are not susceptible to vibration such as with incandescent filament based bulbs.
4. Special design established perfect path between the light source and aluminum housing, which is more favorable for heat elimination.
5. Components and auxiliary material completely fulfil the standard and requirement of the lighting equipments.
Application:
1. Indoor use, 5-3. Direct retrofit replacement for halogen and GLS lamps in hospitality, hotel, restaurant, marketplace, shopwindow, museum and similar applications, especially with long burning hours.
2. Spot, task and general lighting in nearly all existing luminaires
