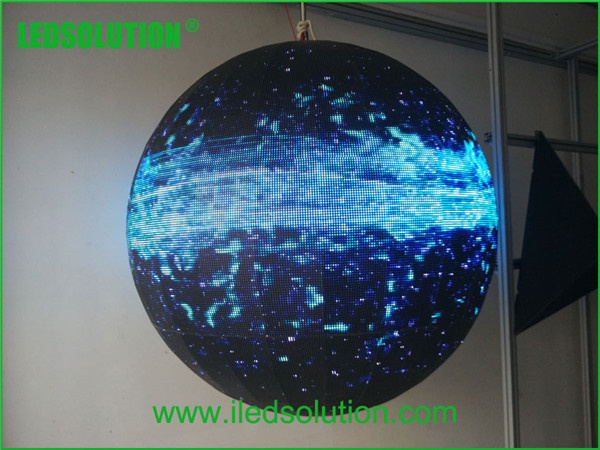

LED Sphere Display / LED Ball Video Display / 360 Degree LED Display

LED Sphere Display / LED Ball Video Display / 360 Degree LED Display
Price: US $ 5500-7000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Company Introduction
LEDSOLUTION is a professional manufacturer of LED Display. We dedicate to supply high quality products with competitive prices. Our products and services are well-received around the world. It's our mission to satisfy evevry customer's expectation to the greatest extend.

To choose LEDSOLUTION is to choose perfect LED solutions!

Product Description
LED screen market is changing greatly, from traditional advertising display to irregular shape display. Expect the traditional function of showing information, LED display also updated the requirements on outside looking, which made it be more suitable for various occasion. P10 indoor LED ball display is born for stage rental use. It has 360 degree viewing angle, perfect playing effect, precise workmanship. You are worth it!

 P4.8 LED Ball Features
1. Viewing angle: 360 degree
2. Frame structure: Light, convenient, firm
3. Ball's diameter: Customized as requested
4. Good heat dissipation


ParameterUnitValue
Pitchmm4.8
Brightnessnits1,500
Color temperaturedeg. K6,500
Viewing angle - Horizontal (50% brightness)deg.140(-70 ~ +70)
Viewing angle - Vertical (50% brightness)deg.140(-70 ~ +70)
Net Weightkg70
Diametermm1,000
Panel areasq. m.3.14
Operating temperature rangedeg. C-30 to +60
Material
Steel
Ingress protection (front/rear)
IP23
Humidity operatingRH10% ~ 90%
Pixel type and configurationR/G/B3in1 SMD
Dot per sq. meter
43,402
LED per sq. meter
43,402
Recommended minimum viewing distancem3.6
Recommended best viewing distancem4~60
Colors
281 trillion
Grey scale (linear)Levels65,536 levels per color
Brightness controlLevels100
Contrast ratio
1,000:1
Processing depthbit16
Video frame rateHertz60
Display refresh rateHertz600
Input voltage (nominal)VAC110 to 240
Input power frequencyHertz50 to 60
Input power (max)Watts/panel2,000
Input power (typical)Watts/panel800
Lifetime (50% brightness)Hours≥100,000
Red wavelength (dominant)nm620~625
Green wavelength (dominant)nm525~530
Blue wavelength (dominant)nm470~475
Multimedia data format
DVI,MPG,AVI,WMV,RM etc.
Control way
Synchronous
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Hanging & Stand on ground
Package
Flight case
Flight case sizem1.2 * 1.2 * 1.4m
Gross weightkg310
Volume Weightkg336

Prod Model: LS-BALL-P4.8-D1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: 1500nits
Viewing Angle: 140/140
Diameter: 1,000mm
Panel Area: 3.14sq. M.
Material: Steel
Package: Flight Case
Flight Case Size: 1.2 * 1.2 * 1.4m
Tube Chip Color: Full Color
Display Function: Video Display
Display Type: LED Video Display
Application: Hotels
Certification: UL
Pixel Pitch: 4.8mm
Pixel Configuration: 3528SMD
IP Rating: IP23
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
