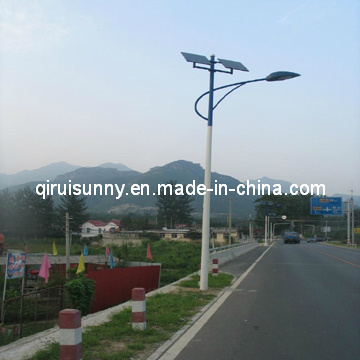

LED Solar Street Light

LED Solar Street Light
Price: US $ 500-1500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

LED solar street light

 Brightly LED solar street light that utlise free energy from sun

30W LED light can replace 120W sodium light
complete  led solar street light system

CREE LED chips 140lm/w
5 years warranty for solar street light system



Deatails of LED SOLAR STREET LIGHT Parts

1.  Solar panel: we have a Strategic Partner with long-term relationships, panel conversion efficiency can be up to 17%; 20 years life, 5 years guarantee.

2.  Battery: we can supply both lead-acid and gel type, and our battery supplier is also selected by us after long-term test and practice, reliable, and of high quality; over charge and over discharge protection ;8~10 years life, 3 years guarantee.

3.  Pole: our pole is overall hot-dip galvanized, coating color according to your requirement, with stainless steel fasteners, safter than welding tpye; 20 years life, 10 years guarantee.

4.  LED street light: 50000 hours life, 5 years guarantee.

1> LED chip is American Bridgelux with 120-130LM/watt

2> Constant-current power supply and control system intergrated

3> After 10 years of operation the luminous flux of our LEDs is about 90% of initial levels.

5.  Intergration design of power supply and control system.

1>     There is a dimmer ( round part ) to adjust the light brightness

2>     Full power & half power function: when we make the dip to "high", it will work full power in this time period, when we make the dip to"low",it will work half power in this time period. And it will start another circle after 12 hours if there is still power input.

3>      Remote control function: light is made as dip switch control the energy-saving mode, but once light test there is remote control signal, it will  come into remote control mode. ( usually make 200 sets or so as a whole system, we can control it through telephone wires, internet wires or wireless )

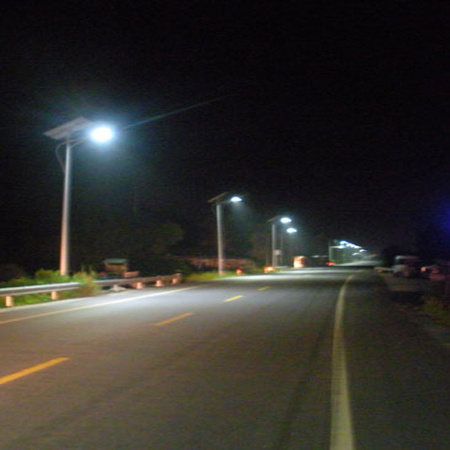

LED SOLAR STREET LIGHT PROJECTS


Parameter of 5M 30W LED SOLAR STREET LIGHT





Name Description Life Warranty
LED lamp 30WLED street lamp, 30 pcssuper brigtness American Bridgelux  LEDs 130lm/w to 140LM/W 50000hrs 5years
30luxon the floor 6m high, 20luxwhen in half power
Color temperature: 4000K~5000K
Lamp size; 540*360*90, weight 6 kgs .
Solar controller 12V/5A solar charge controller 4~5 years 3 years
water-proofsolar digital programmable intelligent controller, switch on/off by light & time,  can set full power , 1/2 power and 1/3 power working .
Pole and solar  bracket  5m, with solar panel frame, hot-dip galvanized, 3.0mm thickness, coating according to client's requirements , up diameter 75mm , down diameter 135mm .  10 years 5 years
Solar panel 100W : 100W * 1piece,  efficeincy > 17% ,  size :1195 × 541 × 35 *1 pcs , 8kgs* 1 pcs  20 years 5 years
Conversion efficiency: 17%
Battery  80AH : 80AH*1piece, deep recycles GELstorage battery 10 years 5 years
Size:329*172*225mm * 1pcs , weight 28 kgs
Battery box engineerning plastic box , anti-corrosion , waterproof 10 years 5 years
Accessories 7m cables, nails ,  fasteners etc. 10 years 5 years
Working time Work 10 to 12 hrs a day ,  6hrs full power + 6 hur half power working, last  3 days overcast and rainy days .  Totall
Wind resist 150Km/h
Prod Model: QRSTL
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Charging Time (',H): 6
Usage: Street
IP Rating: IP65
Voltage: 12/24V
Certification: CE
Light Source: LED Lamp
Cell Type: Deep Recycles Gel Storage Battery
Haining Qiruite Photoelectric Co., Ltd. was founded in 2001 and specialized in producing of solar water heaters(mainly), solar lights. In addition, we also have the capacity of researching, developing, designing, manufacturing and installing large scale solar-heat-collector projects and its central-control system. Our factory covers an area of 28, 000 square meters and has an annual production capacity of 100, 000 solar water heaters.
We trust product quality is our life. Therefore, we have got the certificates of Solar keymark, CE, ISO9001: 2000 and CCC. Our production line include over fifty working procedures, and we manipulate strictly under the measure requirements and working order. Our products are exported to many countries with good honor, such as EU, North America, Middle East, South Africa, Southeast Asia and etc.
We can guarantee high product quality. According to different individual requirements such as area, climate and consumption level, more and more productions come into the market from Qiruire. All our successes are based on the research and analysis of the market. If you are interested in any of our products, please feel free to contact us without hesitation. and we are looking forward to having opportunities to become your future honor supplier.
