TECHNICAL SPECIFICATIONS
Power supply: 90-240V AC 50/60Hz
Power consumption: 180W
DMX-control-channels: 9
DMX-512-connection: 3-pin XLR
Number of LED: 14 high MCD 4 in 1 8W RGBW LEDs
25° Beam angle
Dimensions: 310X270X230mm
Weight: 3.5 kgs
1. DMX 512 protocol
Nine DMX channels:
Channel 1: Red from small to big brightness(dimmig)
Channel 2: Green from small to big brightness(dimmig)
Channel 3: Blue from small to big brightness(dimmig)
Channel 4: White from small to big brightness(dimmig)
Channel 5: Master dimmer from small to full brightness
Channel 6: Strobe from slow to fast
Channel 7: Dimmer, color macro
0-30 dimmer on at CH1/CH2/CH3/CH4
31-255 color macro, the brightness can be adjusted by the master dimmer at CH4
Channel 8: Dimmer, increasing brightness, then decreasing brightness, colors following one by one
0-85 dimmer on at CH1/CH2/CH3/CH4
86-169 increasing brightness, then decreasing brightness, the running speed can be adjusted by CH8
170-255 color following one by one, the running speed can be adjusted by CH8
Channel 9: Running speed adjustments
When CH7 at 86-169 or at 170-255, the speed adjustment works
2. Sound active
Press the FUN button, till BEAE shows in the LED display, confirm by the the button ENTER, then the item will run to the beat of music.
3. Auto
Press the FUN button, the following functions can be achieved by the button ENTER:
AUTO: Run the preset shows;
CF00: Increasing brightness, then decreasing brightness, the speed of increasing brightness, then decreasing brightness can be adjusted by the buttons of UP and DOWN from 00 slowest to 99 fastest.
CCO8: Color changes, the speed of color changes can be adjusted by the buttons of UP and DOWN from 00 slowest to 99 fastest.
CS99: Color selections, the color selections can be done by the buttons of UP and DOWN from 00 to 99.
R000: Press the button FUN five seconds, till R000 shows in the LED display, the red color brightness can be adjusted by the buttons UP or DOWN;
G000: Press the button FUN five seconds, till G000 shows in the LED display, the green color brightness can be adjusted by the buttons UP or DOWN;
B000: Press the button FUN five seconds, till B000 shows in the LED display, the blue color brightness can be adjusted by the buttons UP or DOWN;
Feature:
Electronic power supply AC 90-240V 50/60Hz
Full Master/Slave operation in any operational mode,
Color strobe effect and long life operation

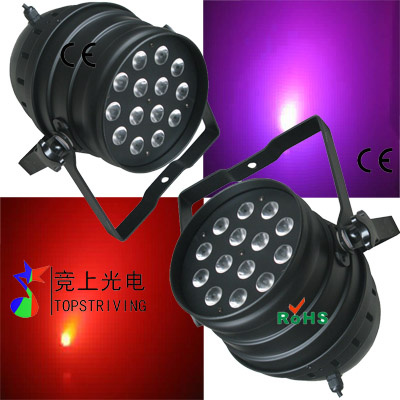

Black housing with 14*four in one RGBW 8W high MCD LEDs
Producing various colors, red, green, blue, yellow, white, pink, purple, cyan
Low heat, Long Life LEDs (100, 000 hrs. )
Operational Modes: DMX 512 protocol, Auto, sound active, master/slave
Color strobe effect slow to fast, electronic dimming from 0-100%
Uses 9 DMX Channels
Stand Alone, Master/Slave
Linkable via 3-pin XLR cable, hanging brackets included
4-digital LED display
Dimensions: 310*270*230mm
Weight: 3.5 kgs
Trade Terms:
1. Payment Terms: By T/T or western union or paypal
2. Delivery time: 40'HQ container within 4 weeks
3. Shipping method: DHL, UPS, FedEx, TNT door to door service, by sea, by air, etc
4. OEM&ODM: Accepted.
5. Packing: Carton packing or fight case optional.
6. MOQ: 10PCS
7. Warranty time: Full 2 year
Our Service:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. OEM&ODM, any your customized lightings we can help you to design and put into product without any charges.
3. Promised After-sales Service.
4. Definitely high brightness with good material inside.
5. Customised LED Quantity Design.
We are looking forward to your long term business relationship with us!
|
