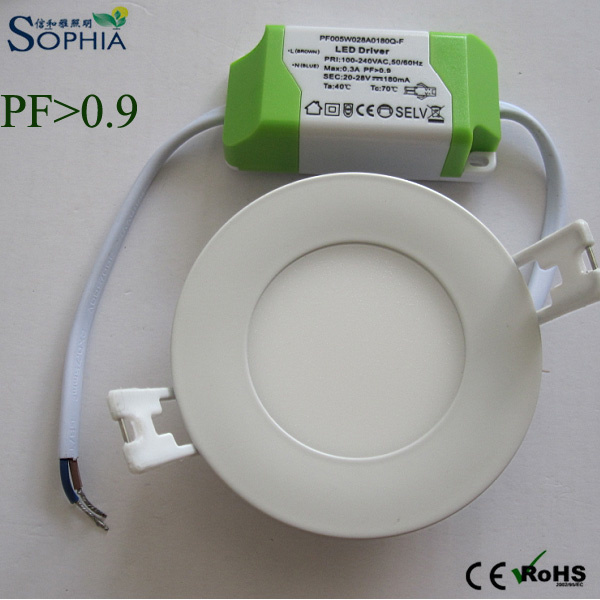

Home LED Light Products LED Panel, Panel Light, Slim Panel, Modern Panel, Thin Panel

LED Panel, Panel Light, Slim Panel, Modern Panel, Thin Panel

LED Panel, Panel Light, Slim Panel, Modern Panel, Thin Panel
Price: US $ 7-7.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
LED panel light, led panel, panel light;
Item No.: SY85PLR-5/ SY120PLR-9/SY172PLR-12/SY225PLR-18/SY270PLR-22.
Power consumption(W): 5W/9W/13W/18W/20W;
Luminous flux (Lm): 250Lm/450Lm/600Lm/1080Lm/1200Lm;
LED type: High power SMD;
Power factor: ≥ 0.9;
Input voltage (V): AC100-240V 50~60Hz;
CRI(Ra): ≥ 80;
Color temperature (K): 3000K 4000K 5000K 6000K;
Average beam angle (10%): : 112° ;
Material:
Aluminum frame, excellent power supply, high power SMD 2835, high light transmission PMMA;
Working temperature (C): -20~40C;
IP rating: IP20:
LED life span (H): 50000H:
Dimension(mm): 85*22, 122*26, 172*26, 223*26, 272*26mm(OD*H);
Ceiling hole (mm): 75mm
Application:
General lighting, decorative lighting, supplementary lighting for office, meeting room, show center, malls, stores, shopping center, hospitals, banks, living room, restaurants, shops.




Item No.

SY85PLR-5

Power consumption(W)

5W

Luminous flux (Lm)

200Lm

LED type

High power SMD

Power factor

≥0.9

Input voltage (V)

AC100-240V 50~60Hz

CRI(Ra)

≥80

Color temperature (K)

3000K 4000K 5000K 6000K

Average beam angle (10%):

112°

Material

Aluminum frame, excellent power supply, 30pcs high power SMD 2835, high light transmission PMMA.

Working temperature (ºC)

-20~40ºC

IP rating

IP20

LED life span (H)

50000H

Dimension(mm)

85*22mm

Embed hole size(mm)

75+/-5mm

Net weight(kg)

150g/pc

Packing (pcs/carton)

40PCS/Carton

Outer carton Size (mm)

550*320*205mm

Application

General lighting, decorative lighting, supplementary lighting for office, meeting room, show center, malls, stores, shopping center, hospitals, banks, living room, restaurants, shops.

Prod Model: SY85PLR-5/ SY120PLR-9/SY172PLR-12
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Type: High Power SMD
Material: Aluminum Frame,High Power SMD 2835, Pm
LED Life Span (H): 50000h
IP Rating: IP20
Power Factor: 0.9 or More
Warranty: Three Years
Light Source: LED
Appearance: Round
Type: Embedded
Certification: CCC
Emitting Color: 3000k 4000k 5000k 6000k
Housing Material: PMMA
Base Material: Aluminum
Voltage: AC100-240V 50~60Hz
Beam Angle: 112
Shenzhen Sophia lighting Co., Ltd was founded in 2009, which specializes in researching, developing, producing and exporting first class LED professional lighting and Transformers. Our products are produced with CE & RoHS compliance which include LED Headlight, LED Emergency light, LED Search light, LED Pool light, LED Explosive proof light, Toroidal transformer, EI transformers and so on.

The main advantages of SOPHIA LED lightings and transformers are stable quality, delicate workmanship, high-efficient, long-lifespan. The most fortune of Sophia is our skilled and loyal workers, they concentrates on workmanship and quality, these ensures we can do like we promise. Sophia Lighting runs strictly according to ISO9001: 2008 quality control system. Most of lightings were designed by our experienced R&D team, many of these veterans have 10-15 years experience in lighting and Power supply. SOPHIA has made various toolings for LED Headlight, LED Emergency light, LED Pool light, LED Search light and transformers. For all raw materials, from LED chip, power supply, copper wire to screw, box, we inspect carefully and insist use brand one, quality one. From soldering to wire, we try to improve our workmanship. Safety and durability are our most import principle. All products go through strict quality controlling procedures and aging test process to make sure all the lamps with stable quality and good performance.

With advanced management, professional team, unique design, excellent quality, reasonable price, rapid delivery and all-around services, SOPHIA products have been well-accepted all over the world, especially very popular in Europe, America and Asia markets.

Adhering "good reputation, customer is supreme, long time partners" business principle, with the idea of "Honesty, Quality, Innovation, Efficiency" to serve customers all over the world. We will keep on developing new products, improving quality and service, to make more contributions in low carbon age.
