LED Pendant light will be the best choice of the residential and commercial lighting, which advantages are:- Newest design combined the Modern art and advanced LED lighting technology together
- Magic and soft lighting effect
- Epistar Chip, high luminous flux 85LM/W
- DC crossing for connection driver ad lamp, which is safer and convention
- Long lifespan >50,000 Hours
- Internal driver, High PF>0.90
- High CRI, Ra>80
- High thermal conductivity aluminum design, excellent heat dissipation
- Easy installation, saving cost
Product Overview

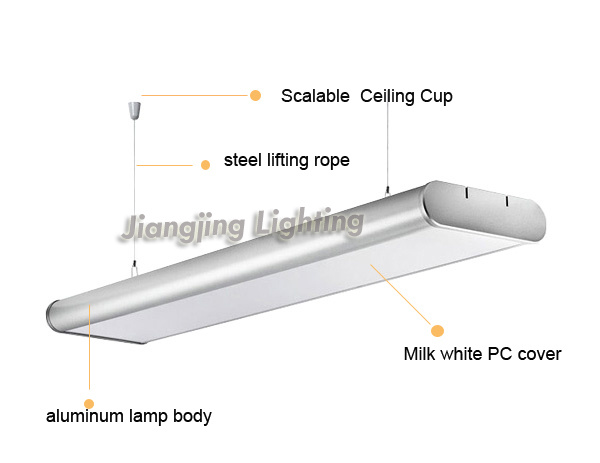

LED office light designed with elegant appearance adopts high bright LEDs as light source, separated driver and LED to achieve the advantages of high efficiency, energy saving, long lifespan.
Lamp shell adopts cold rolled sheet which formed by punching, bending, welding, and surface treatment is sprayed with anticorrosive polyester powers or sliver paint, which is durable.
Product Features
Leading LED driver design, overlong lifespan;
Wide input oltageAC85-265V, global using;
Adopting high thermal conductivity aluminum design, good heat dissipation, small light failure and long lifespan;
With no need for brackets, easy for installation, convenient to spread;
No lead and mercury, energy saving and environment friendly.

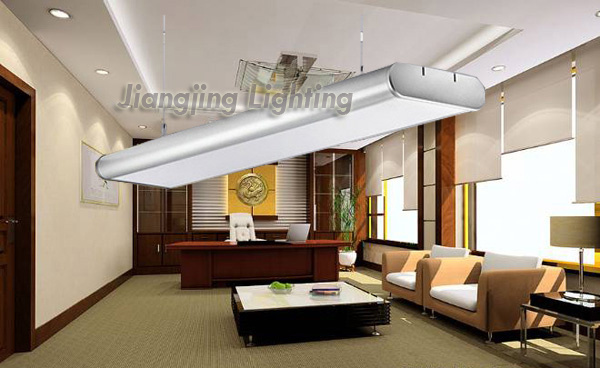

Application places:
Mainly used for office lighting.
Widely used at office, plants, shopping malls, hospital, supermarkets, and so on.Installation Instruction:
- Drill 4 holes on the ceiling;
- Make rubber plug into the holes;
- Fix lock line 1 on the ceiling mounted device, threading steal wire rope from lock line1;
- Use self-tapping screws to fix mounted device on the ceiling;
- Install linear lamp.
Notes
1. This product is indoor lamps, no waterproof function. Forbid using outdoor or moist places;
2. This product has no dimmable function. Please don't use it with dimmer;
3.Disconnect power switch before installation;
4.Store products in cool, dry and clean environment if unused for long time;
5.For non-artificial fault, please don't repair it privately and return it to manufacturer for technical analysis and maintenance.
6. All these parameters will have some change as products upgrade, after the change without further notice. Any inconveniences please understanding.
|
Item No. |
Watt |
Voltage |
Dimmable |
LED Source |
Dim. |
|
(W) |
(V) |
(pcs) |
(mm) |
|
JJ-LPL-40W |
40W |
AC85-265V / AC110V/220V |
No / Yes |
SMD 2835 200 LEDs |
L1195*W68*H80 |
|
JJ-LPL-50W |
50W |
AC85-265V / AC110V/220V |
No / Yes |
SMD 2835 300 LEDs |
L1190*W140*H100 |
|
JJ-LPL-80W |
80W |
AC85-265V / AC110V/220V |
No / Yes |
SMD 2835 384 LEDs |
L1195*W80*H178 |
Shenzhen Jiangjing Lighting Co., Ltd is a manufacturing enterprise with national high technology, we devotes to researching and developing new products with advanced technology, and has rich experience in the field of commercial lighting and special biological application lighting. "Being strict with quality, producing top-quality products", adhering to this faith, all designs of our productsabide by Electric Security Standard of Europe and America. Through scientific matching and design for lamp, light source and electrical equipment, Jiangjing Lighting do the best to improve the lighting effect, reduce energy intensity and increase product's service life, to providing customers with the best lighting solutions, as well as supporting environmental protection and comprehensive energy saving.

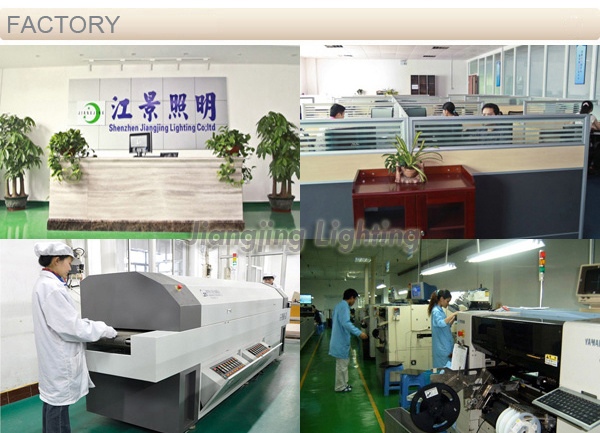

Jiangjing Lighting own full sets of advanced professional manufacturing equipments and inspection equipment, together with high level of technology talented person, a variety of LED lamps produced here pass the international CE, RoHS, FCC certifications. With good reputation, we establish friendly relationship of cooperation with many different companies from North America, Europe, Southeast Asia and other countries, and become their long-term trusted partner step by step.
In the future, Jiangjing Lighting will promote the development and application of advanced lighting technology, carry out our faith and promise with expert spirit! Jiangjing is always ready to provice customers with the best service! !
