Basic Info.
Model NO.: PF1102-LED23
Light Source: LED
Appearance: Square
Type: Hanging
Emitting Color: RGBW
Certification: CE
Housing Material: Glass
Base Material: Metal
Voltage: 12V
Beam Angle: 60°
Export Markets: Global
Additional Info.
Trademark: NM
Packing: Export Package
Standard: 300X595X8.5MM
Origin: China
HS Code: 9405409000
Production Capacity: 5000pieces/Month

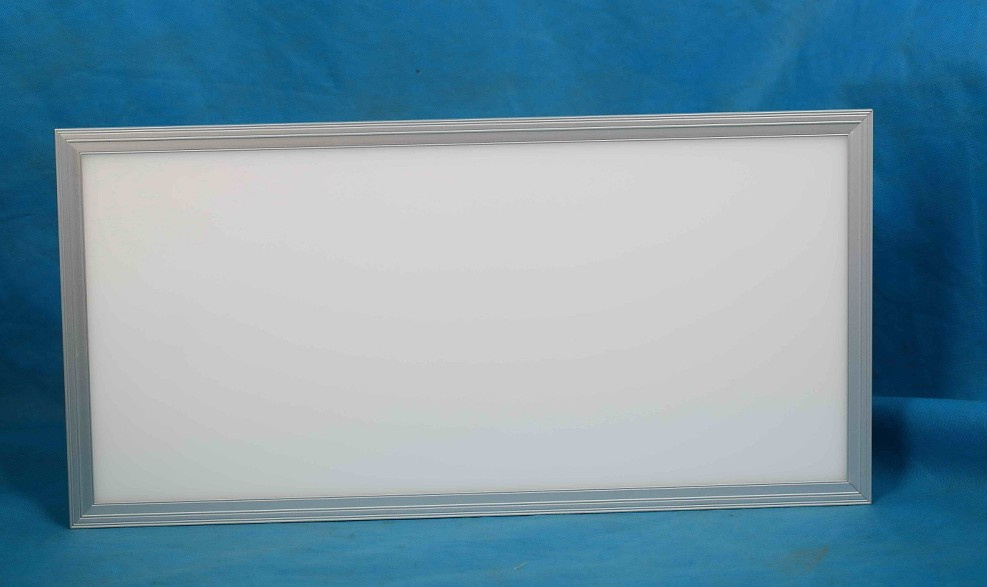

LED panel light
Iterm No.: PF1102-LED23
Power: 23W
Size: 300X595X8.5MM
Cover Material: Aluminum Alloy + PMMA
Luminous Output (lm): 1400lm
LED Type: SMD5630
LED Qty: 50PCS
Beam angle: 113 degree;
Lifespan: More than 25000 hours
Color Temp (CCT): 6000K
Color Rendering Index (Ra): More than 70
Operation environment: -20 ~ +40
Storage Temperature: -30 ~ +70
Voltage/Frequency: 90 ~ 264VAC 50/60Hz/,
Input Voltage: DC30V
Power factor: More than 0.9
Character Description
1, High brightness SMD LED as light source;
2, Superior aluminum alloy dissipation material, artistic appearance and good dissipation.
3, Energy Saving, at the same brightness condition, it saves 70% energy than ordinary lamps.
4, Excellent thermal management and choice aluminum, length the life span of the light
5, No stroboscopic, LED constant current design efficiently reduces the light decay.
6, Quickly start and the light is natural and soft
7. Indoor use only.
8, Easy to install. Can replace the traditional lighting directly.
Suitable Use Place
Office lighting, speciality stores lighting, business lobby lighting and industry lighting, library lighting and Museum lighting
| Spec | Item Number | Power(W) | Input(V) | LED (PCS) |
| 600*600*10mm | WD-SPL6060-36 | 36W | AC100-240 | 192 |
| WD-SPL6060-48 | 48W | AC100-277 | 242 |
| WD-SPL6060-54 | 54W | AC100-277 | 288 |
| 300*1200*10mm | WD-SPL12030-36 | 36W | AC100-240 | 192 |
| WD-SPL12030-48 | 48W | AC100-277 | 242 |
| WD-SPL312030-54 | 54W | AC100-277 | 288 |
| 620*620*10mm | WD-SPL6262-54 | 54W | AC100-277 | 288 |
| WD-SPL6262-48 | 48W | AC100-277 | 242 |
| WD-SPL6262-36 | 36-40W | AC100-240 | 192 |
| 300*600*10mm | WD-SPL6030-36 | 36W | AC100-240 | 192 |
| WD-SPL6030-18 | 18W | AC100-277 | 96 |
| 300*300*10mm | WD-SPL3030-18 | 18W | AC100-277 | 96 |
| 600*1200*10mm | WD-SPL12060-72 | 72W | AC100-240 | 384 |
