LED panel light, led light panel, led ceiling light, panel light
Keywords: Led panel light, led lighting panel, led ceiling, led panel, panel, led ceiling light
Features:
1. Energy saved up to 50% high brightness, even lighting output
2. New high efficiency and reliable external driver
3. Low electricity consumption. No Flickering, no humming.
4. Installation: Recessed, mounting, suspending
5. Green environment protection, lead-free materials, conforming to RoHS.
6. No RF interference
Application:
1. Hotels, Factory and Office
2. Conference Rooms, Commercial Purpose
3. Residential buildings, Schools, Colleagues and Universities
4. Hospitals
Physical Details:

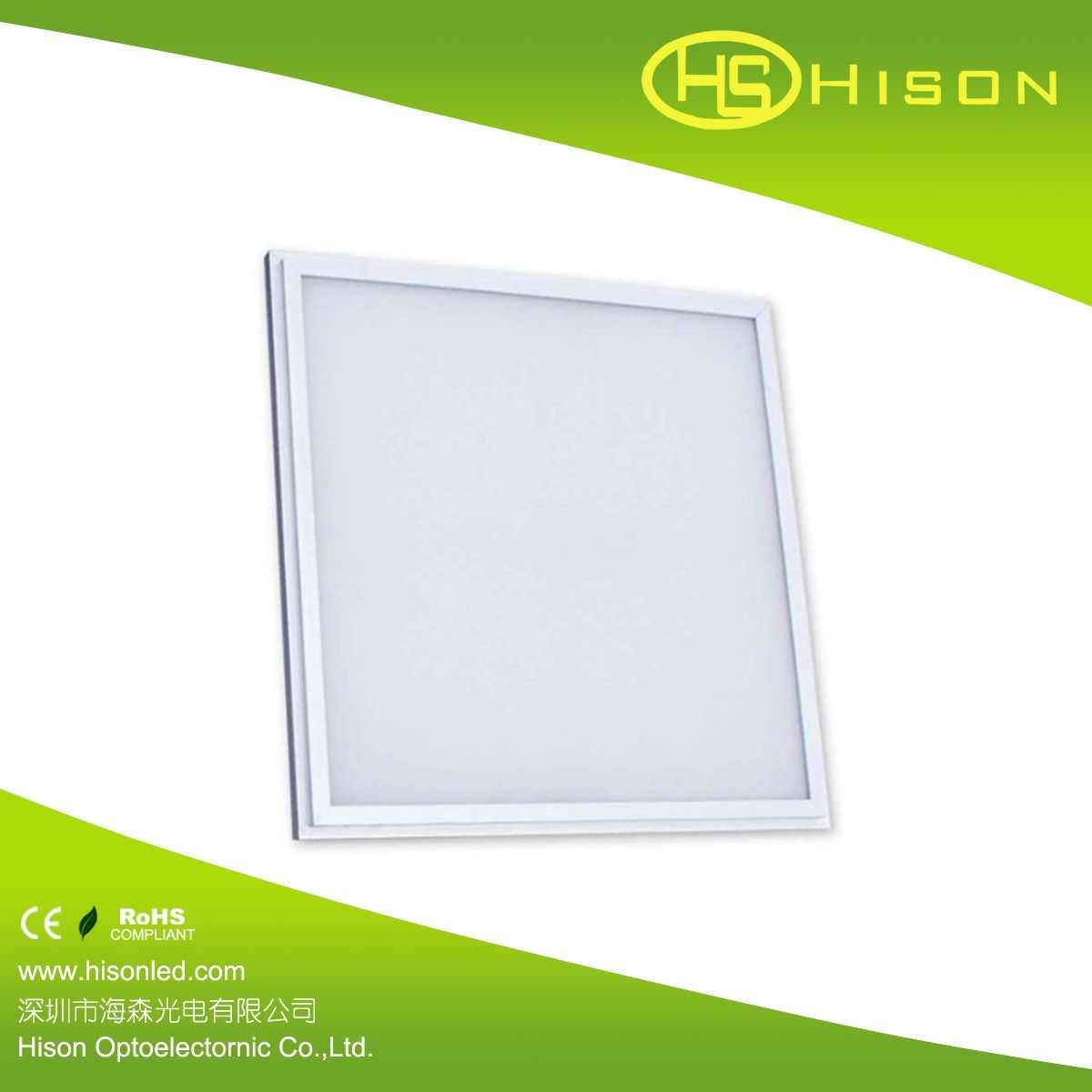

Product Name: LED Light Panel 300X300
LED Type: 3528 SMD
Materials: White painting Aluminium frame and Acryl
Product Size: 295X295X10.4mm
Inner package size: (L/W/H)350*350*60mm (2PCS/inner package)
Carton size: (L/W/H)705*340*200mm (12PCS/carton)
Net weight: ≤ 1.35kgs
IP Grade: IP44
Installation way: Recessed, mounting, suspending
Storage temperature: -30° C~80° C
Operating temperature: -20° C~50° C
Warranty: 3 years
Approvals: CE, RoHS
Optical Details:
Light source: 3528 SMD Epistar chips
Emitting color: Red, yellow, green, blue, white, warm white
Max. Lumens per lamp:
5 lm/LED (red 619~635nm)
5 lm/LED (yellow, 584~595nm)
5.5 lm/LED (green, 512~528nm)
6 lm/LED (blue, 463~475nm)
7 lm /LED (white 6000-6500K, Commercial white 4000-4500K)
6.5 lm/LED (warm white 2800-3200K)
Luminosity: 70 Lux (2m distance)-white
Color temperature: Warm white 3000-3200K, daylight white 6000-6500K, Commercial white 4000-4500K
Beam angle120°
CRI80~85 (white), 70~75 (warm white), 76~79(commercial white)
Lumen maintenance at 10, 000hrs: 95%
Average life time: 50, 000hrs
Electrical Details:
Input Voltage: AC 85-276V, 50Hz~60Hz
Operating Constant Voltage: DC24V with external driver
Operating Current: /
Max. Power consumption: 9.5 W
Operating driverconstant Voltage: DC24V with external driver
Compatible with common anode RGB controller: Available
Dimmable: Available
Ordering Information:
Order NumberDescription
RG2427-300X300-M: Warm white, LED light Panel, DC 24V, 295*295*10.4 mm
RG2427-300X300-W: DaylightWhite, LED light Panel, DC 24V, 295*295*10.4 mm
RG2427-300X300-C: Commercial white, LED light Panel, DC 24V, 295*295*10.4 mm
RG2427-300X300-R: Red, LED light Panel, DC 24V, 295*295*10.4 mm
RG2427-300X300-G: Green, LED light Panel, DC 24V, 295*295*10.4 mm
RG2427-300X300-B: Blue, LED light Panel, DC 24V, 295*295*10.4 mm
RG2427-300X300-Y: Yellow, LED light Panel, DC 24V, 295*295*10.4 mm
