Led light manufacturers and factory

Home LED Light Products LED Panel Light Bulb LED Lamp

LED Panel Light Bulb LED Lamp

LED Panel Light Bulb LED Lamp
Price: US $ 1.4-1.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal,Western Union

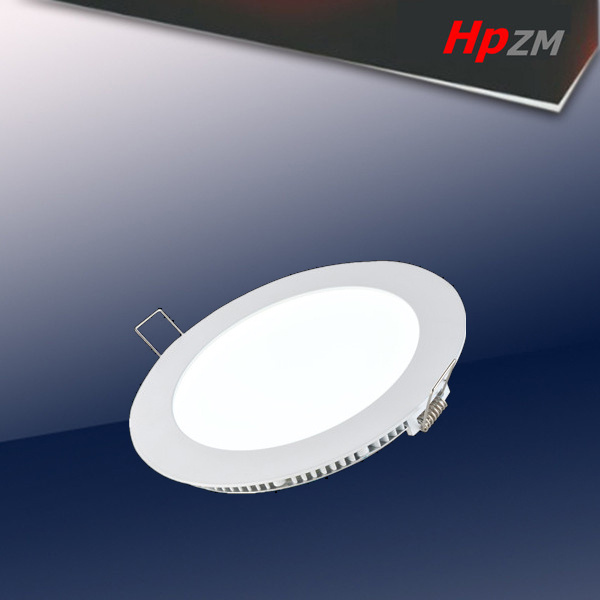

High Quality  LED Panel light LED Lamp
High Brightness LED Panel Light,3 years warranty LED Panel Light,Energy Saving LED Panel Light LED lamp

 Model No                                                                       Technical Data                      Specifications Chips Spec
      Input Voltage  Power Power Factor   CCT Lumen CRIDismension    Hole SizeMateral ModelPCS
HP-LED ROUND PANEL AC85-265V3W≥0.92700-8000K300 lm≥75Ra φ 85*20mmφ 75mmAL+PMMA+LGPSMD 283515
AC85-265V6W≥0.92700-8000K600 lm≥75Ra φ120*20mmφ110mmAL+PMMA+LGPSMD 283530
AC85-265V9W≥0.92700-8000K900 lm≥75Ra φ146*20mmφ135mmAL+PMMA+LGPSMD 283545
AC85-265V12W≥0.92700-8000K1200lm≥75Ra φ170*20mmφ160mmAL+PMMA+LGPSMD 283560
AC85-265V15W≥0.92700-8000K1500lm≥75Ra φ200*20mmφ185mmAL+PMMA+LGPSMD 283575
AC85-265V18W≥0.92700-8000K1800lm≥75Ra φ220*20mmφ210mmAL+PMMA+LGPSMD 283590
AC85-265V24W≥0.92700-8000K2400lm≥75Ra φ240*20mmφ225mmAL+PMMA+LGPSMD 2835120
HP-LED SQUARE PANEL AC85-265V3W≥0.92700-8000K300 lm≥75Ra φ 85*85*20mm75*75mmAL+PMMA+LGPSMD 283615
AC85-265V6W≥0.92700-8000K600 lm≥75Ra φ120*120*20mm105*105mmAL+PMMA+LGPSMD 283730
AC85-265V9W≥0.92700-8000K900 lm≥75Ra φ146*146*20mm135*135mmAL+PMMA+LGPSMD 283845
AC85-265V12W≥0.92700-8000K1200lm≥75Ra φ170*170*20mm155*155mmAL+PMMA+LGPSMD 283960
AC85-265V15W≥0.92700-8000K1500lm≥75Ra φ200*200*20mm185*185mmAL+PMMA+LGPSMD 284075
AC85-265V18W≥0.92700-8000K1800lm≥75Ra φ220*220*20mm205*205mmAL+PMMA+LGPSMD 284190
AC85-265V24W≥0.92700-8000K2400lm≥75Ra φ240*240*20mm225*225mmAL+PMMA+LGPSMD 2842120
Installation:
1. Fix the hanging board to the ceiling with screws
2. Install the LED driver and fix the panel light to the hanging board with screws
3. Connect the power supply and start

Feature:
1. Beautiful and clean,easy installation,different fixture color is available
2. High brightness and high luminous efficiency SMD2835 LED as light source
3. High quality imported PMMA light guide plate,ensure the light uniform and soft,no dark space
4. Adopting superior aero aluminum alloy,high heat dissipation design,will effectively extend the service life of light source
5. Adopting outside power supply with wide input voltage,constant current output,no flicker,no glare,no radiation
6. CE, RoHS approved,safe and reliable
7. Long life time, up to 30,000 hours

Applications:
1. Commercial and exhibition locations
2. Hotel,shopping mall
3. Conference/meeting room
4. Office, residence,etc



Prod Model: led panel lamp
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color Temp.: 2700-7000k
Lifespan: 30000-50000h
Power: 3-24W
CRI: >83
LED Chip: 2835
Light Source: LED
Emitting Color: White
Dimmable: Without Dimmable
Type: Embedded
Base Material: Metal
Certification: RoHS
Voltage: 85V-265V
Housing Material: Aluminum
Appearance: Round and Square
Beam Angle: 120
Yueqing Huipu lighting Co., Ltd is located in the electric city of China, and specialty engaged in the production of energy conservation and environmental protection lighting products, covering office lighting, household lighting, outdoor lighting, LED lighting, electric light source, and other series, has the rich production experience and strong technical force, has a number of independent research advanced lighting products technical facilities and technical personnel team. The company process equipment is advanced, the product quality is reliable, the product has passed the authentication: China ENERGY LABEL, The European Union CE, LVD, EMC and RoHS, Germany attestation such as TUV. Now we have brand "HPZM" ", leading products electronic energy saving lamps, LED lighting products, absorb dome light, and other series about more than 200 varieties.

Yueqing Huipu lighting Co., Ltd with excellent quality, the high quality service, good prestige, in the fierce competition. "HPZM" lighting product have been selling to Europe, south & North America, Australia, South Africa and southeast Asia, which has enjoyed a good reputation from customers and professionals in the field, successfully established industry brand. Now, with company tenet of "excellent quality, good faith, developing, innovation", our company is providing wide high-quality lighting product and perfect specialized lighting service for customer with full enthusiasm.
