Specifications
1. Materials: Alumimium Alloy and PV
2. Power: 18W

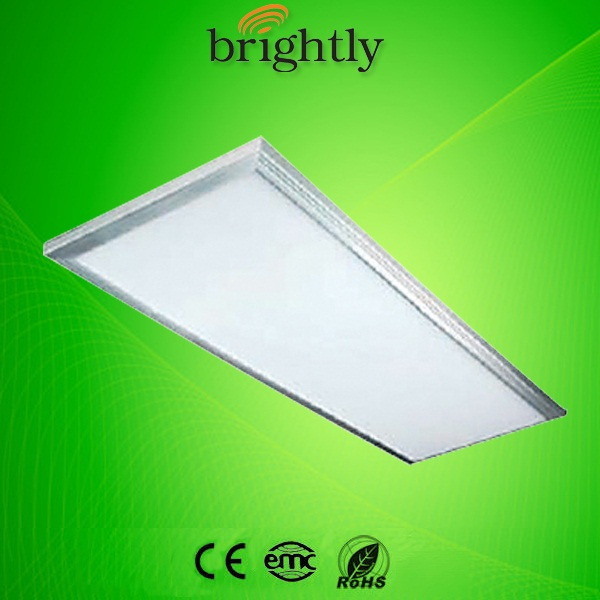

3. Commodity: Led panel light
Specifications:
FEATURES:
1. LED Panel 300x1200 type
2. LED QTY: 420pcs
3. Panel Power Consumption: 18W
4. Light-emitting angle: 120°
5. Life: ≥ 40, 000 hours
6. Package
Outer Carton: 1350*380*85mm (1pcs/box)
Net weight of one tube: 4.5kg
Gross weight: 6.6Kg/Carton
ABOUT US:
1. We are a manufacturer in Zhejiang Province, China
2. We have nearly 10 years of experience in the production and R&D of energy saving lamps, LED
Lamps and lighting fixtures
3. Our products are welcomed in Europe, America, Australia, etc
| Model number | HT-PL360S18 | HT-PL312S36 | HT-PL612S65 |
| Input Voltage | 85-265V | 85-265V | 85-265V |
| Power Factor | >0.90 | >0.90 | >0.90 |
| LEDquantity | 224 Pcs | 420 Pcs | 840 Pcs |
| LED consumptions | 18(W) | 36(W) | 65(W) |
| LED luminous efficiency | 80 ~90 lm/W | 80 ~90 lm/W | 80 ~90 lm/W |
| Color Temperature | 2700K-6500K | 2700K-6500K | 2700K-6500K |
| Color Rendering index | Ra>80 | Ra>80 | Ra>80 |
| IP Rating | __ | __ | __ |
| LED Working life-span | 30000hrs | 30000hrs | 30000hrs |
| Certificate | CE RoHS emc | CE RoHS emc | CE RoHS emc |
| Beam angle | 120(°)degree | 120(°)degree | 120(°)degree |
| Material | Aluminium | Aluminium | Aluminium |
| Product size | 600 X 300 X15mm | 1200X 300 X 15mm | 1200 X 600 X 15mm |
| Packing measurement | __ | __ | __ |
| CTN QTY | __ | __ | __ |
| Gross Weight | __ | __ | __ |
| Net Weight | __ | __ | __ |
| Warranty | 3 Years | 3 Years | 3 Years |
Huateng Electrical is one of the most developed manufactures in shangyu, China. It was established in 2011 and occupies 7, 000suqaremeter production area where more than 100 employees are working. We specialized in producing LED Lamps/Lightings/otherdoor lamps. The annual production in more than 6, 000, 000PCS.
With the advanced processing methods high quality control system, with complete certificates, our products have been continuously exported to Austrial/Europe/America. Both our reputation and sales performance is highly valued by our customers.
Certificates: BSCI ISO9001 SAA C-TICK CE RoHS ERP TUV GS
It is our honor to provide the customer a satisfactory service and to meet their requirements.
