Product Details:
Light Source LED
Item Type Panel Lights
LED Light Source epistar
Warranty(Years) 2
Input Voltage (V)AC100-240V
Lamp Power (W)45
Lamp Luminous Flux(lm)4000
Lamp Luminous Efficiency(lm/w)89
CRI (Ra>)70
Color Temperature (CCT)Cool White
Working Lifetime (Hour)50000
Lamp Body Material PC
IP Rating IP54
Certification CE, EMC, LVD, RoHS
Place of Origin Chongqing, China (Mainland)
Brand Name neutral
Model Number BQ-PBC-6060/3014
Colorwhite, warm white
Voltage AC110-240V
Place of OriginGuangdong, China (Mainland)
Brand Name BANQ
Life 50, 000h
Model Number BQ-PBC-6060/3014
Input Voltage AC110-240V
Beam Angle(° )120
LED Quantity624
LED ChipEpistar
Detailed Product Description

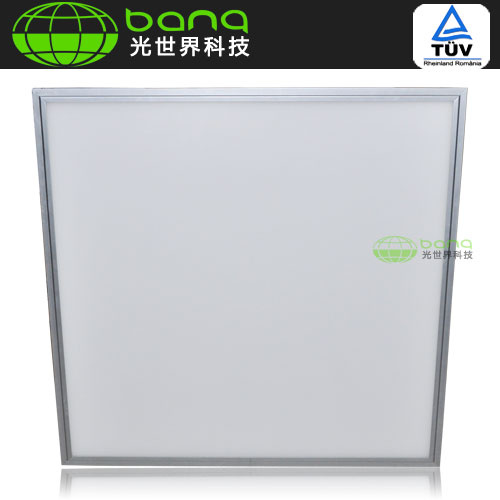

4000lm 600*600 LED panel CE TUV UL approved, super slim only 12mm; PF>0.95; Use super bright 3014 SMD LED; Better than 3528 SMD LED
4000lm 600*600mm LED panel CE TUV UL approved, super slim only 12mm; PF>0.95; Use super bright 3014 SMD LED; Better than 3528 SMD LED
We also have a series LED panel light with high output and good price for your choose
The advantages of our LED panel please refer to below:
1: Higher lumen output, we adopts 3014 SMD LED, the output of 3014 is higher than 3528 in the market;
2: Higher cost performance, the cost to get the same lumen output is cheaper than the market having now;
3: Lower lumen decrease, the lumen decrease of 3014 is lower than 3528 in the market;
4: Special frame design to make the structure steadier than the one in the market;
5: Super slim, the height is only 12mm, thinner than the product in the market.
6: Imported light guide plate: We adopts imported Mitsubishi light guide plate to get a better performance
|
Name |
Source |
Power |
Lumen output |
Input Voltage |
Power Factor |
Efficiency |
Color |
Package information |
|
300*300*12mm led panel |
308pcs 3014 |
20W |
1800±100LM |
AC100-240V |
>0.9 |
85-90lm/w |
white |
1pcs/carton;375X375X65mm;3KG |
|
300*600*12mm led panel |
312pcs 3014 |
20W |
1800±100LM |
AC100-240V |
>0.9 |
85-90lm/w |
white |
1pcs/carton;675X375X65mm;5KG |
|
595*595*12mm led panel |
480pcs 3014 |
35W |
2900±100LM |
AC100-240V |
>0.9 |
85-90lm/w |
white |
1pcs/carton;675X675X65mm;7KG |
|
595*595*12mm led panel |
600pcs 3014 |
42W |
3450±100LM |
AC100-240V |
>0.9 |
85-90lm/w |
white |
1pcs/carton;675X675X65mm;7KG |
|
600*600*12mm led panel |
432pcs 3014 |
32W |
2500±100LM |
AC100-240V |
>0.9 |
85-90lm/w |
white |
1pcs/carton;675X675X65mm;7KG |
|
600*600*12mm led panel |
624pcs 3014 |
45W |
4000±100LM |
AC100-240V |
>0.9 |
85-90lm/w |
white |
1pcs/carton;675X675X65mm;7KG |
|
620*620*12mm led panel |
480pcs 3014 |
35W |
2700±100LM |
AC100-240V |
>0.9 |
85-90lm/w |
white |
1pcs/carton;675X675X65mm;7KG |
|
300*1200*12mm led panel |
432pcs 3014 |
32W |
2500±100LM |
AC100-240V |
>0.9 |
85-90lm/w |
white |
1pcs/carton;1275X375X65mm;7KG |
|
300*1200*12mm led panel |
624pcs 3014 |
45W |
4000±100LM |
AC100-240V |
>0.9 |
85-90lm/w |
white |
1pcs/carton;1275X375X65mm;7KG |
|
6inch led panel |
110pcs 3528 |
15W |
700±50LM |
AC100-240V |
>0.9 |
85-90lm/w |
white |
1pcs/carton;285X235X50mm;1.5KG |
|
10inch led panel |
210pcs 3528 |
15W |
700±50LM |
AC100-240V |
>0.9 |
85-90lm/w |
white |
1pcs/carton;400X350X50mm;3KG |
Shenzhen Banq Technology Co., Ltd., is a professional LED manufacturer with strong capability in R&D, Production, Marketing and customer service. We have a variety of products, which can be classified in two catagories:
First is LED general illumination lights which including LED bulb, LED tube, LED strip/Ribbon, LED spotlight, LED down light, LED SMD spotlight, Auto light, wall washer, as well as LED module. Second is indicating LED for different applications which including high/low power LED series. Super flux LED (Piranha) series, SMD LED series, and super-bright through-hole LED series. Our products are widely used in General Illumination Industry, Auto Industry, Electronic Display Industry and signal Electronic iIndustry etc.
Established in 2002, with a total area of 16000 square meters, BANQ has about 1000 well-trained employees. With our dedicated staffs and rich experience in LED field, we can quickly respond to customer needs, providing customized products and services to help customers succeed. At present, we export 90% of our prodcuts Europe, North America, and some other countries.
"Quality First, Customer Paramount, Service Uppermost! " is our principles. In order to make the life of modern people more wonderful, BANQ is willing to form a close ally with customers through our superior LED products, excellent and value-added service.
