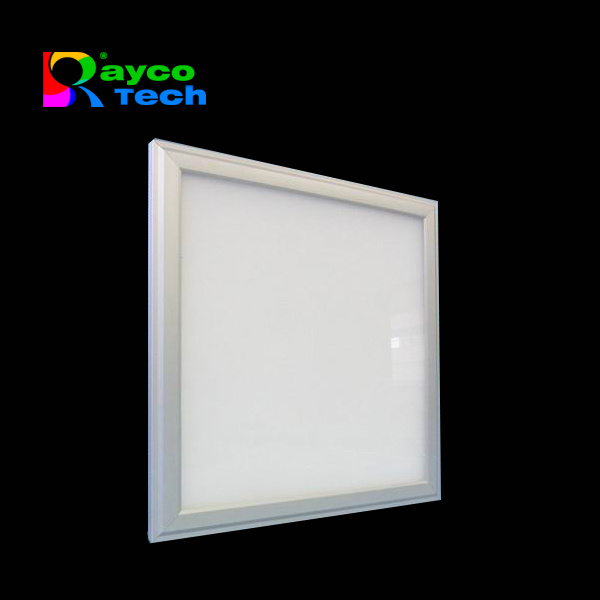

12w led panel light 300*300mm
Features:
1). Good illumination uniformity, High efficiency, More than 0.95.
2). Ultrathin thickness, Unique design.
3). Saving energy up to 50%, Long lifespan 50, 000hrs.
4). Eco-friendly: No flickering and noise, no UV or IR.
5). Special circuit design, each group of led work separately.
6). 3 years warranty.
7). FCC, CE, ROHS, UL pending.
Parameter:
Input voltage: 85-265Vac
Power consumption: 12W
LED type: SMD3014, 100PCS
Luminous flux: >732lm
Color: Warm white/Nature white/Pure white/Cool white
Color temperature: 2800-3500K, 4000-4500K, 5000-5500K, 6000-6500K
Life time: >50000h
Operating temperature: -20 º C to 40 º C
Storage temperature: -20 º C to 85 º C
Humidity operating: 10-80%
Humidity storage: 10-80%
Certifications: CE, FCC, RoHS, UL pending
Power Factor: >0.95
Flux at 2M: >70Lux
IK Code: IK01
IP Code: IP41
Luminaires Class: Class II
Weight: 1.15kg
Applications:
Our LED panel light, Can be widely used in the meeting room, office, school, hospital, factory, restaurant, office, hotel, supermarket, fields or open spaces and the other architecture.
LED Panel Light, Square LED Panel Light, Rectangular LED Panel Light. RGB LED Panel Light, Dimmable LED Panel Light, IR Dimmabel LED Panel Light, Round LED Panel Light, LED Small Panel Light, LED Panel Light for Project, Decorative LED Panel Light, LED Panel Light for Decorative, LED Decorative Panel Light, China LED Panel Light, High Quality LED Panel Light, Ultra Slim LED Panel Light, Slim LED Panel Light, Super Slim LED Panel Light, 300*300MM LED Panel Light, 300*600MM LED Panel Light, 300*1200MM LED Panel Light, 600*600MM LED Panel Light, 600*1200MM LED Panel Light
Model No. |
Power |
Input voltage |
LED Type |
Dimensions(mm) |
PF |
CCT(K) |
Lumen(Lm) |
CRI |
RT-LP-6060-54 |
54w |
AC85-265V |
SMD3014/480pcs |
600*600*11 |
>0.95 |
2800-6500 |
>3820 |
>75 |
RT-LP-6060-45 |
45w |
AC85-265V |
SMD3014/420pcs |
600*600*12 |
>0.95 |
2800-6500 |
>3184 |
>75 |
RT-LP-6060-36 |
36w |
AC85-265V |
SMD3014/320pcs |
600*600*11 |
>0.95 |
2800-6500 |
>2613 |
>75 |
RT-LP-60120-72 |
72w |
AC85-265V |
SMD3014/640pcs |
600*1200*12 |
>0.95 |
2800-6500 |
>4100 |
>75 |
RT-LP-60120-54 |
54w |
AC85-265V |
SMD3014/480pcs |
600*1200*12 |
>0.95 |
2800-6500 |
>3510 |
>75 |
RT-LP-30120-54 |
54w |
AC85-265V |
SMD3014/480pcs |
300*1200*11 |
>0.95 |
2800-6500 |
>3510 |
>75 |
RT-LP-30120-36 |
36w |
AC85-265V |
SMD3014/320pcs |
300*1200*11 |
>0.95 |
2800-6500 |
>2484 |
>75 |
RT-LP-15120-27 |
27w |
AC85-265V |
SMD3014/240pcs |
150*1200*11 |
>0.95 |
2800-6500 |
>1782 |
>75 |
RT-LP-15120-18 |
18w |
AC85-265V |
SMD3014/160pcs |
150*1200*11 |
>0.95 |
2800-6500 |
>1100 |
>75 |
RT-LP-3060-27 |
27w |
AC85-265V |
SMD3014/240pcs |
300*900*11 |
>0.95 |
2800-6500 |
>1788 |
>75 |
RT-LP-3060-18 |
18w |
AC85-265V |
SMD3014/160pcs |
300*900*11 |
>0.95 |
2800-6500 |
>1238 |
>75 |
RT-LP-3030-18 |
18w |
AC85-265V |
SMD3014/160pcs |
300*300*11 |
>0.95 |
2800-6500 |
>1127 |
>75 |
RT-LP-3030-12 |
12w |
AC85-265V |
SMD3014/100pcs |
300*300*11 |
>0.95 |
2800-6500 |
>732 |
>75 |
RT-LP-3030-10 |
10w |
AC85-265V |
SMD3014/80pcs |
300*300*11 |
>0.95 |
2800-6500 |
>590 |
>75 |
