Advantages:
1.Advanced thernal design, integrated die-casting forming, thermal contact resistance, with effective heat dissipation;
2.High-performance constant current driver power, no flicker, help protect vision;
3.10-100W Available;
4.IP65 RATE,safe in outdoor applications;
5. No bad glare and stroboscopic, no flicker;
6, Long life span > 50,000 hours
7. Easy to install and low cost of maintenance.
Applications:
1. Free Workshop ( Freight house / Warehouse);
2.Sports Center ( Gym/Stadium/ Swimming pool /Squares );
3.Service Area(Supermarket / School / Subway / Tunnel );
4. Public Area(Dressing room//Park//Parking Lot/Hospital).
| Model |
| ELT-FL-001-10W | ELT-FL-001-20W | ELT-FL-001-30W | ELT-FL-001-50W | ELT-FL-001-70W | ELT-FL-001-100W |
|
|

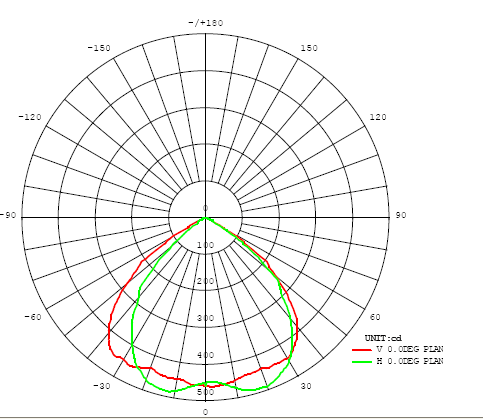

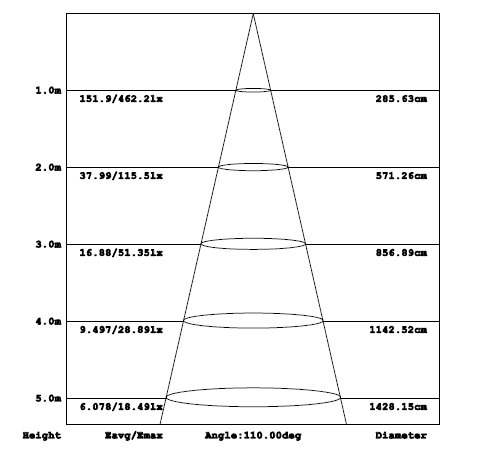

| Bean Angle |
| 120° | 120° | 120° | 120° | 120° | 120° |
| Light Flux(Lumen) |
| 800-900LM | 1600-1800LM | 2400-2700LM | 4000-4500LM | 5300-6000LM | 7000-8000LM |
| Light efficiency of the lamp |
| 90 Lm/W | 90 Lm/W | 90 Lm/W | 90 Lm/W | 85 Lm/W | 80Lm/W |
| Dimension |
| L130*W110*H40 | L180*W150*H50 | L235*W190*H65 | L280*W235*H80 | L370*W310*H95 | L370*W310*H95 |
| LED Brand |
| EPISTAR | EPISTAR | EPISTAR | EPISTAR | EPISTAR | EPISTAR |
| Driver |
|
|
|
|
|
|
|

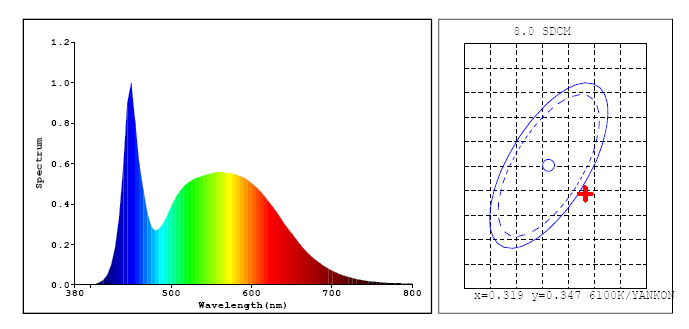

| Color temperature |
| 2700K-6500K | 2700K-6500K | 2700K-6500K | 2700K-6500K | 2700K-6500K | 2700K-6500K |
| Housing Material |
| High heat conductive Aluminum Alloy Housing |
| Input Voltage |
| AC90-265V/50-60Hz |
| Input Power |
| 10W | 20W | 30W | 50W | 70W | 100W |
| IP Grade |
| IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Power Factor |
| >90% | >90% | >90% | >90% | >90% | >90% |
| CRI |
| ≥75Ra | ≥75Ra | ≥75Ra | ≥75Ra | ≥75Ra | ≥75Ra |
| Life Span |
| > 50,000 hours | > 50,000 hours | > 50,000 hours | > 50,000 hours | > 50,000 hours | > 50,000 hours |
| Working Temperature |
| -20~40 |
| Net Weight |
| 0.50KG | 0.85KG | 1.45KG | 2.15KG | 4.2KG | 4.3KG |
| Packing: |
| 24pcs/ctn | 12pcs/ctn | 5pcs/ctn | 5pcs/ctn | 2pcs/ctn | 2pcs/ctn |
| CTN dimension: |
| 310*240*395mm | 650*210*215mm | 310*240*395mm | 310*240*395mm | 310*240*395mm | 310*240*395mm |
| Warranty |
| 3 Years | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
Everlight is specialized in R & D, production and marketing of LED lighting since 2005. Our main products are: LED spotlight, PAR light, AR111, down light, panel, tube etc.
Our company covers an area of 2, 000 square meters, passed and strictly enforces the requirements of ISO9001 Quality management system to promote all products through CE, RoHS, some products have passed UL, TUV certifications.
Everlight has exported to Europe, America, Middle East, South Africa, South-East of Asia for 10 years and our brand "CH-ELITE " has got good reputation from our clients because of our high cost-effective products and good service, and we always welcome ODM and OEM projects.
We have established strategic business cooperation with CREE, SHARP, PHILIPS & LG Innoteck.
Everlight always provide high quality products and good services for all our customers, and to stick to social returns and social responsibility.
