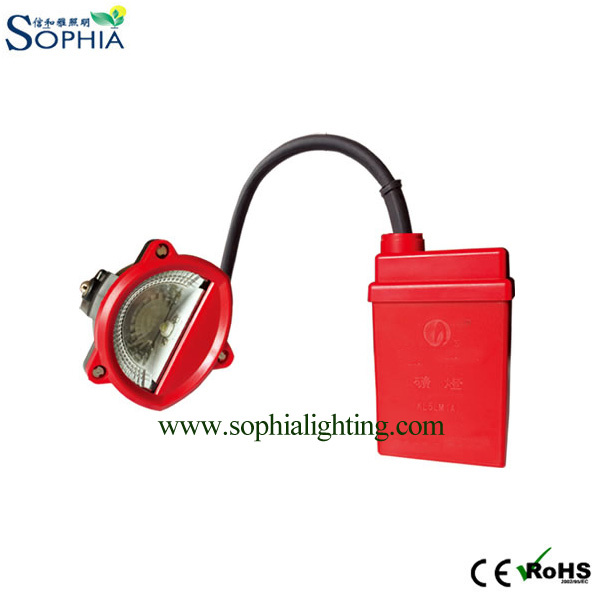

Item No.: SY5LM-B;
Rated capacity: 5Ah;
LED ( main) voltage: 3.7V;
LED (Auxiliary) voltage: 3.7V;
LED ( main) current: 60mA;
LED (Auxiliary) voltage: 250mA;
Battery life: >600 times;
Lighting: >20 hours;
Begin lux: >2000 Lx;
11 hours lux: >2000Lx;
G. W.: <0.58kg;
Dimension: 62.6*37.5*112mm;
Main feature:
High power SMD LED, super brightness, long life time(50000 hours);
Li-ion battery: Fully sealling, no leakage, no memory, no pollution.
Safety: Overcharge protection, current control, discharge protection, short circuit protection, overheating protection.
Red led: Charging; Green led: Finish charging.
|
Item No. |
Rated Volt
(V) |
Capacity
(Ah) |
Main LED Volt |
Auxiliary LED Volt |
Main LED current(A) |
Auxiliary LED current(A) |
Battery
Life(times) |
Lighting
hours |
Begin Lux |
11 hours Lux |
G.W.
(kg) |
Dimension
(mm) |
|
SY6LM |
3.7 |
6 |
3.7 |
3.7 |
0.06 |
0.15 |
≥600 |
≥16 |
≥2000 |
≥2000 |
≤0.63 |
82*42*128 |
|
SY5.5LM-A |
3.7 |
5.5 |
3.7 |
3.7 |
0.06 |
0.18 |
≥600 |
≥25 |
≥2000 |
≥2000 |
≤0.63 |
82*42*128 |
|
SY5LM-A |
3.7 |
5 |
3.7 |
3.7 |
0.06 |
0.18 |
≥600 |
≥22 |
≥2000 |
≥2000 |
≤0.58 |
79*47*121 |
|
SY5LM-B |
3.7 |
5 |
3.7 |
3.7 |
0.06 |
0.25 |
≥600 |
≥20 |
≥2000 |
≥2000 |
≤0.58 |
62.6*37.5*112 |
|
SY4LM-A |
3.7 |
4 |
3.7 |
3.7 |
0.06 |
0.18 |
≥600 |
≥20 |
≥2000 |
≥2000 |
≤0.63 |
83*42*120 |
|
SY4LM-B |
3.7 |
4 |
3.7 |
3.7 |
0.06 |
0.18 |
≥600 |
≥20 |
≥2000 |
≥2000 |
≤0.55 |
79*47*111 |
|
SY4LM-E |
3.7 |
4 |
3.7 |
3.7 |
0.06 |
0.18 |
≥600 |
≥20 |
≥2000 |
≥2000 |
≤0.55 |
83*42*120 |
|
SY1.8LM-A |
3.7 |
1.8 |
3.7 |
3.7 |
0.06 |
0.12 |
≥600 |
≥15 |
≥2000 |
≥2000 |
≤0.20 |
78*74*80 |
|
Feature |
High power SMD LED, super brightness, long life time(50000 hours);
Li-ion battery: fully sealing, no leakage, no memory, no pollution.
Safety: overcharge protection, current control, discharge protection, short circuit protection, overheating protection.
Easy operating: Red led - charging; green led - finish charging. |
Shenzhen Sophia lighting Co., Ltd was founded in 2009, which specializes in researching, developing, producing and exporting first class LED professional lighting and Transformers. Our products are produced with CE & RoHS compliance which include LED Headlight, LED Emergency light, LED Search light, LED Pool light, LED Explosive proof light, Toroidal transformer, EI transformers and so on.
The main advantages of SOPHIA LED lightings and transformers are stable quality, delicate workmanship, high-efficient, long-lifespan. The most fortune of Sophia is our skilled and loyal workers, they concentrates on workmanship and quality, these ensures we can do like we promise. Sophia Lighting runs strictly according to ISO9001: 2008 quality control system. Most of lightings were designed by our experienced R&D team, many of these veterans have 10-15 years experience in lighting and Power supply. SOPHIA has made various toolings for LED Headlight, LED Emergency light, LED Pool light, LED Search light and transformers. For all raw materials, from LED chip, power supply, copper wire to screw, box, we inspect carefully and insist use brand one, quality one. From soldering to wire, we try to improve our workmanship. Safety and durability are our most import principle. All products go through strict quality controlling procedures and aging test process to make sure all the lamps with stable quality and good performance.
With advanced management, professional team, unique design, excellent quality, reasonable price, rapid delivery and all-around services, SOPHIA products have been well-accepted all over the world, especially very popular in Europe, America and Asia markets.
Adhering "good reputation, customer is supreme, long time partners" business principle, with the idea of "Honesty, Quality, Innovation, Efficiency" to serve customers all over the world. We will keep on developing new products, improving quality and service, to make more contributions in low carbon age.
