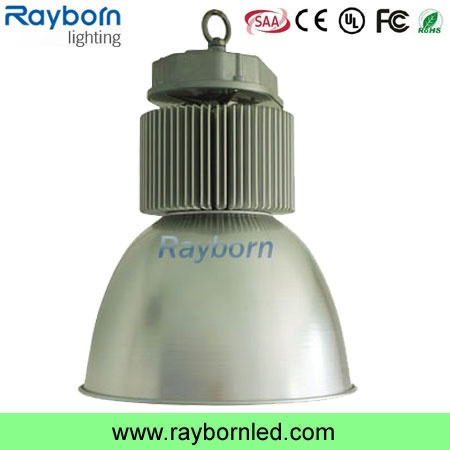

LED Lights China 200W Lamp High Bay (RB-HB-515-200W)

LED Lights China 200W Lamp High Bay ( RB-HB-515-200W )


Product Specifications of 200W LED High Bay Lights:

Item No.:RB-HB-415-200W
Input Voltage: AC 85-265V 50-60HZ
LED Power:200W *1pcs
LED Chip: Bridgelux,Cree
LED Luminous Flux Warm White,Pure White,Cool White
LED High Bay Lighting Viewing Angle: 120 degree
Color Temperature Warm White 3000K~3300K
Pure White 5500K~5700K,Cool White 6500K~6700K
Luminous Flux:18600LM
Color Rendering Index : Ra≥78
Working Temperature: 40oC~50oC
Working Life-span: 50000 H
The color of the lamp shell Silver and Black is available
Certificate CE & RoHS &TUV


200w LED Highbay Lamp Features:

1.Using single powerful LED(30-200W)as the light source, with unique lighting design of Multi-chip integrated single-module; select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.

2.The unique design of radiator which can combine with the lamp box perfectly, diffuse the heat conduction efficiently, so that reduce the temperature of inside lamp, it ensures the LED longlife-span.

3.The surface of radiator is treated by antiseptic and anodic oxidation; with compact structure and aesthetic appearance.

4.Environment-friendly, no air pollution, no lead-free, no-mercury.

5.With high color rendering index which can show a true color of things for people, kinds of light colors are available, meet the requirement of different environment; clear up the depressive mood caused by lower or higher color temperature compared with conventional lamp, make more comfortable for people's eyes which can greatly improve people's working efficiency.

6.Adopted advanced constant current controlling techniques; wide voltage range available and global universal; overcome the lighting instability caused by electric network of ballast and noise pollution; avoid the stimulation and tiredness taking from long-time work.

7.Apply for unique surface treatment technology, welldecorated, novel style, easy to install, lower maintenance cost and wide in application.


200w led hi-bay light Application :

Apply to workshop,factory,warehouse,building,highway toll stations,supermarkets, stadiums and other places of lighting required


Competitive Advantage of 200W High Bay LED Lighting:

1. CE & RoHS & TUV approved, Quality Guaranteed

2. Imported original Cree & Bridgelux & Epistar chip, superior light source

3. OEM & ODM welcome,  independent R&D ability,  patent design.

4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed

5. Reliable quality & credit,  3 years warranty and 50.000 hours lifespan



Installation information of 200W LED High Bay Lamps:

1.Check all the parts and accessories of LED High bay light;
2.Must cut off the power supply before installation;
3.Make sure the light is fixed tightly to the surface of place for installation ;
4.Connect the power line of light with power supply, then switch on the power.
5.When the highbay light is working, it must be kept vertical downward.

We have CE,RoHS,SAA,UL certifications and so on.So you can rest assured to use our products.



Ageing Test of High bay led lighting:

All our LED high bay lights will be tested before shipping,so that we can ensure the quality and light performance.Because we must be responsible to our customers.


We are a professional LED manufacturer who specialize in producing LED high bay lights,LED flood lights,LED street lights,LED tube lights,LED bulbs,LED downlights,LED ceiling lights,LED spotlights,LED strip lights,LED panel lights and so on for many years, with mature technology and preferential price.We also have our own factory and a seasoned engineering team.Welcome to visit our factory.Quality is our culture,we only sell high quality products.For good quality and best price,we are your best choice.

200W CREE LED Industrial Light Main Technical Parameters
Item No.:		RB-HB-515CR-200W
Input Voltage:		AC 100~277V
Freqency Range:		50Hz~60Hz
Power Factor:		>0.98
Power Efficiency:		>91%
LED Power		200W
LED Chip:		CREE / Bridgelux
Power Driver:		Mean Well
LED QTY:		36 PCS CREE XML
LED Working Voltage:		DC 42~48V
System Consumption:		210W
LED Luminous Flux	Warm White	19200LM
	Pure White	20340LM
	Cool White	20340LM
Viewing Angle:		120degree
Maximum Illuminance	Height 3M	893LUX
	Height 4M	502LUX
	Height 5M	321LUX
Illuminance Area	Height 3M	Dia.7.99 M  points visible
	Height 4M	Dia.10.7M points visible
	Height 5M	Dia.13.4 M points visible
Illuminance Uniformity:		>0.6
Color Temperature	Warm White	3000K~3500K
	Pure White	5000K~5500K
	Cool White	6500K~6700K
Color Rendering Index		Ra>80
Light Distribution:		LED points visible
LED Junction Temperature:		≤115dgree
Working Temperature:		–40dgree~50dgree
IP Grade:		IP54
Working Life-span:		50000 H
Power Line:		1.0mm three line
Connect Wire	Brown	L
	Blue	N
	Yellow / Green	G
Heatsink	high thermal conductive materials
	phase-change cooling heat dissipation tech
Certificate		CE /ROHS/UL
Net Weight:		8.5KG

1). Rayborn led High Bay lights are adopted Bridgelux 45mil,CREE XTE,LG Innotek integrated chip,which is Pure Copper LED Bracket and Gold Wires.
2). Rayborn led high bay light are adopted 3 years warranty Meanwell constant current waterproof driver.
3). As you know the good heat dissipation is important for the lifespan,so we use the best aluminum heat sink to reduce the decay.So our led high bay light decay rate is just 1% using 10000HRS;
4). LED high bay Light,we have 30W,50W,80W,100W,120W,150W,180W,200W,300W, 400W,and 500W,customized power also available.


Rayborn's Good Service:

1.Your inquirey related to our products or price will be replied within 24 hours.

2.All your inquireies will be well explained by our experienced staff.

3.OEM&ODM,also provide customized service.

4.Distributor ship is available for your unique design and some our current models.

5.We will keep secret for customer sale area,design ideas and all other private information.



FAQ:


Q1: What is the warranty of your led high bay lights?

A:  We offer three and five years guarantee for our LED high bay lights,and we will offer you based on your requirement.


Q2: What color temperature we can choose?

A:  We offer LED high bay lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)

Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K


Q3: Do your led high bay lights can be used in our country?

A: Yes, Our LED high bay light has wide input voltage AC100-240V, and it can be customized too.


Q4: How do you help me to save freight cost?

A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.


Q5: Do you have any MOQ limited?

A: We don't have MOQ,even only one piece LED high bay light you can buy.

Q6: What's the lead time?

A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.

Q7:How do you ship the goods and how long does it take?

A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.

Q8: Do you accept Paypal or Western Union for sample order?

A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.



Pls don't feel hesitate to contact us if our products meet your requirements.Pls give me one enquiry,I will give you ten surprises.Believe me,I am sincere Charmaine.
