Home LED Light Products LED Light Source and High Bay Lights Item Type 240V 120W LED High Bay

LED Light Source and High Bay Lights Item Type 240V 120W LED High Bay

LED Light Source and High Bay Lights Item Type 240V 120W LED High Bay
Price: US $ 168-187/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

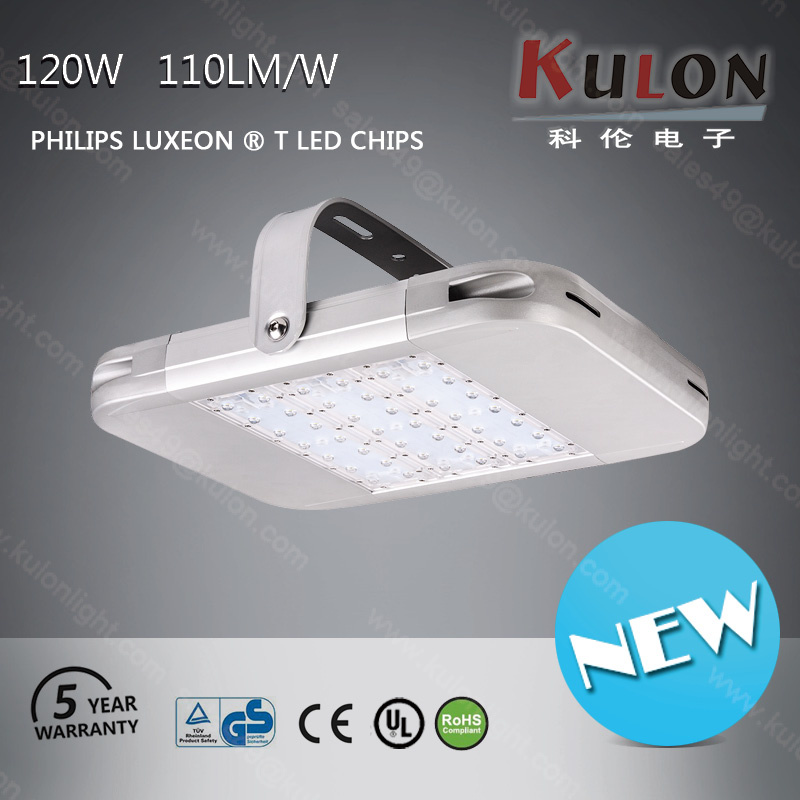

LED Light Source and High Bay Lights Item Type 240v 120W LED High Bay

Product Material:
PHILIPS LUXEON T luminous source
The KULON H-Series LED High Bay Lights are utilizing PHILIPS LUXEON T LEDs. ( Lumens>135LM/W )

Meanwell led driver
Full Range of KULON H-Series LED High Bay Lights are utilizing MEANWELL HLG series high-end driver,
optimal operation stability, lifespan and performance. (0-10VDC, resistance, PWM signal, time dimming available)
Kulon 3rd generetor led moudle
Exquisite design with powerful thermal performance, as well as high reliable waterproof rating.
(All materials are complied with UL standard)

Features & Advantages:
1.  PHILIPS LUXEON T luminous source, up to 135LM/W.
2.  High Reliable MEANWELL HLG driver,(1-10VDC, Resistance, PWM or time dimming function available)
3.  KULON 3rd GENERATION LED MODULE: Exquisite design with powerful thermal performance, as well as high reliable waterproof
4.  Over then 100,000 hours operation life with 5 Years Warranty.
5.  Available for 60°, 90° and 110° beam angle.
6.  K10&IP66 (testing reports available)
7. 10KV surge protection or motion sensor available.
8.  Adjustable mounting bracket or suspension wire mounted hang installation method available
9.  UL, DLC, RoHS, CE, GS, CB certificated is pending.
10.  IES file or Dialux simulation for lighting solution is available.

Specifications:


Model No.

K-GKD120WH

Nominal Wattage

120W

Nominal Voltage

AC 100-240V /277V, 50/60Hz

Maximum Current

AC 0.41A -120V, 0.21A -240V, 0.18A -277V

Driver Efficiency

> 90%

Power Factor (PF)

> 0.95

CCT

3000K 4000K 5000K 5700K

Lumen Output

13200lm

Operating Temperature

-40 ºC to +50 ºC

Ratings

IP66, IK10

Lumen Maintenance

> 60,000 hours-L70(9K),@25 ºC (77 ºF)

Heat Radiator

Anodized Aluminum

Fixture Dimension

439x340 x156 mm(19.4*13.4*6.1 inches)

Fixture Weight

5.2kg(11.5 lbs)

Packing weight

6.1kg(13.4 lbs)


Application:
KULON-H series high bay fixtures were designed specifically to replace conventional lighting in a wide variety of indoor industrial applications;
Their low profile light weight design and versatile mounting options make it ideal for many applications such as:
warehouse, garage, aisle, cold storage, bridge, tunnel and general area lighting

Our services:

Prompt lead time, professional Dialux lighting simulation, perfect after-sales service are our priority,
hope to be your reliable led lighting solution partner.
1. What we do is making you satisfied. Our goal is providing you with right products and come up with correct solutions.
2. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.
Decision for the shipping terms will be made according to your requirements.
3. Delivery time is guaranteed. 2-3 working days for sample order,5-7 working days for regular order(quantity< 100pcs),10-15 working days for mass order(101-500pcs), order >500pcs pls contact us to confirm.
4. Price is negotiable if you have large quantity demand.
5. Package is customized.Usually we use films,foam boxes,cartons and wooden pallet.

Warranty details:
Hangzhou Kulon Electronics Co., Ltd. ("Kulon") warrants this kulon branded hardware product against defects in materials and
workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase.
Kulon provides free repair or replacement within warranty period. KU LO N shall charge against defeats by abnormal storage, useage, connection or change the structure or any commponents of the product.

(Professional Warranty file with stamp and signature will be sent to you if necessary)

FAQ:
1. According to Average or minum lux demands on floor to choose the right watt product
2. Depends on project drawing to make a Dialux simulation to confirm the beam angle and light installation layout
3. Choose the right CCT(3000/4000/5000 or 5700K) for different application place.
4. Confirm the most suitable install method. (pendant mounting, direct mounting or suspended mounting available)

How to achieve intelligent dimming function ?

Our led driver use Mean Well HLG type or Inventronics smart could support all kinds of dimmer:
0-10VDC, Resistance, PWM, Time dimming or DALI
You just need to connect a dimmer to achieve this function.

How to achieve motion sense function?

We could build in a smart motion sensor in driver box to ahieve this function such as:
When used in combination with 1-10V dimmable LED drivers and ballasts, the sensors can achieve 3-step
dimming function, 100%---> low light--->off. And the sensors build in adjustable daylight sensors, very easy to
install and cost-effective.
Prod Model: K-GKD120WH
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: 120W LED High Bay Light
Lens: PC
Applications: Workshop/Garage/Supermarkets
LED High Bay Light Types: Indoors LED High Bay Light
Light Fixture Lnfo: 439 X340 X156 mm, 5.2 Kg
Light Packing Lnfo: 485 X365 X160 mm, 6.1 Kg
LED Chip: Philips Luxeon T
LED Driver: Meanwell Hlg Serials
Power Factor(PF>): 0.95
Fixture Color: Silver
Lamp Body Material: Aluminum Alloy
IP Rating: IP66
Certification: UL
Color Temperature: 3000k 4000k 5000k 5700k
Usage: Workshop/Garage/Supermarket
Lifespan: 60000
Beam Angle: 60/90/110degrees
LED Chips: Philips Luxeon T
