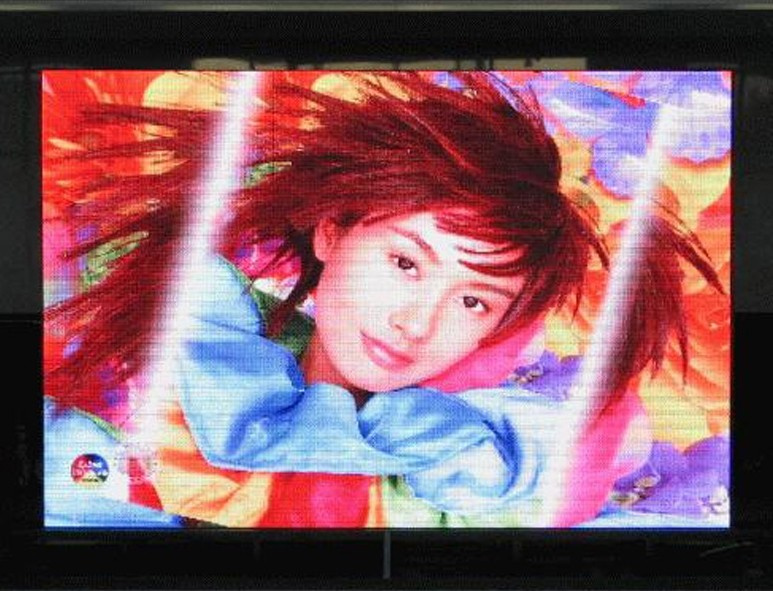

LED Indoor Advertising Display

LED Indoor Advertising Display
Price: US $ 1-2000/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Western Union
Indoor full color led display Product Description Backdrop stage LED screen 1. CE, FCC, RoHS, C-tick, ISO9001: 2009; 2. Brightness: >1700CD/sqm; 3. High Refresh rate: 3000Hz-4800Hz; 4. Viewing angle: 120degree in vertical and 120degree in horizontal; 5. 2 years warranty. 6. long time techical support
P5 3-in-1 SMD indoor full-color LED display
Item Details Parameters
  Physical pixel pitch 5mm
Pixel Pixel Configuration RGB 3-in-1
Module Module resolution 16×32 pixels
Module Size 80×160 mm
  Physical resolution 128×128 pixels
  Cabinet Size 640×640 mm
  Physical density 16384 pixels/cabinet
  Module quantity 32pcs=8(H)×4(W)
Cabinet Material Steel
  Weight 20kg. Approx
  Power supply (50V40A) Quantity 3pcs
  Average power consumption 250W
  Max power consumption 600W
  Brightness 4000 nits
  Brightness adjusted 100 grade by software, or by Auto-optic induced
  Color processing 8-16 bit
  Display color 16 million - 281 trillion
  Color temperature (K) 6000 - 8000K
  Physical density (pixel/M2) 40000
  Whole display flatness less than 1.2mm juncture
  Best view distance 3 - 25m
  View angle Horizontal>160 degree, Vertical>160 degree
  Storage temperature 40 degree to 60 degree
Electricity Working temperature 20 degree to 50 degree
parameter Driving Method Constant driving current, Scan: 1/8
  Refresh frequency Up to 3000 Hz
  Frame rate 75 Hz
  Relative Humidity 10% - 90%
  Protection grade IP31
  Working voltage DC 5V
  Power supply  AC 110V±10%/ 220V±10%
  Average power consumption 500w/per square meter
  Max power consumption 1500w/per square meter
  MTBF 10000 hours
  Screen lifetime >50000 hours
  Control System Linsn
Control   Signal Interface DVI
System Communication distance CAT5 cable<100m, optical/fiber>500m
  Signal transfer mode dot to dot synchronized with computer monitor
Prod Model: P5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cabinet Size: Can Be Customized
Driving IC: Mbi 5020, Mbi5024, Mbi5026, Mbi5041, Mbi5042 etc.
Reflesh Rate: >600 Hz
Control System: Asynchronous or Synchronous
Warranty: 2 Years
Technical Support: Life Long
Training: in House Factory Training and on Site Training
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/8 Scan
Application: Shopping Guide
Pixel Configuration: 1R,1G,1B
Pixel Pitch: 5mm
Certification: CCC
Pixel Density: 40,000 dots / m²
System Operating Platform: WIN XP
IP Rating: IP31
About Hivision

Guilin Hivision Technology Co., Ltd. Was founded in 1994, starting as a spin-off of a Bank Database System with LED display project at Computer Science department of Guilin Electronic Engineering University. Through the years, Hivision has grown from a small startup to a full-fledge LED sign and light manufacturer.

Hivision is an ISO9001 certified LED manufacturer with extensive in-house R&D capabilities.

Why choose Hivisi?

In-house LED package ability

We complete the entire LED manufacturing process in-house. Our fully automated LED production process includes from die and wire bonding to package, populating, wave soldering and so on.

Three-step QC process with 1st class inspection equipments

Our strict QC process involves 3-step:

1. Incoming Quality Assurance -BOM

2. Inspection Process Quality Control -Producing

3. Final Quality Assurance - Finished product

Throughout these process, we conduct brightness, white balance, vibration and turning-in tests starting with modules, then panels and completed displays. Once finished, we perform high-pressure water resistance assessments to conform to IP65 standards.

Lastly, we assemble the LED cabinets for video aging and on-site simulations, as well as aesthetic inspections on cabinets and internal components. And prior to shipment, all spare parts are evaluated one last time.

Backed by heavy investment and a strong R&D team composed of 20 professionals with average ten years' experience covering software, firmware, hardware, and mechanical engineering, we are able to provide to you customized need.

Aftersales service

When you receive your shipment, you will find an array of materials to assist you with installation and operation. Documentation and user manuals, as well as software will provide you with all the information that you need to get your LED displays up and running.

Technical support

Free training for operation, maintenance and trouble shooting before the shipment in factory

Life-long free Technical support through Skype and Teamviewer (remote operating your computer).

We strive to understand, inspire and enable our customers and partners to turn their large image dreams into results with known outcomes. We are keeping the aim to add value, through our industry leading competence, with a complete range of high impact screens for permanent installations as well as the rental and staging markets. If you are looking for a reliable partner to realize your project, Hivisi is the right man for the job.
