Specification
1. Working voltage: DC 3.7V
2. Battery: 3.7V 2700mAH rechargeable lithium-polymer battery
3. Constant Current circuit
4. Led:XP-E R3 White light LED Led2, LED3 high brightness Red LEDs
5. Drop testing: 1.5m
6. Waterproof: IPX5
7. Size: 71.0*71.0*46.5
8. Weight: 150g(net) 160g(gross)
Press and hold
The button for 3s | Light mode | Output Lumen | Distance
(m) | Intensity
(cd) | Run time (hrs) | Power source | weight |
White light
(distance) | High | 195 | 22 | 5581 | 16 | 2900mAH Lithium-polymer battery | 150g |
| Middle | 77 | 9 | 2209 | 53 |
| Low | 11 | 3 | 300 | 120 |
| SOS | - |
| Red light | High | - |
| Flashing | - |
Operation instruction
Press and hold for 3 seconds to switch between white light and red light
White light mode: once press for each mode: High-Middle-Low-SOS-OFF
Red light mode: once press for each mode: High-Flashing-OFF
Switch off the light if it stay at any mode for over 3 seconds With battery Indicator
Shut off automatically without electricity
Battery Indicator
Input:Charging-----The red light flashing
Fully charged----The green indicator light
Charging current: 1A
USB Output: 5V/1A
| Indicator | Green | Green Flashing | Red | Red Flashing |
| Battery level | ≥75% | 40%-75% | 10%-40% | 10≤ |
Product Description

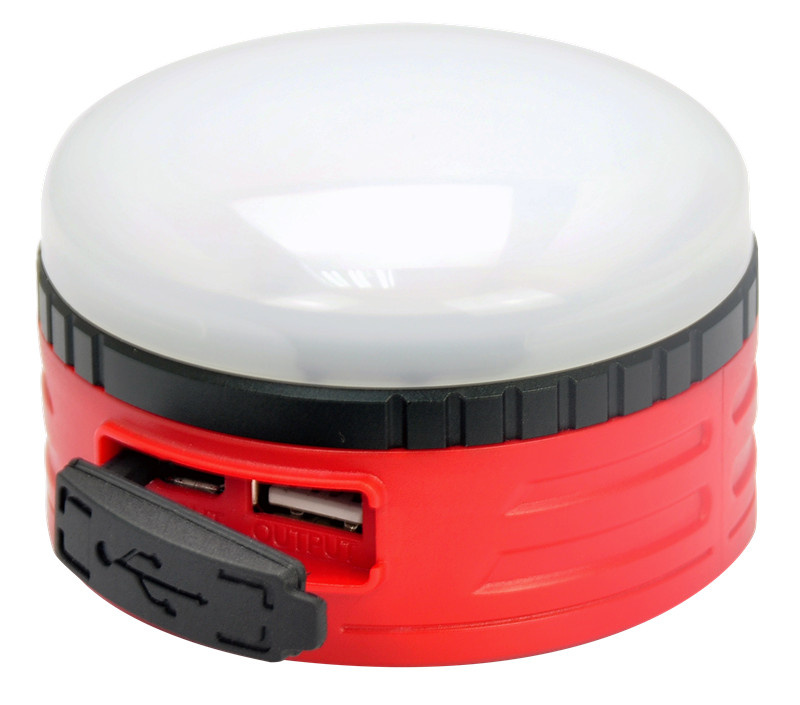

1.Led Camping lantern L4R selling points & Features :
(1)L4R has battery indicator, It can tell you how many power left any time.
(2)L4R has memory function. It can keep mode lighting original.
(3)L4R has 2 UBS,it can output &input and recharging for mobile phone ,camera, etc
(4)L4R is waterproof and explosion-proof.
(5)L4R can stay on the floor and hang with "S" hook.
(6)L4R is finished by ultrasonic technique,it is durable.
(7)L4R has a magnetite on the botton.
Main parts & materials
Lens----PC
Housing, rear cover, hanging hook----ABS+PC
Push-Button, waterproof O ring----silicone
Magnetite----NdFeB
Accessories
Stype hook
1 piece Micro 5p charging cable
Cautions
1. Please protect the lens and lamp body from Scratching.
2. Do not unload the battery, prevent short-circuit cause a fire, explosion, or harmful gases or other problems.
3. The battery replacement shall be done only by either cells supplier or devicesupplier and never be done by the user.
4. The led headlamp should be stored at room temperature, keep the battery with 30%-50% power. If the headlamp has been OFF for a long time, please recharge the battery every 3 month in case of undue discharge.
