Home LED Light Products LED High Bay Light

LED High Bay Light

LED High Bay Light
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union

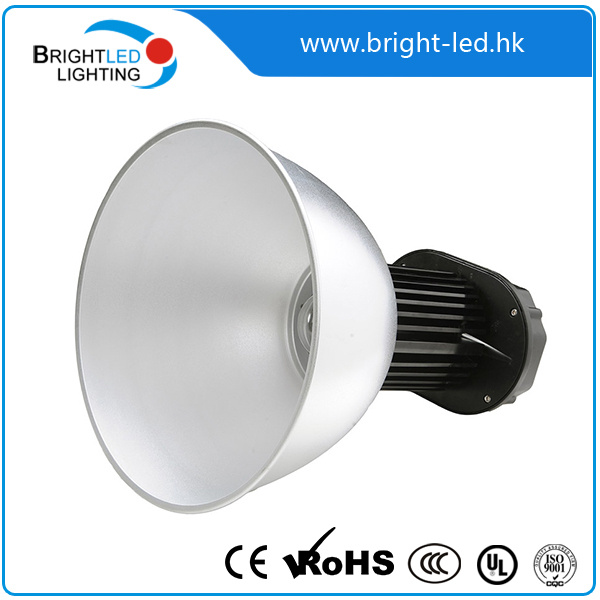

High Lumens Warehouse LED Industrial Lamps

Type: BL-IL-50W-02
Power: 50W/80W/100W/120W/150W/180W
Power factor(PF): >0.9
Light efficiency: >80 lm/w
No UV or IR light radiation
Fixture efficiency: >90%
Color instruction: >80
Color temperature(CCT): 2700-7000K
Luminance decrease: Keep lighting 1000hours decrease1%
The color of the lamp shell: Black/Silvery White
Net weight: 4.4kg
Dimension of the product(dia. * H): Φ 420*501 mm
Dimension of the box: 46*46*31 cm / 53*39*27cm
Quantity (PCS): 2 PCS in a carton

Technical Parameter

Part No.BL-IL-50W-02
Power50W
Led Quantity1P 50W COB Bridgelux Led
Voltage85~265V AC     12V/24V DC
Frequency Range50Hz-60Hz
Power Factor>0.9
Rendering IndexRa>80
Color Temp(K)3000K-7000K
Lumious Flux(Lm)>100LM/W
Led DecayLess than 3% after 1000hrs constand Work
Protection RateIP65
Life time(hrs)50,000
Thermal Resistance0.15°C/W
THD<15%
Warranty3Years
CertificationCE RoHs
DimensionD420*H521 cm

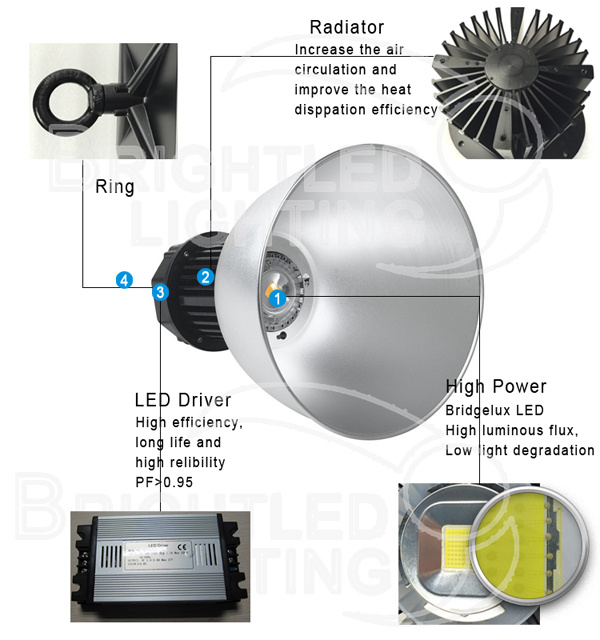

Feature
1.45MIL led chips and high quality power supply are used to ensure long-term reliable and stable working without accident or maintenance.
2. High luminance effect, realizing energy saving by 70% comparing with traditional light source.
3. Amazing Power factor, less harmonic distortion rate
4.Long lifetime over 50,000 hours, one-time investment, long-time payback;
5. Digital constant-power technology adopted , best control of LED street light power;
6. Unique one-time die-casted aluminum shell structure, making  heat dissipation excellent;
7. Stable LED working point, little temperature rise, no brightness decline.

Installation Instruction
When open the package, please check whether the inside is including product,accessory,
label, certificate quality. And please assure that the light is perfect without any damage.
1. Please firstly install the reflector properly on the heat sink, and screw down.
2. Then crew down the hoop into the top cap.
3. Hang the body lamp on the installation site.
4..Please hang the chaining steel wire on another installation device
5.Connect Live Wire/Null Wire/Ground Wire to electric cable properly and switch on.
6.. The wires of LED High bay Light is three-core, the standard size of the wire is 3*0.75mm²or 3*1mm², brown wire is live line, blue wire is null line,


Brightled Lighting Industryt light series
PictureLEDchipPower(w)VoltageColorLumensView angle
BL-IL-01Bridgelux50/60/70/80/90/100/110/120/150/18085-240V ACW/WW/CW80lm/w   120
BL-IL-0290/50

Applications
Workshop, Storages, Factories, Shops, Restaurants, Garages, Supermarket etc

Packing information:
Lamp Boday:
1.Qty:4pcs/Ctn
2.Carton Weight: 22KGS/Ctn
3.Carton size: 52*52*32CM
Reflector:
1.Qty of Ctn:20pcs/Ctn
2.Ctn Weight: 14KG
3.Ctn Size:49*49*47CM


Why Choose Brightled Lighting

1.     Competitive price and relatively high quality.
2.     On time delivery
3.     Great after service

4.     Fast response to the inquiries.
5.     Samples is available.
6.     More than 10 years LED manufacturing experience.



Our advangages:

1. Low power consumption, high lumens
2. Original Bridgelux 45mil led chips, high quality, high brightness
3. Longer life around 50, 000hours
4. High quality pure aluminum, Efficient heat dissipation design, fast heat dissipation
5. Efficient LED driver, Reliable Performance, ROHS, CE compliant
6. Product process exquisite, unique design
7. Light's surface diameter and material thickness are greater than other products on the market
8. Excellent service, comprehensive after-sales service



  Our promise for clients:

 1. Just provide good quality products.

 2. Make sure to give you the most  favorable prices.

 3. Provide 3 years warranty.

 4. Have long term cooperation with our forwarder,  so we can provide you the lowest f  reight and the fastest service.

 5. Have professional engineers to design and develop new led

 lights according to your requirements.

 6. Design the colored boxes for you when you have larger quantity.

 7. Can use your logo and label on our products.

 8. Your inquiry will be replied in 10 hours



 Our serveice:

      1) Your inquiry will be replied in 24 hours
      2) Well-trained and experienced staffs to answer all your inquires in fluent English
      3) Protect your sales area, ideas of design and all your private information



 FAQ:
Q1: Can I have samples to test?
 A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.
Q2: Do you have any MOQ limited?
A: Our MOQ: 1M for white jacket , 50M for colorful jacket
Q3: What's the lead time?
A: Sample :2-3 days.
Mass production: 15-20 days.
Q4:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5 days to arrive.By air,by sea are also acceptable.
Q5: Do you offer guarantee for your products?A: Yes, we offer three years guarantee for the products.
Q6: Do you accept OEM?
A: We have our own brand-Unidax. OEM is also acceptable.

Prod Model: BL-IL-50W-02
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: High Lumens Warehouse LED Industrial Lamps
Light Color: Ww/Cw/Nw
Weight: 4.5kg
Sample/OEM Service: Acceptable
Lumens: >80lm/W
Power Factor: >0.9
Color Instruction: >80
Size: 420*501mm
Lamp Body Material: Aluminum Alloy
IP Rating: IP65
Color Temperature: 2700-7000k
Certification: CE&RoHS
Beam Angle: 50/90/120 Degree

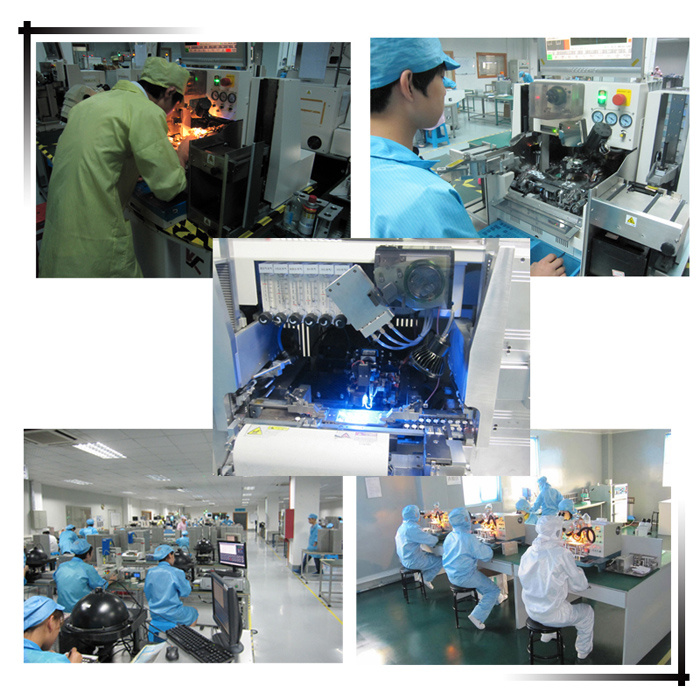

Brightled Lighting Technology Co., Limited, is a national high-tech enterprise of energy saving, focusing on design, R&D, production, export and technical support of LED light source and products.

Brightled Lighting not only has an excellent R&D team and management team, but also has strategic cooperation with experts, consultants, etc in the LED lighting field. Through 11 years development, Brightled Lighting owns core technology and experiences in LED Lighting products development, optical design, mould development, etc. We have developed many series of LED lighting products, including Series universal for both Outdoor and Indoor application, Series for Project and Landscape lighting, Series for Indoor Decoration, Series for Power LED lighting. Most of our products have gained CE, UL, RoHS certificates and so on.

"High quality products and best service" is the first article of our company core values. We regard it as our mission to provide high quality products with the best service at a most reasonable price in the industry and to deal with customers in an honest and responsible manner.

Bright LED Change life Bright.
