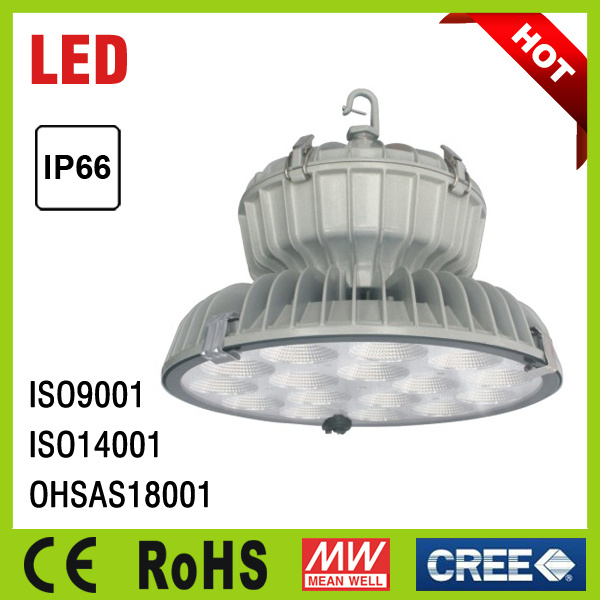

ZY8501 LED high bay light
Ingress Protection: IP66
Application
The product is suitable for use in power statio, petrochemical industry, metallurgy and other indoor and outdoor places.
Characteristics of performance
1. Especially designed for high bay, tall roof, It efficiently utilize the light to 95%. Glare free, have a good performance of illuminance uniformity.
2. Floodlight or spotlight is both available according to mounting height. (8-15meters: Floodlight, >15meters: Spotlight)
3. It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp.
4. The light source is separated from the electrical appliance. This split style with the high efficiency radiator have solved the heating-up problem so that ensure the 100, 000 hours LED lifespan.
5. Equipped world top ranking brand, Taiwan Meanwell electrical appliance with power factor 0.98, make the lamp's performance more stable and efficient.
6. The locking device on the bracket will keep the lamp from shift or trembling during harsh vibration.
7. The shell adopts high-tech surface spraying technology, abrasion resistance and corruption, waterproof, dustproof, suitable to be used in all kinds of environments.
8. Easy to maintain.
| Model No. | Light source | Rated power | luminous flux | Average service life | Replacement Lamps
|
| Metal halide lamp | Electroless lamps | High Pressure Mercury Lamp |
| ZY8501-L60 | LED | 60w | 7225lm | 100, 000 h | 150W | 135W | 175W |
| ZY8501-L80 | LED | 80w | 10016lm | 100, 000 h | 175-250W | 165W | 250W |
| ZY8501-L100 | LED | 100w | 11568lm | 100, 000 h | 250W | 200W | 250-400W |
| ZY8501-L120 | LED | 120w | 12640 lm | 100, 000 h | 250-400W | 250W | 400W |
