Product Description

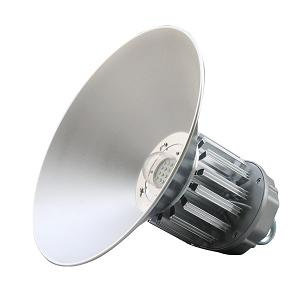

Name: Led high bay light 150w
Advantage:
1)Good heat dissipation: Special phase change dissipation technolgy, long working time:Ta=26, Tj<65ºC, Tc<60ºC.Tj-Tc<15ºC;
2)Light weight: Compared with other high bay light in same power, the weight is 40% less.
3)High efficiency: The efficiency of circuit switching is up to 91%The light utilization rate is up to 85%.
4)High power factor: Up to 0.95.
5)High luminous efficiency: More than 95LM/W.
6)Long life time: LED ≥ 100,000 hours. Power supply ≥ 30,000 hours.
Product Description
Basic Features:
1)Certification: CE, ROHS, UL, TUV and so on.
2)Aluminium Alloy die casting, high efficiency of heat emission and long life time.
3)High pure imported aluminum from Germany as the reflector.
4)New high efficiency constant current driver.
5)No delay start. No noise. No electrical wave, confirming to CE.
6)Environment friendly and no air pollution.
Details: LED High bay light
Main specifications(T=25ºC) |
| Model | FEI205 | FEI207 | FEI209 |
| Input Voltage | AC85-264V 47-63Hz | AC85-264V 47-63Hz | AC85-264V 47-63Hz |
| LED | 24pcs Cree(XM-L) | 30pcs Cree(XM-L) | 44pcs Cree(XM-L) |
| Power | 150w | 200w | 300w |
| LED Efficiency | 85-100Lm/w | 85-100Lm/w | 85-100Lm/w |
Initial Flux | >17000Lm(Cool White) | >20500Lm(Cool White) | >32000Lm(Cool White) |
| >15500Lm(Natural White) | >19200Lm(Natural White) | >30000Lm(Natural White) |
| >14100Lm(Warm White) | >18000Lm(Warm White) | >27500Lm(Warm White) |
| Power Factor | >0.95 | >0.95 | >0.95 |
| Color | Warm white/Natural white/Cool white |
| Color Temperature | 2700-3300k(Warm white) |
| 4000-5000K(Natural white) |
| 5300-7000K(Cool white) |
| Center Illuminance | 2.5M: 1516Lux | 2.5M:1826 Lux | 2.5M: 2526 Lux |
| 5.0M: 375Lux | 5.0M: 453 Lux | 5.0M: 625 Lux |
| 7.5M: 166Lux | 7.5M: 202Lux | 7.5M: 279 Lux |
| Beam Angle | 120 | 120 | 120 |
| Life Span | >50,000 Hours | >50,000 Hours | >50,000 Hours |
| Operating Temperature | -25ºC to +55ºC | -25ºC to +55ºC | -25ºC to +55ºC |
| Storage Temperature | -40ºC to +65ºC | -40ºC to +65ºC | -40ºC to +65ºC |
| Weight | 6.0kg | 7.0kg | 11.0kg |
| Size | Φ500x486mm | Φ500x556mm | Φ500x569mm |
| IP Rating | IP54 | IP54 | IP54 |
| Applications | Factory, indoor stadium, gas station, warehouse, city lighting projects. |
Packaging & Shipping
1. Pack:
Qty per Unit Packing: 1 pcs in a single carton.
Size: Different product has different data.
2. Sample shipping way:
DHL, EMS, FEDEX, UPS and so on. It is changeable.
3. Cargo shipping way:
By sea or by air. Depending on you.
Our Services
1. Before sales:
Confirm the details, reply on time, offer detailed information, meeting the customer's need and so on.
2. After sales:
Follow the production and delivery, feedback and solve your question fast, track regularly, warranty 2-3 year and so on.
Company Information
SHENZHEN FIER lighting Co., Ltd, located in Shenzhen, China, is one of the top ten manufacturers of LED products in southern China.
With CE, RoHS, TUV, FCC, PSE, UL certifications, our products contain LED flood light, LED panel light, LEDhigh bay light, LED tube light and so on.
Capacity is 5,000pcs per day.
FAQ
1. Q: Where is your type of led chip?
A: Cree, Bridgelux, Epistar and so on.
2. Q: What is the type of power supple driver?
A: Meanwell and so on.
2. Q: How long is the production time?
A: Sample: About 5-7 days. Order: 10-15days.
Delivery: 10-40 days after received the deposit.
4. Q: What is the Payment?
A: Payment: T/T, West Union, L/C.
Payment terms: 30% deposit in advance,the balance T/T before the shipment.
Shenzhen Fier Lighting Co., Ltd., is located in the beautiful and open city Shenzhen, Guangdong Province, P. R. China. The company is formerly known as Zhuzhou Fei-hong Industrial Co., Ltd., Shenzhen Branch, which was established in 2004, and successfully rooted in LED industry in Shenzhen in 2009. Shenzhen Fier Lighting Co., Ltd., is a professional manufacturer who specializes in R&D, producing and exporting indoor and outdoor high power LED lamps. The products are produced with CE & RoHS approval which include downlights, flood lights, ceiling lights, spotlights, light bulbs, gem lights, wall lights, wall washers, tunnel lights, high bay lights, market lights and so on. All the light sources have brands in CREE, SSC, LUXEON and EDISON.
The main advantages of FIER LED lights are energy-saving, environmentally-friendly, high-efficient, long lifespan, practicability and unique radiator design. Our company management system is according to ISO9001: 2008. We have also developed some die-casting LED lamps which integrated with PC and aluminum materials. All the products go through the strict quality controlling procedures and aging test process to make sure all the lamps can work well.
The great advantage of FIER products is their various types which allows to be used at various occasions, such as hotels, stores, villas, museums, business centers, etc. With excellent quality, reasonable price, rapid delivery time and all-round after-sale services, FIER lamps have been well-accepted all over the world.
We always service our customers with the guiding policy as below: "Customer Satisfaction, Customer Reliance". FIER is your top choice about lighting business and hope we will set up business relationship in the near future on the basis of mutual benefit. And the world-wide customers are warmly welcomed to contact and visit us.
