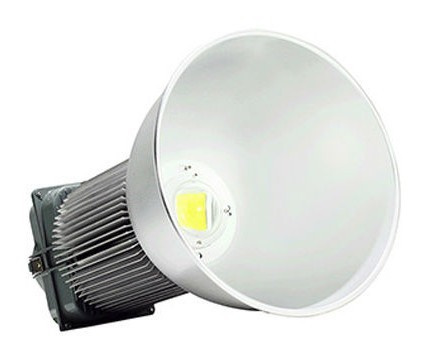

LED high bay light:
Features of 60W LED high bay light
1. High light efficiency imported LED chip, the luminous flux could reach 100LM/W.
2. Special design for the heat cooler, which connects well with the electrical cove, so that transfer heat effectively, to ensure the life span of the products.
3. It could save 70% energy than the traditional light.
4. It can stand hard weather, whose waterproof level is IP65 and the insulation is class 1.
5. The efficiency for the driver of the power is 91%, make the LED working more steady.
6. It's friendly to environment protection, no Pb and Hg.
Application:
Apply to workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places of lighting required. Item Size
Size:
|
Model |
GH-HB60W-A01 |
|
Input Voltage |
AC85V-265V |
|
Freqency Range |
50Hz--60Hz |
|
Tatal Harmonic Distortion |
≤9% |
|
Power Factor |
0.98 |
|
Power Efficiency |
>89% |
|
LED Working Voltage |
DC30~36V |
|
LED Quantity |
1Pc |
|
LED Consumption |
60W |
|
Total Power Consumption |
66W |
|
LED Brand |
Bridgelux |
|
Average illuminance |
(height)5M |
145.4 lux |
|
(height)6M |
101 lux |
|
(height)8M |
56.79 lux |
|
Illuminance Area |
(height)5M |
¢3.07M Round area |
|
(height)6M |
¢3.68M Round area |
|
(height)8M |
¢4.91M Round area |
|
Color Temperature |
WW |
3000k--3500k |
|
NW |
4000k--4500k |
|
PW |
5500k--6500k |
|
Total Lumen output |
4550 lm |
|
Color Rendering Index |
Ra>75 |
|
Light Distribution |
Symmetry and round |
|
Light Design |
LED+reflector |
|
Junction Temperature |
≤80ºC |
|
Working Temperature |
"-40ºC~+55ºC |
|
Storage Temperature |
"-25ºC~+65ºC 25ºC optimum |
|
IP Rate |
IP54 |
|
Working life-span |
50000Hrs |
|
Net Weight |
6.1 kg/pc |
|
Power line |
1 mm2 3 core cable |
|
Connect wire |
L (Brown) |
|
N (Blue ) |
|
G (Yellow and Green) |
|
Color of lamp shell |
Silver |
|
The size of the lamp head package size |
270(mm) X 270(mm) X 350(mm) |
|
The size of the reflector package |
485(mm) X 485(mm) X 360(mm) |
|
The weight of the lamp head after packing |
7 Kg |
|
The weight of the reflector after packing |
2.38 Kg |
