Application
Environment : working temperature -15C~+40C
humidity ≤50%
lifetime:more than 5 years
Replace: can directly replace lights with other sources,such as Incandescent lamp,Energy-saving lamp,Promise lamp,Mercury lamp,Sodium lamp,metal halida lamp.
.Such as compare with metal halida in the same angle:180W can driectly replace 400W metal halida lamp.
Site: Indoor workshop.

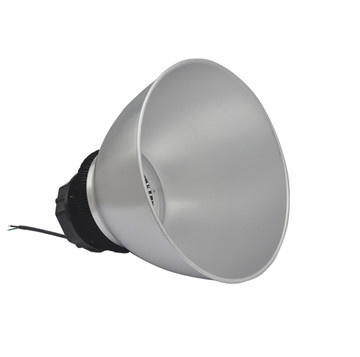

Outline:
Reflection Cup: Spinning with 1070 aluminum plate with 1.5mm
Sunflower Radiator:6063-T5 extrusion section,turning technology.
Power Supply Box:Die-casting aluminum
Light Source Holder:Injection molding with porcelain PC of 94V0 fireproof level.
Hemispherical Lampshade:Injection molding with milky PC materials.
Chip:International famous Bridgelux COB 80W/100W/120W/150W/180W/200W/230W/260W.
Power Supply: Isolation output
Main Parameter:
Model No. | DQ-HB-120 |
Input Voltage | AC85-265V |
Frequency | 50HZ-60HZ |
Total Harmonic distortion | ≤20% |
Power factor | >0.90 |
LED quantity | 1pcs |
LED consumption | 120W |
LED luminous efficiency | 90-100lm/W |
Led Luminous | Warm white | 10800LM |
Natural white | 12000LM |
Pure white | 10800LM |
Color temperature | Warm white | 2700-3500K |
Natural white | 4000-4300K |
Pure white | 5000-6500K |
Color rendering index | WW | Ra:60-80 |
N W&P W | Ra:70-85 |
Light design | Reflection cup |
LED junction temperature | ≤ 75ºC |
Working temperature | -15ºC--+40ºC |
Storage temperature | -25ºC--+65ºC |
IP grade | IP40 |
Certificate | CE |
Beam angle | 120ºC |
Install height(from optical to ground) M | 7.5-8.5M |
Light spacing (Maximum) M | 7x7M |
Shell color | Silver |
Warranty | 5 years |
Characteristics:
1)Using high power LED light source, higher luminous efficiency, more energy saving.
2)Millky Hemispherical lamp shade fully spread light first,make the light soft,then reflection cup distributes the light secondary.
3)Fix the light source on the bottom of reflection cup, effectively use the reflective cup as a radiator, lower the cost, reduce the volume and weight of the radiator,too.
