LED Grille Down Light with 9W (CPS-TD-D9W-24)

LED Grille Down Light with 9W (CPS-TD-D9W-24)
Price: US $ 6-30/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: T/T,D/P,Western Union

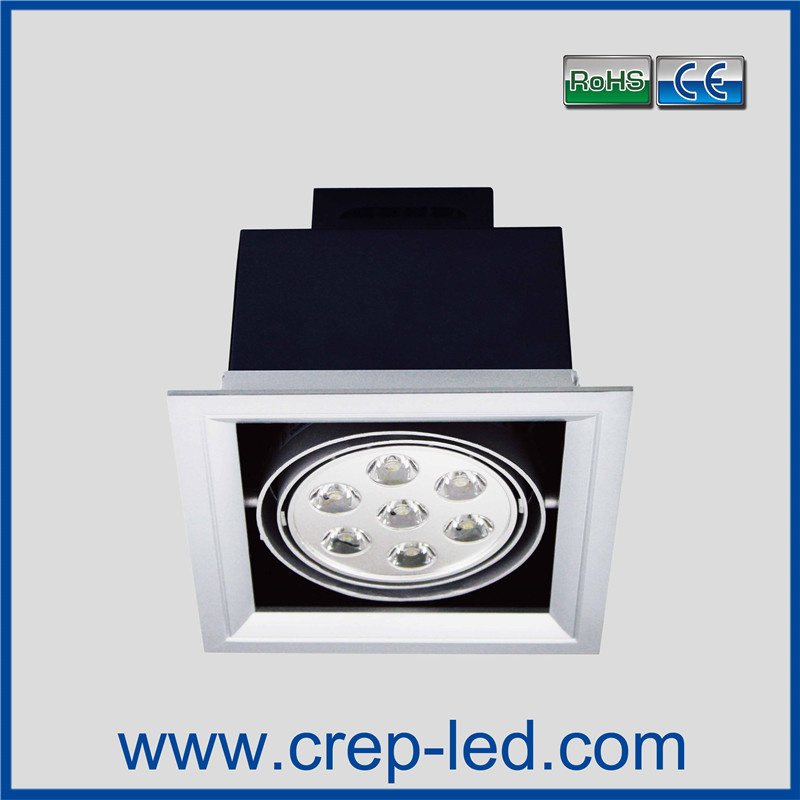

9W Grill LED down light
Power: 9W
Input voltage: AC100-240V 50/60Hz
Color Temperature: 2700K~6500K
Color Rendering ≥ 75
Luminous Flux: 630Lm± 8%
Design Lifespan: ≥ 40000hrs
Product Size: 145*145*130mm
Dimension: 120*120mm
Packing: 525*465*515mm(12PCS/carton)

4W, 6W, 7W, 9W, 11W, 12W, 17W, 18W, 22W, 25W, 32W, 34W, 43W grill LED downlight lamps available.
Application of LED down lights: Widely used in Commercial and Residential places. For example, Offices, Hotels, conference rooms, corridors, restaurants, shopping malls, supermarkets, flagship stores, showrooms, night clubs, factories, and other commercial, residential and public facilities.

LED down light is a high end interior lighting, adopting ultra-bright high power LEDs as light sources. Light beam goes through high transmittance light guide plate to give even lighting effect. It is beautiful and eco-friendly, easy installation, low consumption, high luminous efficiency. The down light not only gives better lighting effect, but also brings beauty to people with elegant and Luxury design.

Notice:
1. Indoor use only, non-waterproof.
2. Input voltage: AC100-240V
3. Working temperature: -30- 50 degree.
4. Working humidity: 10%-95%
5. Turn off the main power supply before installation.
6. Directly replace the traditional downlight in appropriate perforate dimension.
7. Do not touch the LED power supply when power on.
8. Do not take the LED downlight and driver apart without permission.
Model NO. Size Perforate size Material Input voltage Power LED quantity LED type LED brand Light efficiency Luminious flux Ra Power factor
CPS-TD-D4W-22 135*135*130mm 110*110mm Aluminum alloy + lens AC100-240V 4W 3LEDs high power 1W Epistar 95lm/W 238lm± 8% > 75 > 0.95
CPS-TD-D6W-23 145*145*130mm 120*120mm Aluminum alloy + lens AC100-240V 6W 5LEDs high power 1W Epistar 95lm/W 385lm± 8% > 75 > 0.95
CPS-TD-D9W-24 145*145*130mm 120*120mm Aluminum alloy + lens AC100-240V 9W 7LEDs high power 1W Epistar 95lm/W 567lm± 8% > 75 > 0.95
CPS-TD-D11W-25 205*205*130mm 165*165mm Aluminum alloy + lens AC100-240V 11W 9LEDs high power 1W Epistar 95lm/W 729lm± 8% > 75 > 0.95
CPS-TD-D7W-26 243*135*130mm 215*110mm Aluminum alloy + lens AC100-240V 7W 6LEDs high power 1W Epistar 95lm/W 487lm± 8% > 75 > 0.95
CPS-TD-D12W-27 250*145*130mm 225*120mm Aluminum alloy + lens AC100-240V 12W 10LEDs high power 1W Epistar 95lm/W 878lm± 8% > 75 > 0.95
CPS-TD-D17W-28 250*145*130mm 225*120mm Aluminum alloy + lens AC100-240V 17W 14LEDs high power 1W Epistar 95lm/W 1089lm± 8% > 75 > 0.95
CPS-TD-D22W-29 390*205*130mm 350*165mm Aluminum alloy + lens AC100-240V 22W 18LEDs high power 1W Epistar 95lm/W 1394lm± 8% > 75 > 0.95
CPS-TD-D11W-30 350*135*130mm 320*110mm Aluminum alloy + lens AC100-240V 11W 9LEDs high power 1W Epistar 95lm/W 655lm± 8% > 75 > 0.95
CPS-TD-D18W-31 355*145*130mm 330*120mm Aluminum alloy + lens AC100-240V 18W 15LEDs high power 1W Epistar 95lm/W 1162lm± 8% > 75 > 0.95
CPS-TD-D25W-32 355*145*130mm 330*120mm Aluminum alloy + lens AC100-240V 25W 21LEDs high power 1W Epistar 95lm/W 1623lm± 8% > 75 > 0.95
CPS-TD-D32W-33 520*205*130mm 480*165mm Aluminum alloy + lens AC100-240V 32W 27LEDs high power 1W Epistar 95lm/W 2065lm± 8% > 75 > 0.95
CPS-TD-D34W-34 690*205*130mm 630*165mm Aluminum alloy + lens AC100-240V 34W 28LEDs high power 1W Epistar 95lm/W 2450lm± 8% > 75 > 0.95
CPS-TD-D43W-35 690*205*130mm 630*165mm Aluminum alloy + lens AC100-240V 43W 36LEDs high power 1W Epistar 95lm/W 3100lm± 8% > 75 > 0.95

Prod Model: CPS-TD-D9W-24
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: 9W
LED Type: High Power 1W
LED Quantity: 7LEDs
Materials: Aluminium and Lens
Lame Shape: Rectangle/Square
Color Available: Ww, W, Cw
Certificate: CE, FCC, RoHS
Warranty: 3 Years
Light Source: LED
Installation: Embedded
Material: Alloy
Application: Market
Lamp Installation: Plug Lamp
Source Number: Single Plug
