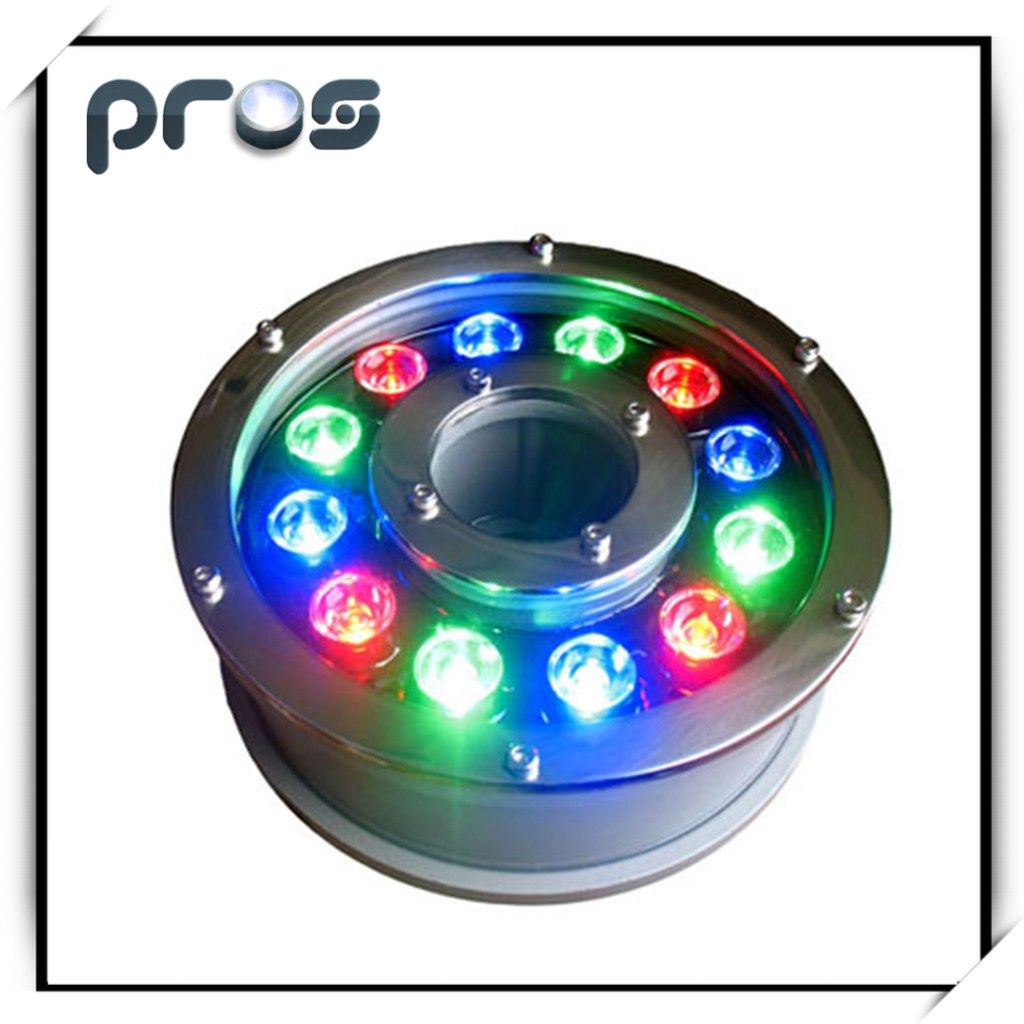

Main Features
1. Adopt high aluminum of thermal conductivity as material, light and firm, possess high mechanical strength;
2. Integrate advanced permeability technology into the lamp, good heat dissipation;
3. Anodized surface, good anti-corrosion capability;
4. Adopt super bright high power led;
5. Cold light source design, soft light, good mono-chromaticity, and high light efficiency;
6. Safe and reliable, environmentally friendly, long lifespan of 50, 000 hrs;
Model: |
PL-UW-1W9-F |
PL-UW-1W12-F |
Size A |
Φ160mm |
Φ180mm |
Φ180mm |
Size B |
Φ40mm |
Φ50mm |
Φ50mm |
voltage: |
12V AC/DC |
Power: |
9W |
12W |
Flux: |
810lm |
1080lm |
LED qty.: |
9 PCS |
12PCS |
Color temperature: |
2700K-3500K ( Warm White ) |
4000K-4500K ( Natural White ) |
6000K-6500K ( White ) |
Color: |
Red, Green, Blue, Yellow, White, Warm White, RGB |
Beam angle: |
15°,30°,45°,60° |
Protection rank: |
IP68 |
Material: |
Tempered glass+Stainless steel |
Work efficiency: |
>85% |
Life span: |
50,000hrs |
Ambient temperature: |
-40 ~ +55°C |
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range:
1. LED Street Light
2. LED Bulb & Spotlight
3. LED Downlight
4. LED Panel
5. LED WallWasher & Floodlights
6. LED Explosion proof Light
7. LED High bay light
8. LED Tube T8
9. OEM & ODM Projects
