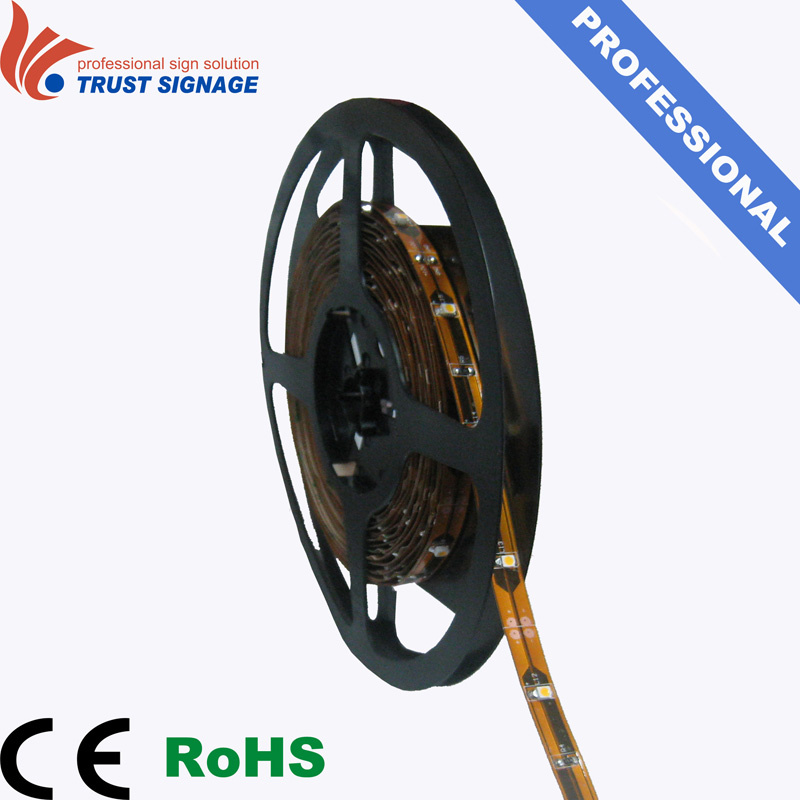

LED Flexible Strip Light
1. Light source: SMD3528 & SMD5050 & SMD335
2. Emitting color: Red, Yellow, Blue, Green, White, Warm White, RGB
3. LED Quantity: 30 LEDs/m, 60 LEDs/m, 90 LEDs/m, 120 LEDs/m
4. PCB Width: 5mm/8mm/6MM/10mm
5. Voltage: DC12V, DC24V
6. Non-waterproof: IP33 Waterproof: IP68 Epoxy covering IP: IP65
7. Beam angle: 120 degrees
8. Length: 5m/roll
9. Certification: CE & RoHS
LED Strip Feature:
1. Even color combination, lively effect, high brightness, low luminance decay
2. Sheapeable and flexible, installation and fix flexible
3. DC12V low power driven, high securiy
4. Low power consumption, long life, free maintanance
LED Strip Application:
1. Market and Cabinet for corner and outline decoration,
2. Car interior and exterior lights,
3. Architectural decorative, Auditorium walkway lighting
4. Channel letter lighting using for stores, restaurants, bars
5. Illumination lighting using walkway, canopy, stairway accent lighting, amusement park,
6. Auditorium walkway lighting, outdoor illuminated signs and advertisements
7. Archway, canopy and bridge edge lighting
Professional in supplying waterproof, non-waterproof and epoxy covering LED strip. Flexible LED Strip Light 3528 and Flexible LED Strip 5050 in single color, RGB Flexible LED Strip Light with remote controller.
SMD5050 SINGLE COLOR |
MODEL |
|
TS-LSA-SMD5050-20 |
|
TS-LSA-SMD5050-30 |
TS-LSA-SMD5050-60 |
LED CHIP |
SMD5050 |
LED QUANTITY |
20pcs/m |
30pcs/m |
60pcs/m |
STRIP WIDTH |
10mm |
STRIP LENGTH |
5m/roll |
PCB COLOR |
Yellow/White |
VOLTAGE |
DC12V/DC24V |
POWER |
7.2w/m |
7.2w/m |
14.4w/m |
IP LEVEL |
IP33 (non-waterproof) |
IP65 (Epoxy Waterproof/Silicone-crust Waterproof) |
IP68 (Glue Sealed Waterproof) |
COLOR |
White (W), Warm White(WW), Snow White (SW), Red(R), Green(G), Blue(B), Yellow(Y), Orange(O), Pink(PK), Purple(PL) |
LUMEN (LM/M) |
W(300), WW(300), SW(300), R(90), G(160), B(120), Y(90), O(90), PK(210), PL(65) |
W(450), WW(450), SW(450), R(135), G(240), B(180), Y(135), O(135), PK(315), PL(97.5) |
W(900), WW(900), SW(900), R(270), G(480), B(360), Y(270), O(270), PK(630), PL(290) |
Trust Signage Co., Ltd. (TRUST SIGNAGE) is professional in providing sign-product-purchase solutions for many years. On the strength of our experience and service spirit, we aim to help our customers to receive reliable products and service from us.
Quality is our heart. TRUST SIGNAGE has built a quality control system to supervise every process of each order including production, package and port loading.
Service is our life. TRUST SIGNAGE thinks for customers. We provide not only quality-stable sign products, but also sign solutions according to customers' requirements including competitive price, reasonable loading design, excellent shipment arrangement, and flexible service etc.
TRUST SIGNAGE is looking for sincere cooperation based on trust which is our soul. If you have any request of sign products, please contact TRUST SIGNAGE.
