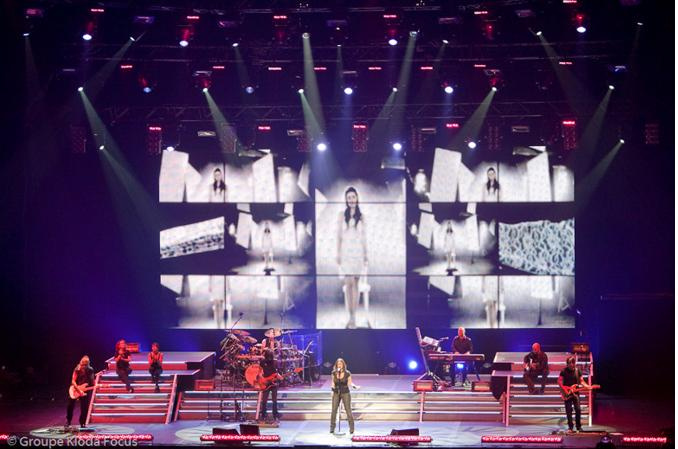

Our strip curtain LED display, It has the following features:
1. Flexible design and Easy to insall
2. Super light
3. High brightness
4. High refresh rate
5. Low power consumption
| No | Parameter | Data |
| 1 | Display brightness | 4,000 CD/sqm |
| 2 | Brightness adjustment | 256 grade automatic, 8 grade manual |
| 3 | Drive Mode | Static latching |
| 4 | View Angle | 150 degrees(left and right view angle) |
| 5 | View Distance | 10-200 meters |
| 6 | Grey Scale | 256 grades |
| 7 | Display Colors | 16Mcolor |
| 8 | LED | SMD5050 |
| 9 | Refresh rate | 400HZ(Guarantee that the picture will not tingle when the pick up camera is kinescoping) |
| 10 | Control Mode | To be synchronized with computer monitor |
| 11 | Data Transmission | Parallel RS422 mode |
| 12 | Screen Lifespan | >100,000 hours |
| 13 | Blind Spot Rate | ≤0.0003 |
| 14 | Operating Voltage | AC100V±240V 50-60HZ |
| 15 | Screen Body Power Consumption | Max: 600w/MP2P,Average: 300w/MP2P |
| 16 | Color Temperature | 6,500K±500 |
| 17 | Screen body weight | 6.5KG/ cabinet |
| 18 | Control Distance | 120 meters(without relay)(optical fiber transmission 500M-10,000M) |
| 19 | System Working Environment Temperature | -20-+60deg. |
| 20 | System Working environment humidity | 10%—95%RH |
| 21 | System Operating Platform | WINDOWS(WIN98,WIN2000, WIN XP)friendly interface, Keep the interface for the secondary development |
