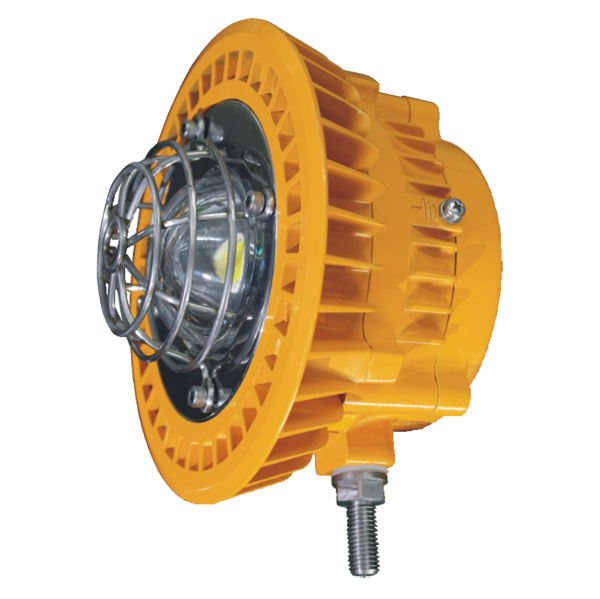

LED Explosion Proof Spotlight
1. LED Explosion Proof Light 20W/25W/35W
2. LED Explosion Proof Light with CE&RoHS approval. Bridgelux LED chip, high quality with 3 years warranty.
3. Patented design for heat dissipation to ensure life of light source up to 50000 hours.
4. Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.
5. Die casting aluminum housing, with anti-static and anti-corrosion coating, high explosion-proof degree of flameproof type; Dust-proof, waterproof; Lens made of bulletproof PC which is thermal resistance, corrosion resistance, high light transmission.
6. Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.
7. Beautiful appearance, several types of installation methods available.
6. Smaller package size: Save freight by 30%
Light Source: LED
Led Chip: Bridgelux
Driver: Moso/Meanwell TUV certified
Protection grade: IP67
Explosion-proof Grade: Ex dIICT6
Surface Treatment: Aluminium Die Casting+Electrophoresis+anti-corrosion paint
Apply to mine field, workshops, military establishments, gas station and places where have inflammable and explosive materials
LED Explosion Proof Spotlight
1 Luminous body of very high intensity, large viewing angle, good quality and stability
2 Base made of aluminum. Major reduction in power costs. No RF interference and no buzzing noise.
3 Adoption of high quality aluminum alloy, aluminum substrate as heat dispersion material guarantee the stability and high efficiency of LED, and effectively reduce its brightness degradation in the process of application
4 Energy-saving and environmental conservation, long lifespan
5 Solid-state, high shock resistant, strong packaging, convenient to transportation
LED Explosion Proof Light Primary Competitive Advantages
Green Product, Guarantee/Warranty International Approvals Military Specifications Price, Product Features, Product Performance, On time Prompt Delivery, Quality, Approvals, Reputation, Service, Small Orders Accepted,
|
Parameter |
Value |
|
Power Consumption |
15W/20W/25W/30W |
|
Input Voltage |
220V AC(applied for 95-265V)/ 24V DC |
|
Frequency |
50Hz(applied for 47-63 Hz) |
|
Beam Angle |
120° or 120° in horizontal 60° in vertical |
|
Explosion-proof Grade |
Ex d I Mb |
|
Corrosion-proof Grade |
WF2 |
|
IP Grade |
IP66 |
|
Power Factor |
> 0.90 |
|
Total Harmonic Current |
< 20% |
|
Lamp Efficiency(%) |
≥ 90% |
|
Color Temperature(K) |
Warm white: 2700-4000K; Pure white: 5000-6500K |
|
Junction Temperature(TJ)) |
< 55° C |
|
Color Rendering Index(CRI) |
Ra> 70 |
|
Light Effect |
> 80lm/W |
|
Ambient Environment |
Temperature: -30° C_ 55° C; Humidity: 10-90%RH(25° C) |
|
Storage Temperature |
-40° C-60° C |
|
Lifespan |
> 50000Hs |
|
Material |
Aluminum Alloy |
|
Cable Entry |
Φ 8~Φ 14mm |
|
Threaded Fitting |
G3/4" |
|
Installation Height |
2~4m |
|
Net Weight |
1.2Kg |
|
Certificate |
CE, China National Explosion-proof Certificate |
