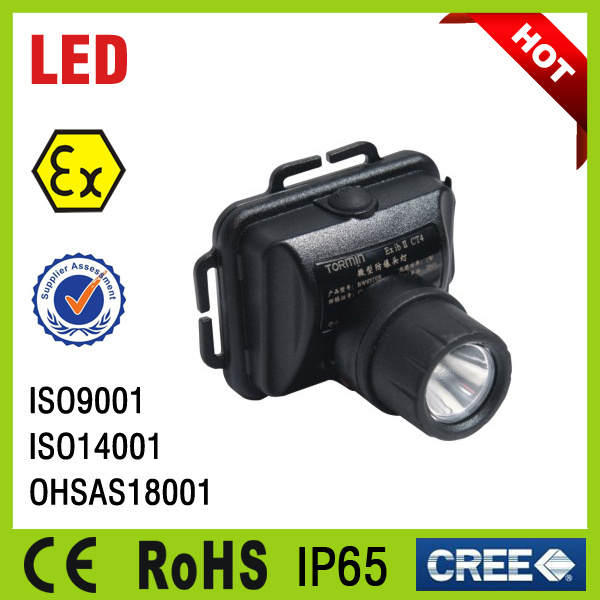

1. CREE LED IP65
2. Ex ib II C T4
3. Highlight, lowlight, red strobe light
4. Rechargeable lithium battery
Application:
It is applicable to be used as fixed safety helmet head light in potentially explosive gas, vapour and mist places. It is the ideal lighting solution for workers in confined spaces and hazardous areas, needing a ' hands free ' lamp, which will direct a beam of light wherever they look.
Characteristics of Performance:
1. It not only can be fixed onto the helmet with the screws provided, but also can be fixed onto the helmet or head by the elastic headband. The head of the light is adjustable within 90° , operator can rotate the head of light to the desired direction.
2. The red strobe light design to suit numerous application where indication is critical during emergency. Press the button and switch to the red strobe light mode, It can let others identify the position of the worker.
3. This product has battery status indication and low battery warning function, Operator can check the battery status at any time. Towards the end of discharge, the beam flashes off repeatedly, warning recharging is required.
4. Adopts CREE LED light source with high light efficacy and 100, 000 hours service life. Use of the latest safety increased lithium-ion battery technology improves reliability and environment friendly.
5. The charger is controlled by intelligent chip, with various protection.
Specification | unit | BW6310A | BW6310B |
Rated voltage | V | 3.7 | 3.7 |
Rated capacity | Ah | 1.4 | 1.4 |
Light source | Light Output | High | lm | 148 | 83 |
Low | 83 | 55 |
flux(1m) | High | Lux | ≥1750 | ≥980 |
Low | ≥950 | ≥550 |
Average service life | h | 100,000 | 100,000 |
Runtime | High | h | 4 | 8 |
Low | 8 | 16 |
Effective Beam Distance | m | 130 | 100 |
Recharge Time | h | 4 | 4 |
Battery Recharge Cycle |
| Nearly 1000 | Nearly 1000 |
Dimension | mm | 50 X 65 X 60 | 50 X 65 X 60 |
Net weight | 9 | 85 | 85 |
Q:What certification do you have for your LED Explosion proof lights?
A:We have ATEX, CE,EMC,LVD,RoHS, China Explosion proof approval for all of our LED explosion proof lights.
Q:What places do your explosion proof lights applicable to?
A:It is ideal to be used as floodlight or spotlight at the oilfield,metallurgy,refinery,gas station,oil rig,petroleum,petrochemistry
and anywhere a highly durable and efficient light source is needed that can withstand exposure to high stress environments.
Q:Can you introduce briefly for your LED Explosion proof lights? Are they unique, different from other suppliers'?
A: Tormin's LED explosion proof lights are designed and patented independently by Zhejiang Tormin electrical Co.,Ltd.
We ensure quality by using Bridgelux LED chip, aluminium housing and tempered glass. We ensure safety by strict testing and inspection.
Q:Is it changed the colour of housing as require?
A:It can be made into other colour like Gray.
