Home LED Light Products LED Display (TP-D12-0P20F01)

LED Display (TP-D12-0P20F01)

LED Display (TP-D12-0P20F01)
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Parameter:

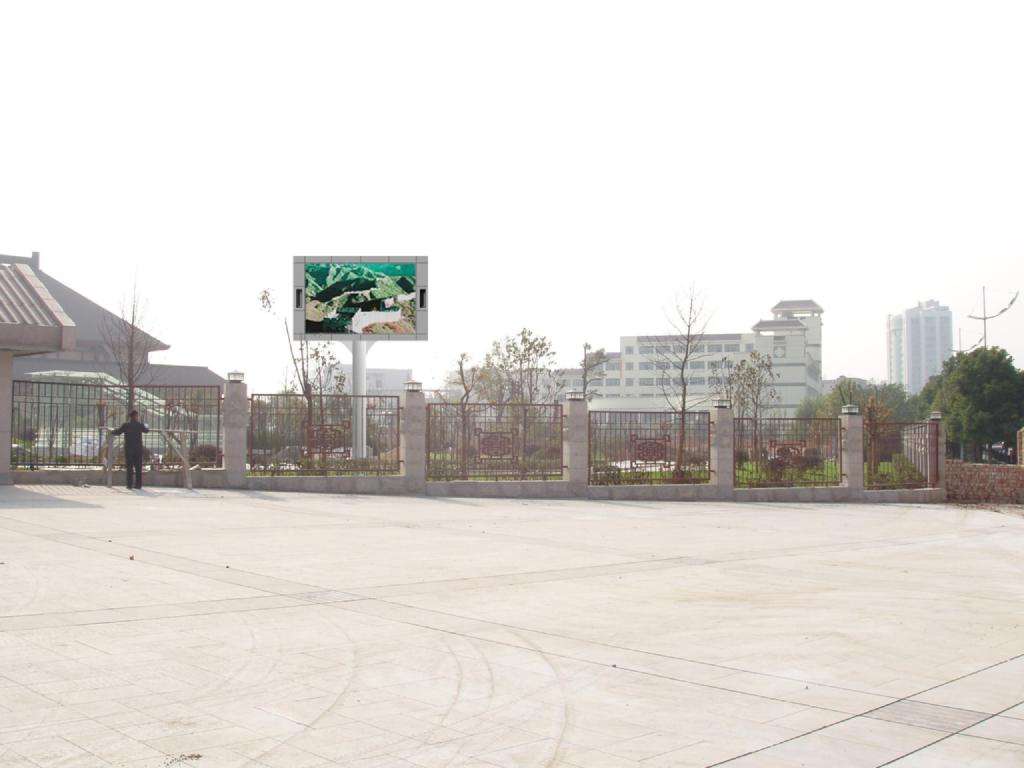

1. Product Name: Outdoor full color LED Display
2. Pixel Pitch: 20mm
3. Pixel Density: 2, 500dots/m2
4. Module Resolution: 16X8 dots
5. Module Size: 320X160 mm
6. Pixel Configuration: 2R1G1B
7. Driving Method: 1/4
8. Best View Distance: >18M
9. White Balance Brightness: >6500nit
10. Life Span: >100, 000hours
11. Power Supply: 110V/220V AC 50Hz
12. Gray Scale: 16384grades
13. Brightness Control: 256 grade
14. Control Mode: Synchronization with PC
15. Input Signal Format: VGA, DVI, RGBHV, PbPr(HDTV), Composite, S-Video, TV

Features:
1. High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3. To pictures and character, have clear, exquisite and real display effect
4. Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5. Can repair each LED lamps, so the cost of maintain is lower, and easy to repair.


Application:
Apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment.
Prod Model: TP-D12-0P20F01
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 2R, 1G, 1B
Pixel Pitch: 20mm
Display Function: Image & Text Display
Scanning Mode: 1/4 Scan
Certification: CE
Pixel Density: 2500/M2
Average Power Consumption: 850W/M2
TOP Semiconductor Lighting Co., Ltd, Established in 2006, is a manufacturer of LED( Lighting-emitting diode) lighting products that integrate design, production, distribution and service and mainly in production of LED bulb, LED spotlight, LED downlight, LED ceiling light, LED panel light, LED strip light, LED light bar, LED tube, LED wallwasher light, LED street light, LED industry light, LED flood light, LED tunnel light, LED work light, LED track light, LED grill light and LED display ect.

The company has 3600 square meters for production area, about 400 staffs, in which there are 15 electronic engineers, 5 construction engineers, 3 quality engineers.

It has international advanced production equipment, such as automatic solid crystal machine, reflow soldering waving machine, Automatic spectrophotometric color separation machine, Panasert, Fully automatic SMT production machine ect.

It has founded the industry advanced performance test lab, high low temperature test chamber, lighting surge test chamber, conduction test lab, life time and reliability test lab. The R&D Center has 36 testing equipments for testing the power supplier's performance.

With strong technology research and development level, advanced production equipment, complete product inspection equipment, it not only has advantage in production capacity, but also has strong guarantee in quality and after-sale service.

Since founded, the company operates strictly in accordance with ISO9001: 2005 quality assurance system, having strict quality inspection for Every process from raw material, technological design to production, integrating delicacy management into every process of production, and making sure that the quality is in the leading position.

The products have passed CE, RoHS, FCC and CCC certification and sell well to USA, France, Italy, Germany, Poland, Canada, Netherlands, Venezuela, Singapore, Japan, Taiwan, Taiwan ect.

Regarding " Innovation, Integrity, Aggressive, Win-Win" as the core value and insisting the principle of High quality and Perfect products, the company has offered approving products and top-ranking after-sale service to her customers wholeheartedly. It is intended to look for more partners sincerely and create win-win with enterprising spirit and unremitting efforts.
