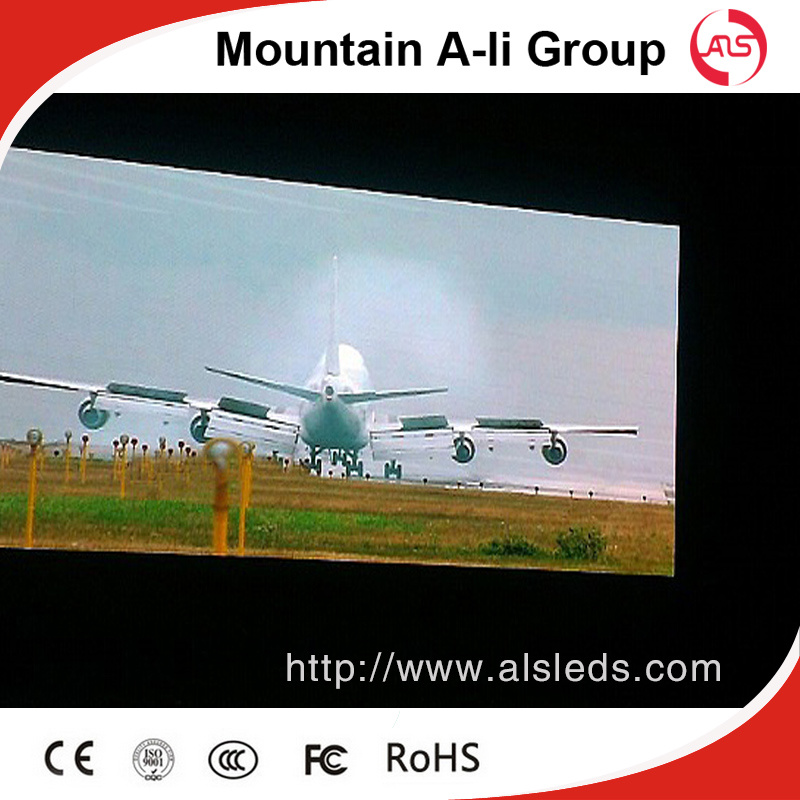

led display screen P4 indoor full color led panel display
features:
1. SMD3-IN-1 technology are used for indoor LED display
2. Wide view angle: 160 in horizotal and 120 in vertical
3. Special design and advanced SMT technology improves the heat dissipation
4. With high fresh rate controller, guarantee that no scan line when taking photos
5. Regular shape and special shape(such as curve, round) can be designed
6. Easy for assembling and connection with the connector added
7. High color uniformity and clear image can bring you a vivid audio visual effect
8. Both front access and rear access are available
Application Case:
Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoorstadium, and a variety of public facilities and etc.
Our service:
1. Inquiry response time: within 24hrs.
2. OEM&ODM: design and produce your customized requirements.
3. Provide distributors customized design and models we already have.
4. Protect your sales area, design idea and all your private information.
5. Top quality + reasonable price+ patient after-sales service.
6. Mountain A-Li Group can also offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and LED large screen full color display
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 3-12 working days
Technical Parameters
The specifications of module |
|
|
Item | Parameter |
|
Product model | P4-16S |
|
Module size | 256mm*128mm |
|
Pixel pitch | 4mm |
|
Pixel density | 62500dots/m2 |
|
Pixel configuration | smd 3in1 |
|
Module resolution | 64dots(W)*32dots(H) |
|
Maximum power consumption | 18W |
|
Module thickness | 13.07mm |
|
Module weight | 0.18kg |
|
Driving method | Constant current driving |
|
Scan mode | 1/16 scan |
|
Interface type | HUB75-A |
|
Brightness | ≥ 1500cd/m2 |
|
The specifications of cabinet |
|
|
Cabinet size | 512mm*512mm |
|
Module quantity | 8pcs |
|
Power supply | 5V/40A *2pcs |
|
Cabinet resolution | 128*128dots |
|
Optimal viewing distance | 4m ~ 20m |
|
Optimal viewing angle | 160°(W) 120°(H) |
|
System operating humility | 10%-95% |
|
The specifications of power supply |
|
|
Operating voltage | AC220V±10% |
|
Average power consumption | 85W/ m2 |
|
Maximum power consumption | ≤ 160W/ m2 |
|
Current | ≤20mA(single LED) |
|
The specifications of control system |
|
Computer | Pentium4 or above |
|
Operating system | WIN98/2000/NT/XP |
|
Control model | Synchronization control |
|
The specifications of the main technical parameters |
|
|
Driving device | Constant current driving |
|
Refresh rate | ≥400Hz |
|
Grey scale | RGB each 256 grade, can display 16.7M colors |
|
MTBF | ≥9000hours |
|
Power switch | Automatic switch |
|
Display mode | 800*600/1024*768 |
|
