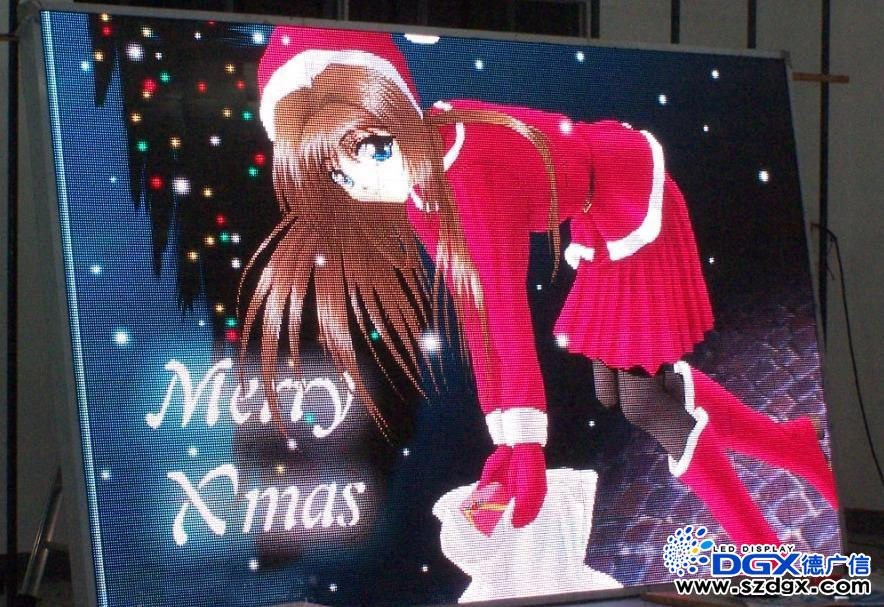

LED Display, P6 Indoor Fullcolor

LED Display, P6 Indoor Fullcolor
Price: US $ 500-1000/Square Meter
Trade Terms: FOB
Min Order: 10/Square Meter
Pay Type: T/T
P6 indoor full color LED display
Type: P6
Pitch: 6mm
Module size: 192*96mm
Pixels On Unit Cabinet: 96*96Pixels
Unit Cabinet Dimension: 576mm*576mm
Pixel Density: 27777dots/m²
Brightness: 2500CD/ m²
Visual Angle: 140
Volt: 110v-130v
Maximum Power Consumption: 1400w/m²
Average Power Consumption: 700w/m²
Refresh Rate: 180Hz
Life Time: 100000 hours
Communication Method: UTP: 120m, Optical Fiber: 2km
Best viewing distance: 6-42m
Unit Cabinet Weight: 30Kg
This display can be designed according to clients' specifications.
1 Module Size 192mm * 96mm
2 Module resolution 32*16 pixels
3 Density 27777 dot / M2
4 Power consumption ≤1000w/m2
5 Display Luminance ≥2000cd/m2(Full Black Light:≥1200cd/m2)
6 Drive Mode constant 1/ 8 scan
7 Viewing Angle Horizontal :140°,vertical : 140°
8 Viewing Distance From 5 meters to 60 meters
9 Grey Scale red\green\blue ,256 gray scales respectively
10 Color 16.7 million
11 Change frame ≥100HZ
12 Scanning rate 180HZ
13 Screen life 50000-80000 hours
14 Screen MTBF 100000 hours
15 Blind rate ≤0.0002
16 Working Voltage AC220V±10%,50Hz
17 Control distance ≤100 meter with cat5 cable(MMF 500 m,SMF 20 000m )
18 System working
Environment temperature
-55 °C~ +85°C
19 System working
environment Humidity
10%_95%RH
20 Continuous working time 24hours /day
21 Color temperature 6000K±500
22 Information source Many kinds of signal access ,can input TV signal ,DVD
signal ,Computer signal,internet and other
23 Control graphics
technology
Intellective control technology, test-itself technology ,correct
technology.
24 Multimedia control
technology
Abundant multimedia video picture ,characters manifest function ,and
switch quickly function
25 Maintenance Pixel by pixel
26 Configuration Screen composed of the cabinets ,cabinets composed of the modules
27 Maintenance manner Reservation position is 45cm
28 Switch manner Computer control switch automatically
29 Remote management (extra charge,optional,default is cable control)) Remote control display system and operate
Prod Model: P6
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch: 6mm
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/8 Scan
Application: Shopping Guide
Pixel Configuration: 1R,1G,1B
Pixel Pitch: 6mm
IP Rating: IP40
Certification: CE
Pixel Density: 27,777 dots / m²
Shenzhen DGX TECHNOLOGY Co., Ltd. is a high -tech enterprise which specialize in LED RD, design, production, assembly and so on, DGX locate in Bao'an district of Shenzhen China which is established in 2008 and has got 150 employees.

Our major products are full color LED outdoor/indoor display screen, LED tube light, LED indoor decorating lighting, scenery lighting and building lighting.

DGX 's culture soul is "morals, development and promise", all of our employees echnics management, quality and service are based on this culture soul.

DGX' s LED display and lighting products apply to night club, KTV, disco, theatre, building, plaza, square, TV station, all the lighting, entertainment, and advertisement field, we have got high reputation in these industry.

DGX apply Taiwan and CREE LED chip to ensure the vivid video effect and Technicolor, we have got many successful project, in every China province, Australia, EU, America, Africa and so on.

DGX is famous for high quality, fast response after service.

DGX develop all the business by international eyesight and developing policy to push LED industry in China and all the world, we are looking forward to wining the future with all global customers.
